Acetal Non-Locking Nose Retractable Plungers with Nylon Patch
Retractable Plungers

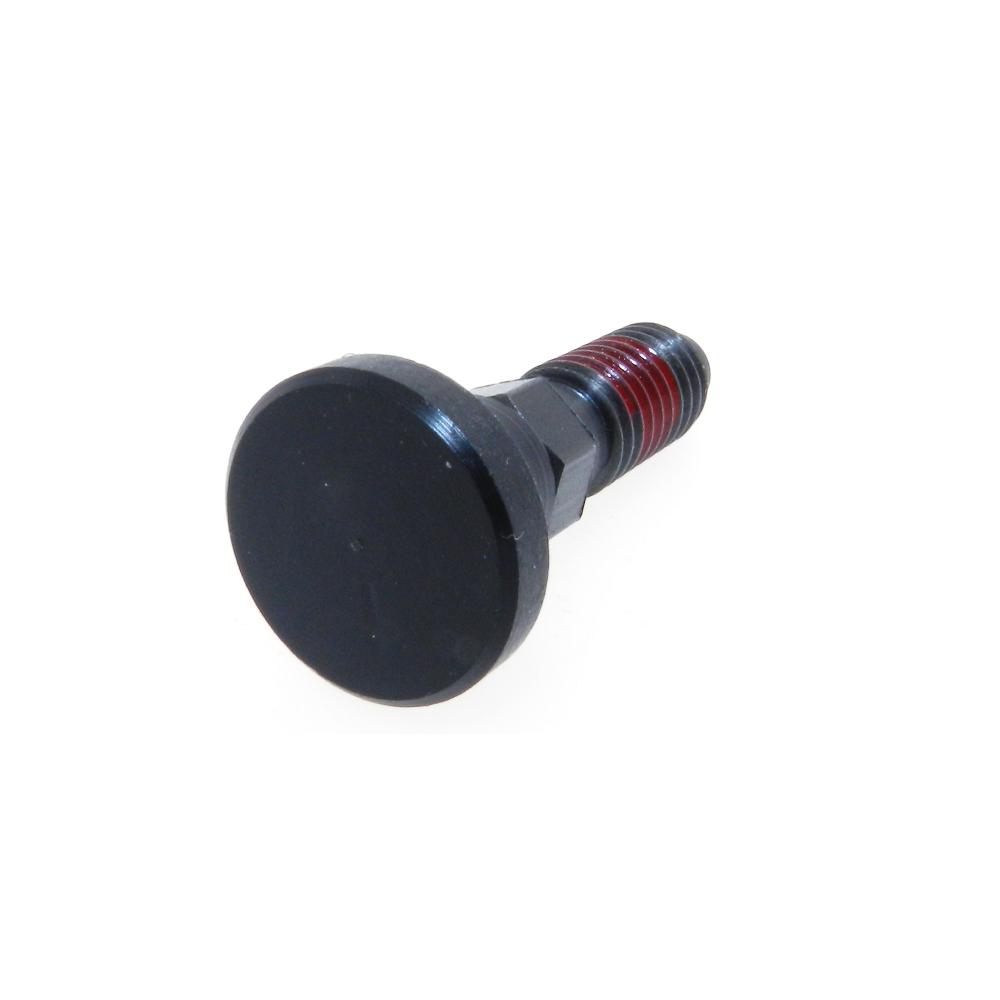

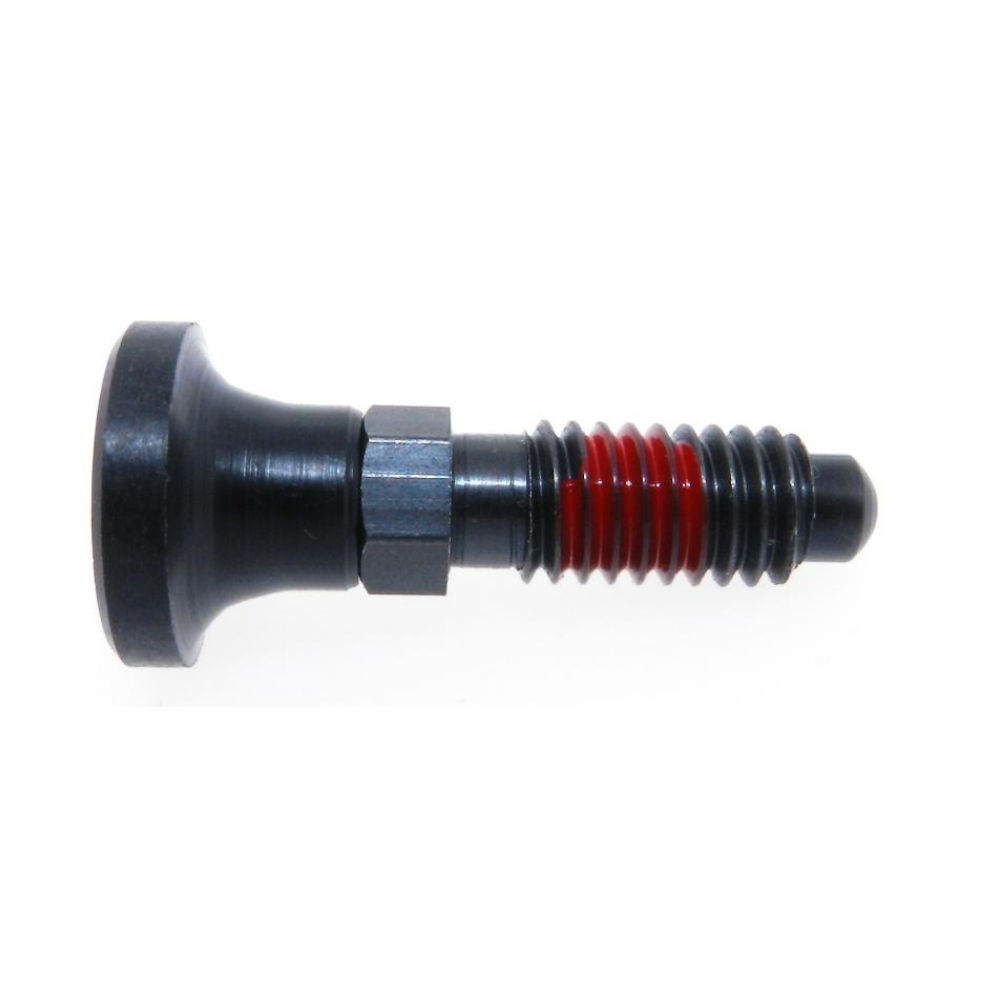

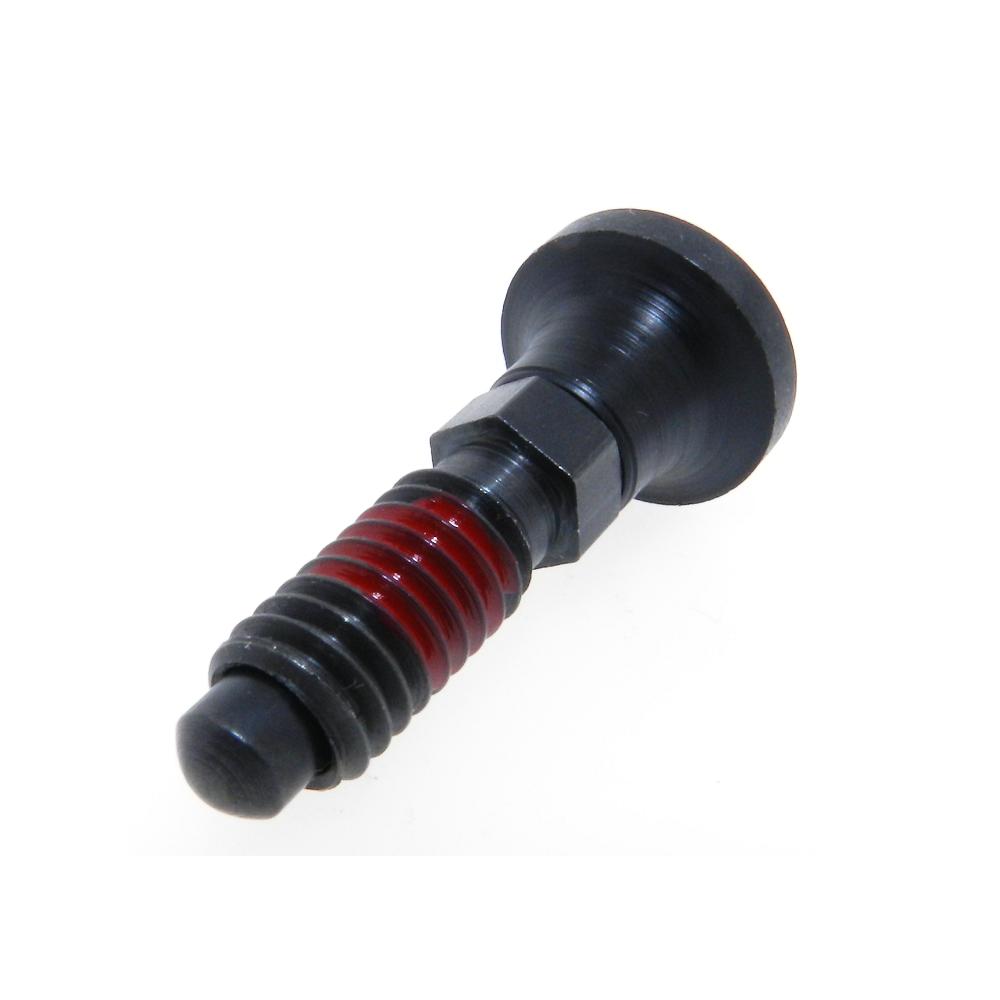

This retractable non-locking nose plunger from JBF National features a nylon thread coating to ensure ultimate thread locking, a radiused acetal nose for maximum hole engagement, and the highest quality zinc plated 12L15 steel or 303 stainless steel. This retractable plunger (also known as an indexing plunger) has been designed and tested to withstand side loading.
Item # |
Thread Size (A) |
Thread Length (C) |
Body Length (B) |
Nose Length (D) |
Nose Diameter (E) |
Drawings |
|---|---|---|---|---|---|---|
| 1LDN-1006 1LDN-1006/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (C) N/A 0.63 in | Body Length (B) N/A 0.97 in | Nose Length (D) N/A 0.13 in | Nose Diameter (E) N/A 0.16 in |
Drawings
 |
| 1LDN-1007 1LDN-1007/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (C) N/A 0.75 in | Body Length (B) N/A 1.40 in | Nose Length (D) N/A 0.18 in | Nose Diameter (E) N/A 0.25 in |
Drawings
|
| 1LDN-1008 1LDN-1008/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (C) N/A 1.00 in | Body Length (B) N/A 1.90 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.31 in |
Drawings
|
| 1LDN-1006SS 1LDN-1006SS/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (C) N/A 0.63 in | Body Length (B) N/A 0.97 in | Nose Length (D) N/A 0.13 in | Nose Diameter (E) N/A 0.16 in |
Drawings
|
| 1LDN-1007SS 1LDN-1007SS/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (C) N/A 0.75 in | Body Length (B) N/A 1.40 in | Nose Length (D) N/A 0.18 in | Nose Diameter (E) N/A 0.25 in |
Drawings
|
| 1LDN-1008SS 1LDN-1008SS/Asset/Derlin-Hand-Retractable-Plunger-Patch-1-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (C) N/A 1.00 in | Body Length (B) N/A 1.90 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.31 in |
Drawings
|
