Acetal Non-Locking Nose Retractable Plungers without Nylon Patch

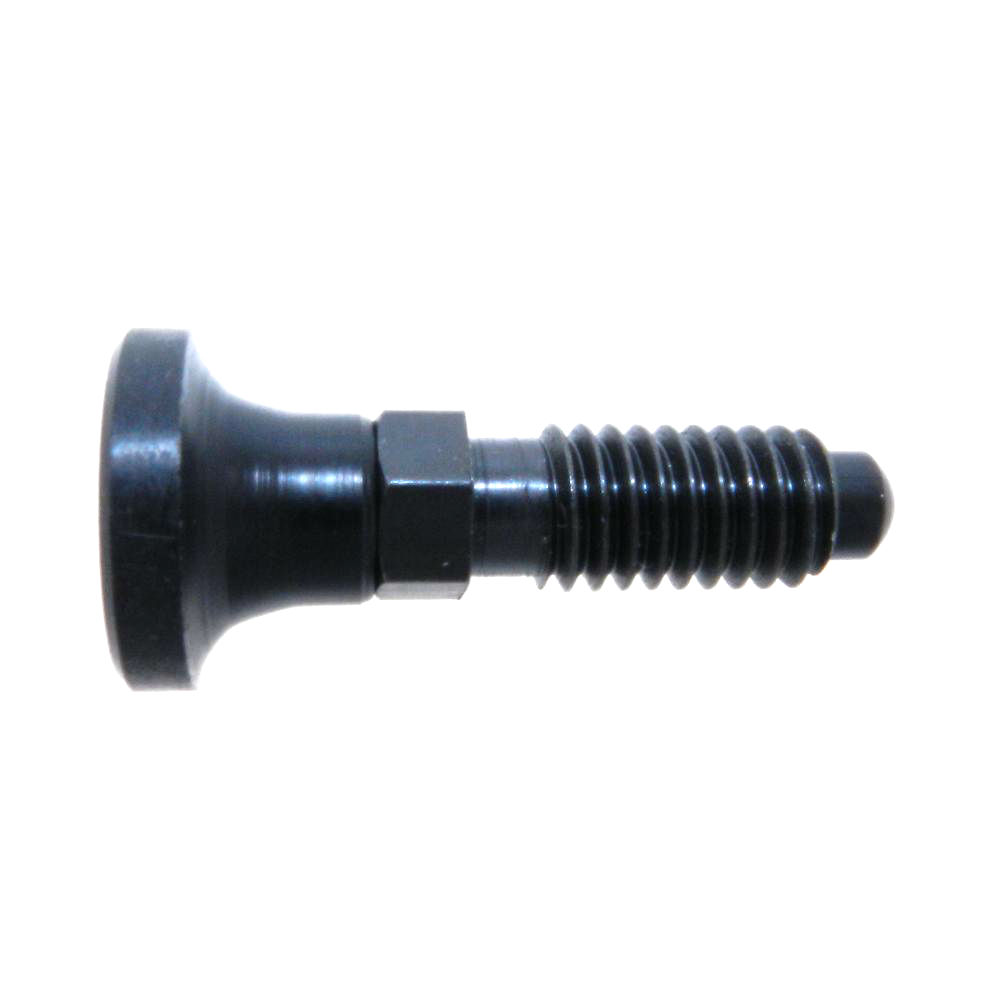

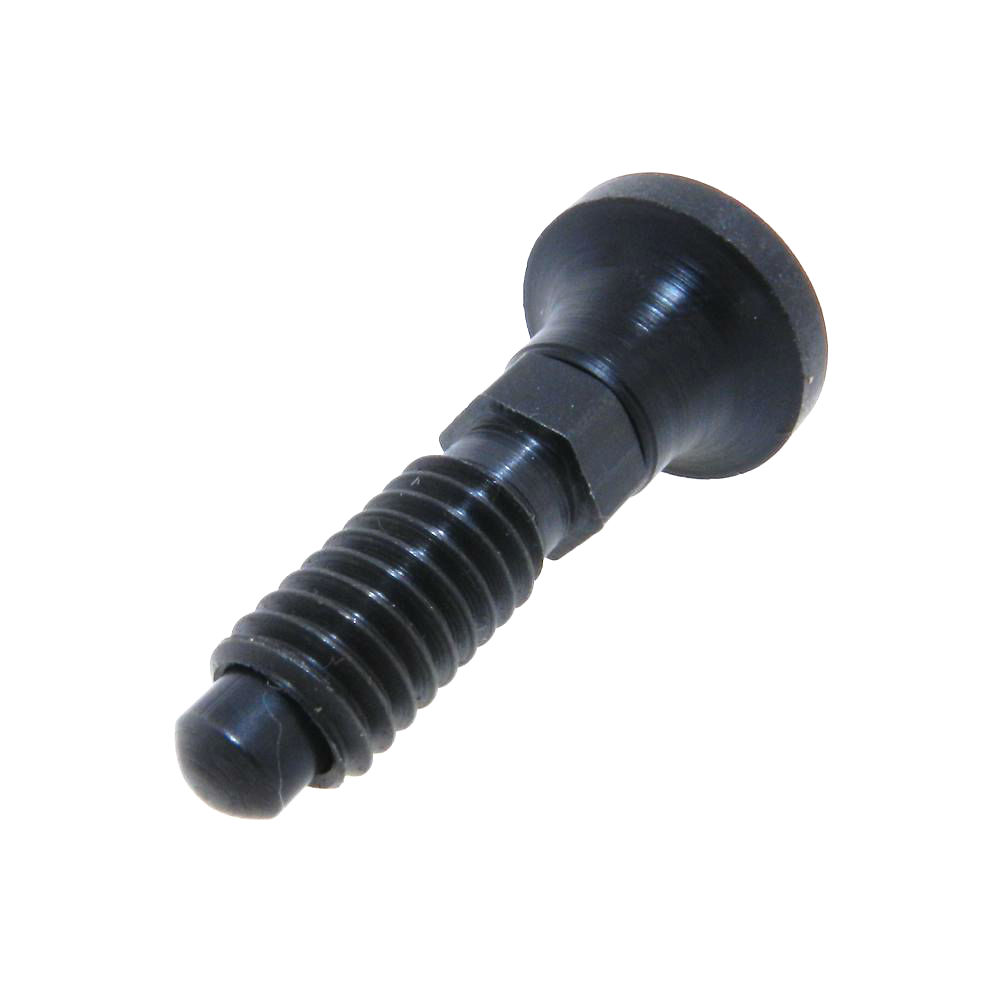

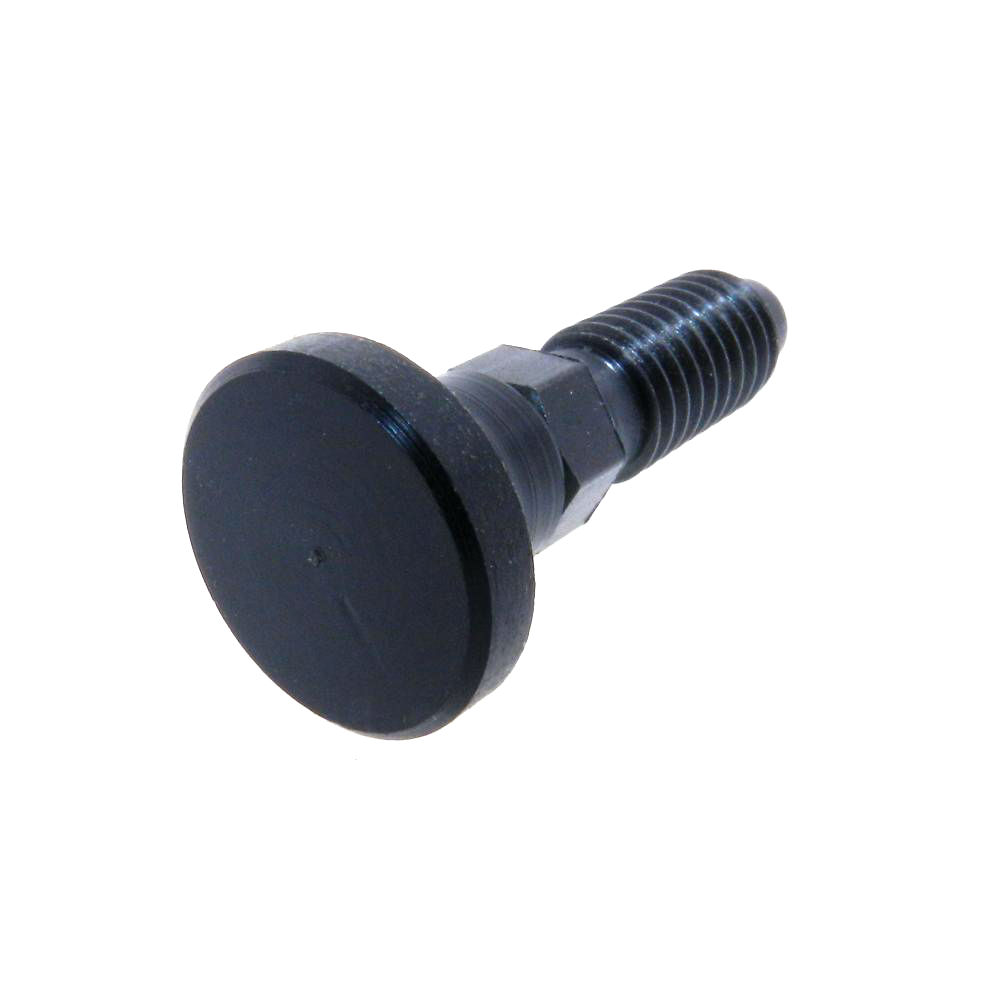

This retractable plunger from JBF National features a radiused Acetal nose for maximum hole engagement, and the highest quality zinc plated 12L15 steel or 303 stainless steel. This retractable plunger (also known as an indexing plunger) has been designed and tested to withstand side loading.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Thread Size (A)	Thread Length (C)	Body Length (B)	Nose Length (D)	Nose Diameter (E)

1LDN-1009	N/A 1/4-20	N/A 0.63 in	N/A 0.97 in	N/A 0.13 in	N/A 0.16 in
1LDN-1010	N/A 3/8-16	N/A 0.75 in	N/A 1.40 in	N/A 0.18 in	N/A 0.25 in
1LDN-1011	N/A 1/2-13	N/A 1.00 in	N/A 1.90 in	N/A 0.25 in	N/A 0.31 in
1LDN-1009SS	N/A 1/4-20	N/A 0.63 in	N/A 0.97 in	N/A 0.13 in	N/A 0.16 in
1LDN-1010SS	N/A 3/8-16	N/A 0.75 in	N/A 1.40 in	N/A 0.18 in	N/A 0.25 in
1LDN-1011SS	N/A 1/2-13	N/A 1.00 in	N/A 1.90 in	N/A 0.25 in	N/A 0.31 in
