Ball Knob Retractable Plungers
Retractable Plungers

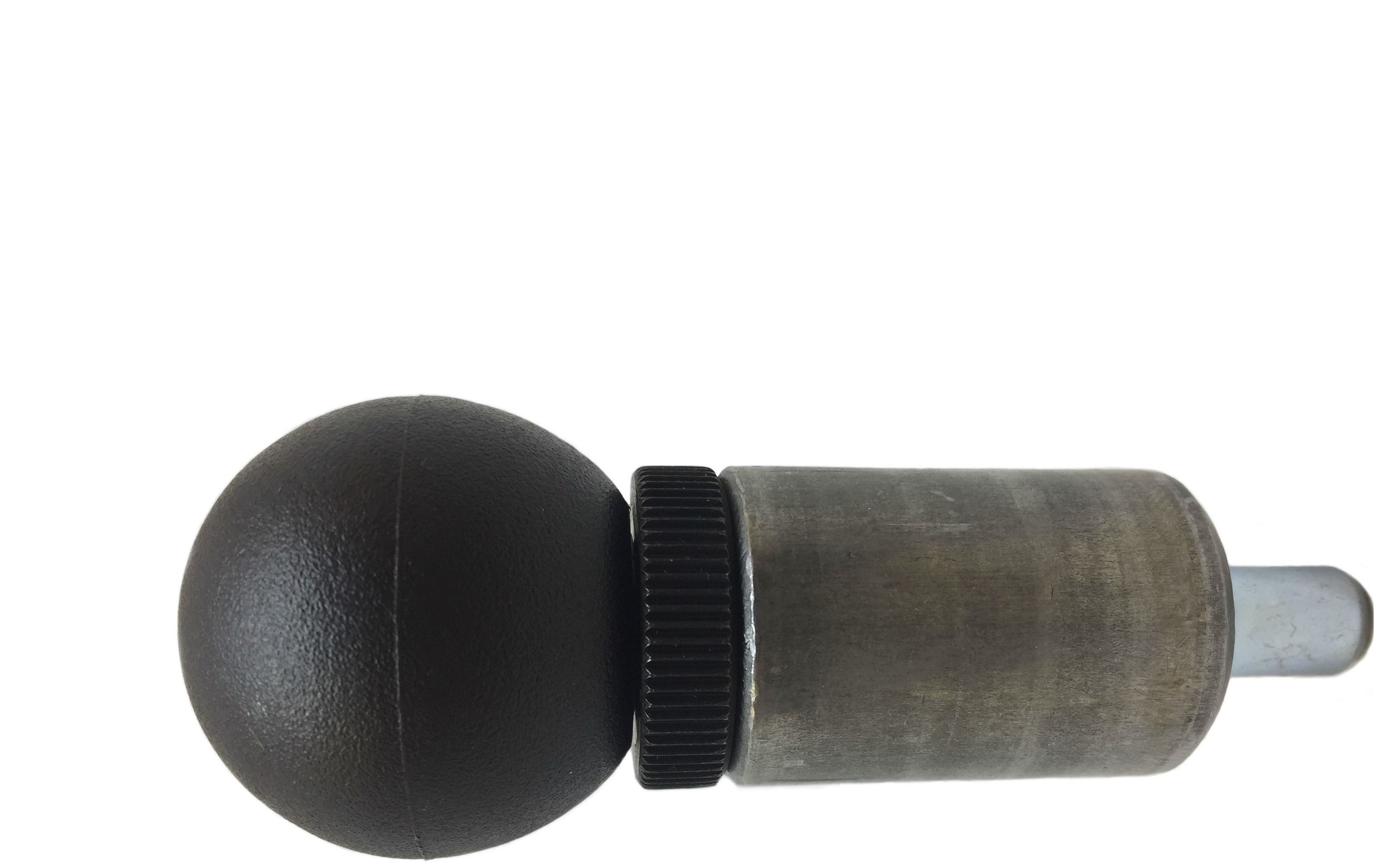

These ball knob retractable plungers have been designed and tested for maximum durability and are manufactured from the highest quality materials. These retractable plungers feature zinc plated steel pins and non-plated steel barrels, and are perfect for telescoping applications. The ball knob is manufactured from an ultra-tough black polypropylene for added reliability. T-Handle version also available.

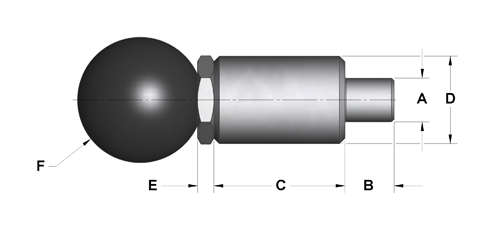

Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Drawings |
|---|---|---|---|---|---|---|---|
| BPOP-5000 BPOP-5000/Asset/IMG_6792-Finished---Copy-9-39.jpg | Dimension A N/A 0.375 in | Dimension B N/A 0.600 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.35 in |
Drawings
 |
| BPOP-5001 BPOP-5001/Asset/IMG_6792-Finished---Copy-9-39.jpg | Dimension A N/A 0.500 in | Dimension B N/A 7/8 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.35 in |
Drawings
|
| BPOP-5002 BPOP-5002/Asset/IMG_6792-Finished---Copy-9-39.jpg | Dimension A N/A 0.500 in | Dimension B N/A 0.610 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.35 in |
Drawings
|
