Knurled Knob Locking Nose Retractable Plungers without Nylon Patch
Retractable Plungers
Knurled Knob Locking Nose Retractable Plungers without Nylon Patch

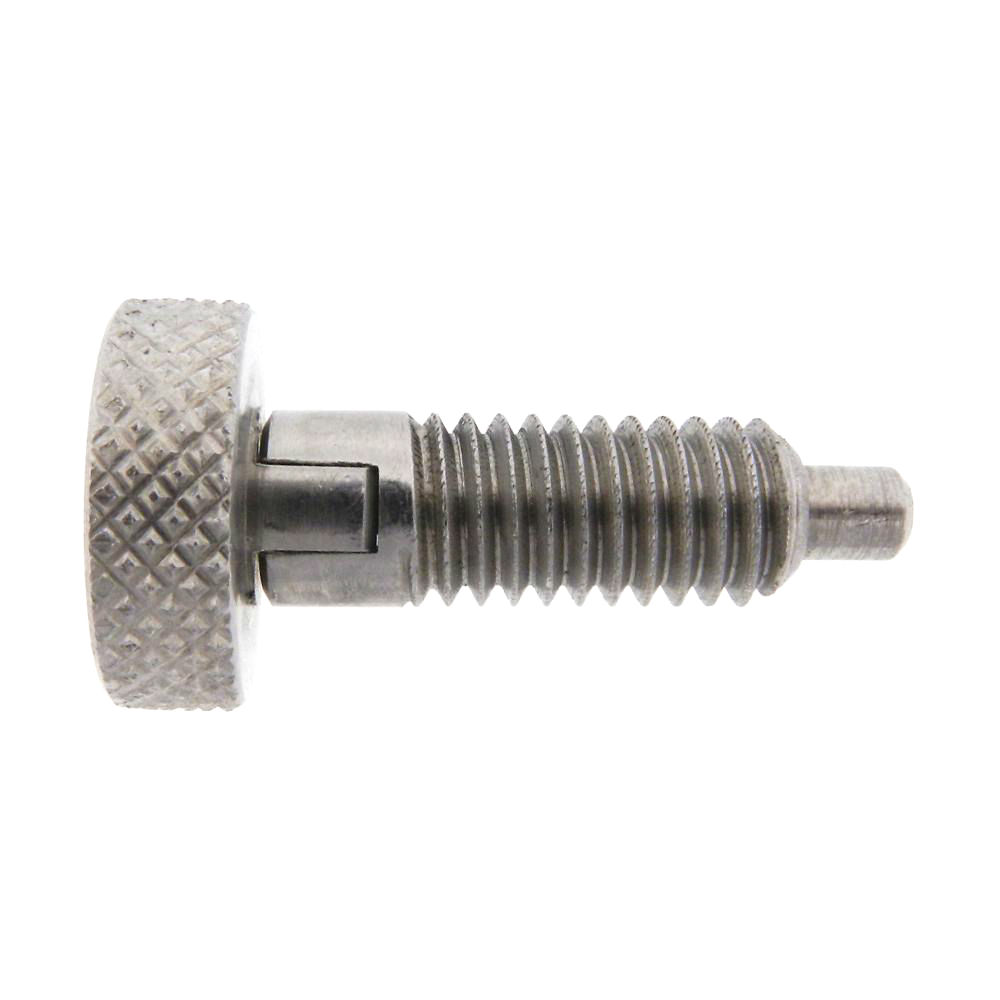

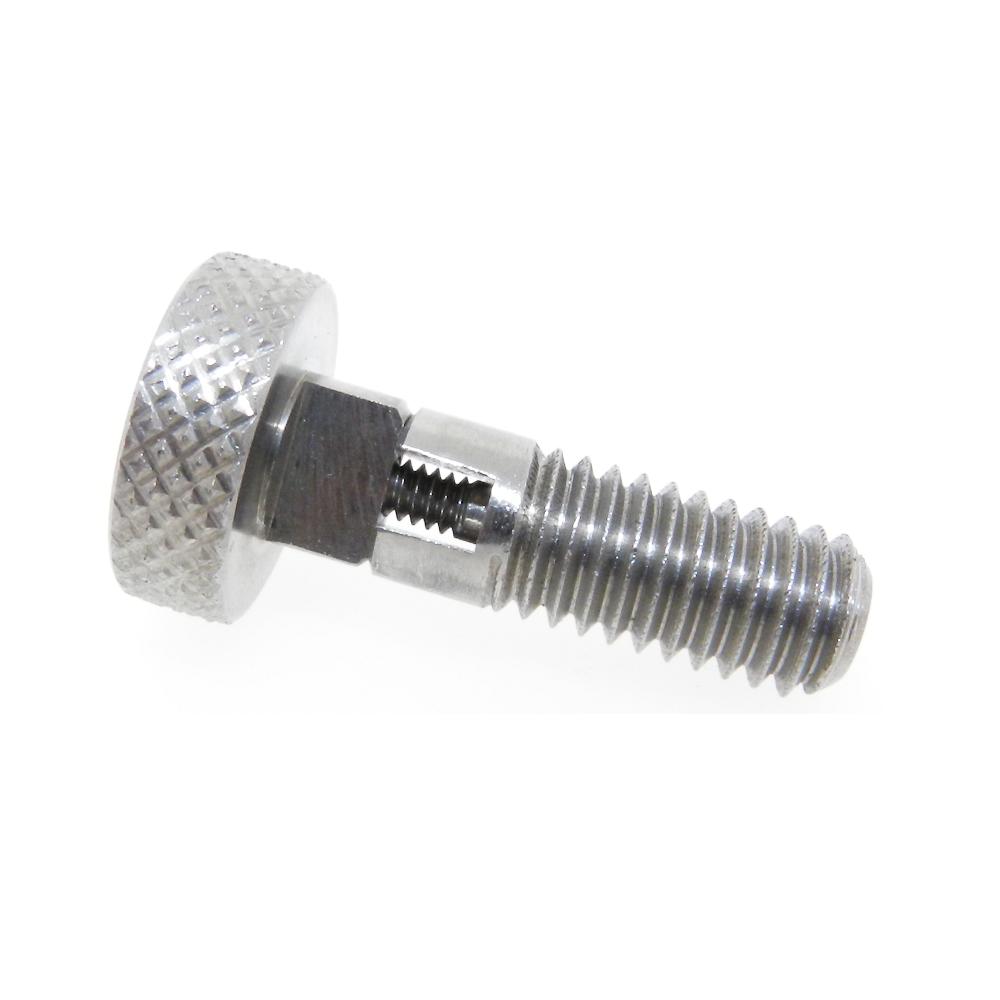

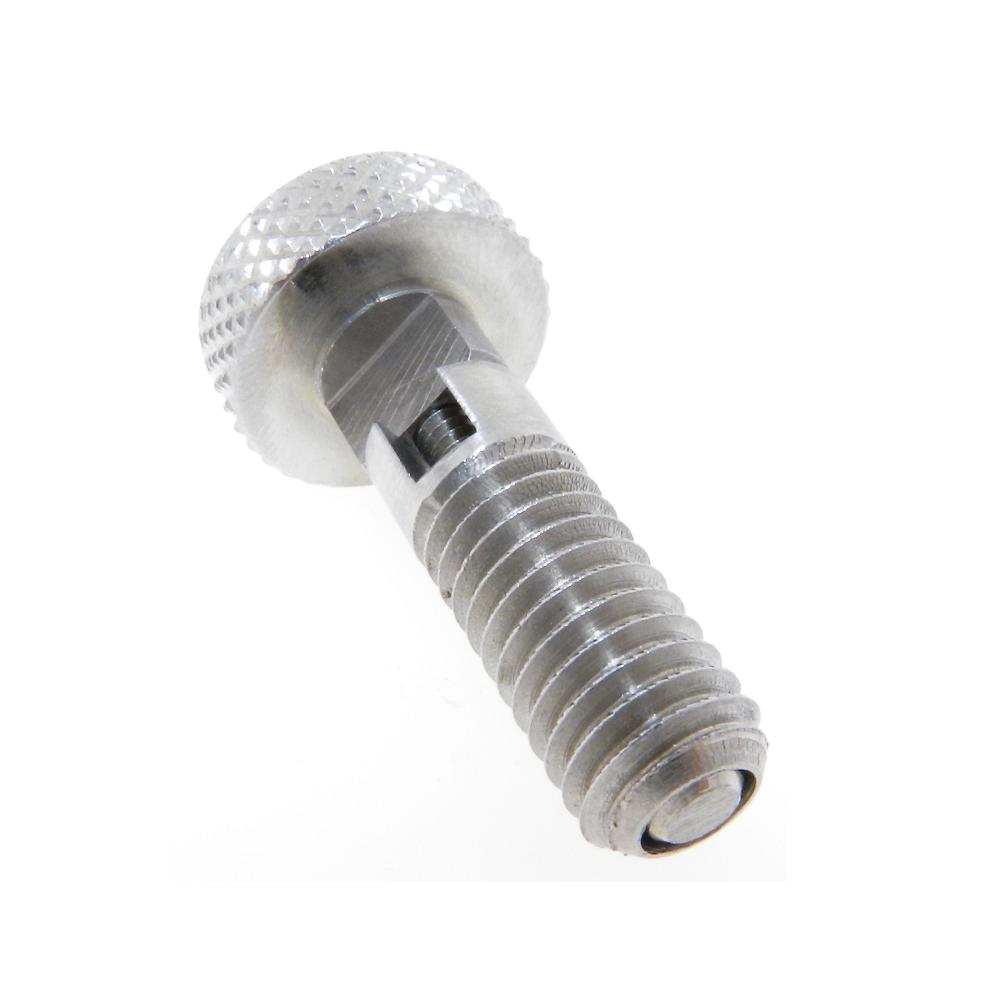

JBF National's knurled knob locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist, and the knurled rim allows for maximum grip regardless of grip situation.
JBF National's knurled knob locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist, and the knurled rim allows for maximum grip regardless of grip situation.
Item # |
Thread Size (A) |
Thread Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Knob Diameter (E) |
Knob Hub Lenth (F) |
Knurled Width (G) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1KLN-1018 1KLN-1018/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
 |
| 1KLN-1019 1KLN-1019/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1020 1KLN-1020/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1021 1KLN-1021/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1022 1KLN-1022/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1023A 1KLN-1023A/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1018SS 1KLN-1018SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1019SS 1KLN-1019SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1020SS 1KLN-1020SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1021SS 1KLN-1021SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1022SS 1KLN-1022SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1023SSA 1KLN-1023SSA/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1018-316 1KLN-1018-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1019-316 1KLN-1019-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1020-316 1KLN-1020-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1021-316 1KLN-1021-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1022-316 1KLN-1022-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1023-316A 1KLN-1023-316A/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1BKLN-1018 1BKLN-1018/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1019 1BKLN-1019/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1020 1BKLN-1020/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1BKLN-1021 1BKLN-1021/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1BKLN-1022 1BKLN-1022/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1BKLN-1023A 1BKLN-1023A/Asset/Knurled-Knob--Hand-Retractable-Plunger-Locking--No-Patch-01-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
