Knurled Knob Non-Locking Nose Retractable Plungers without Nylon Patch

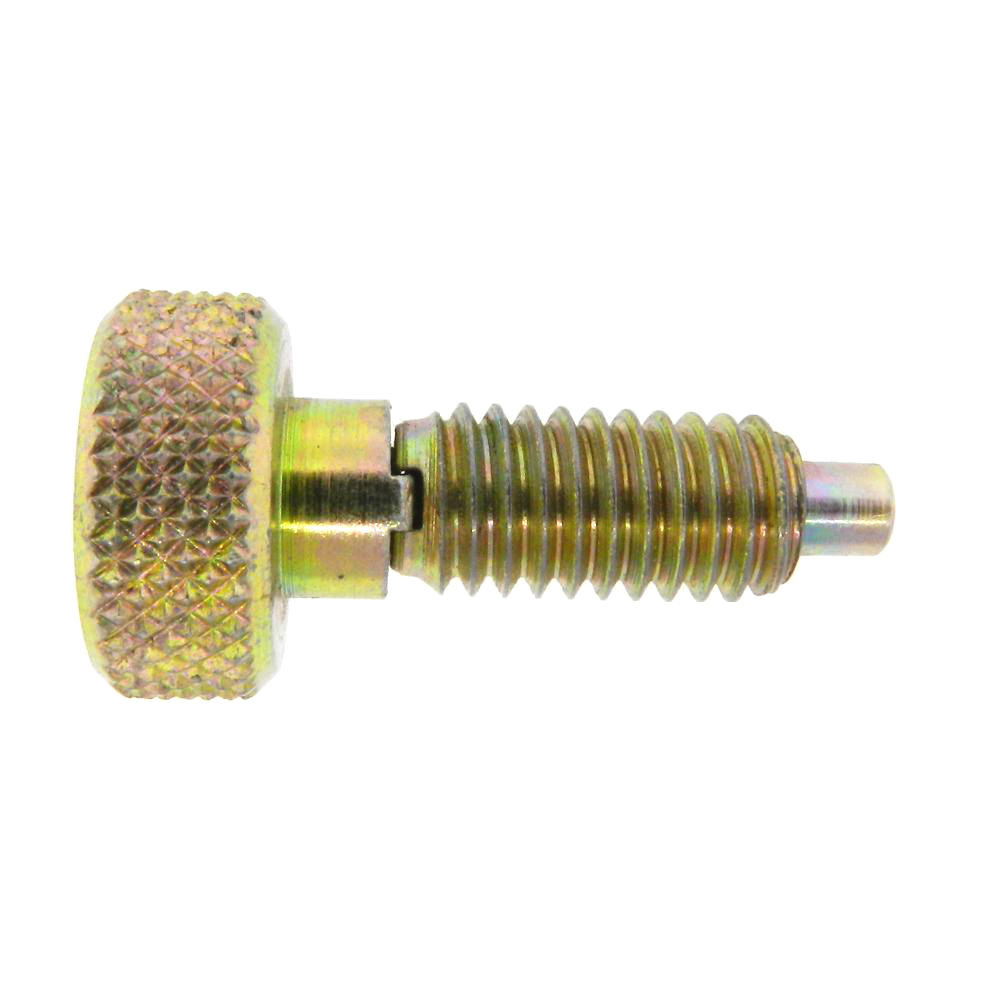

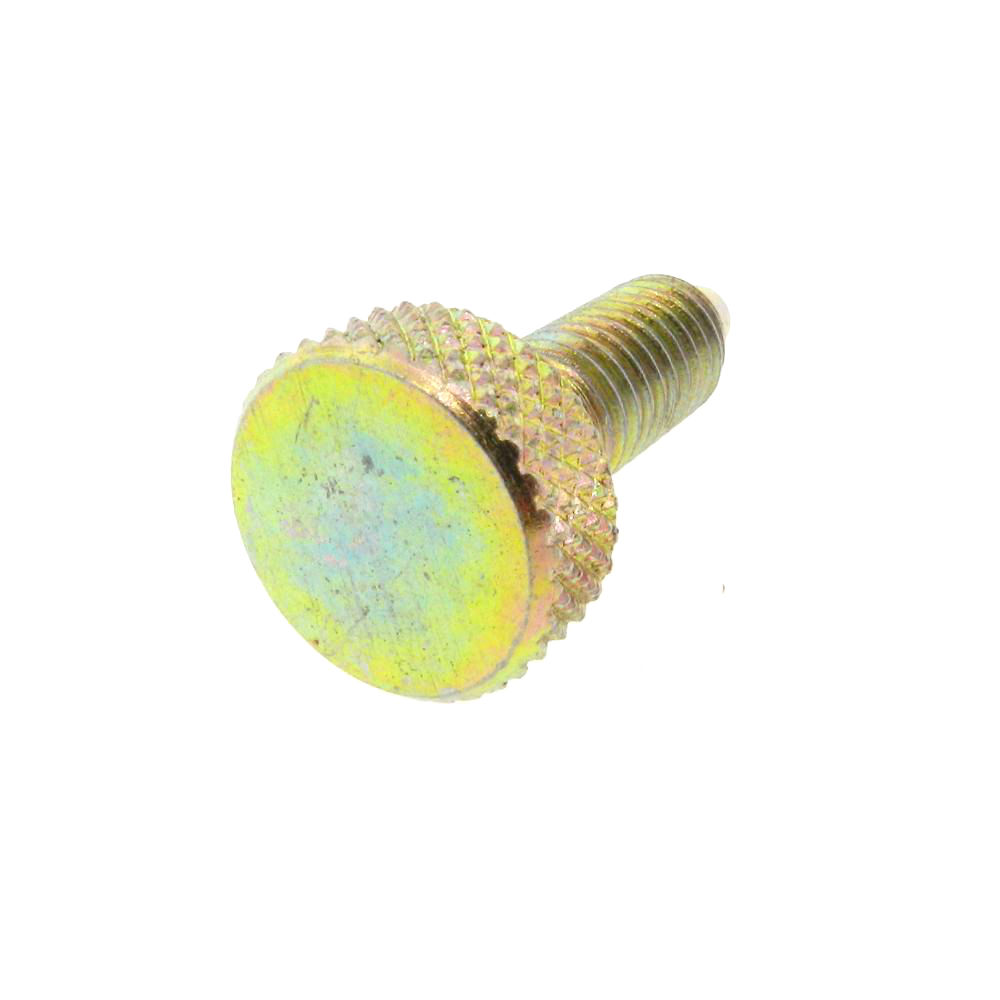

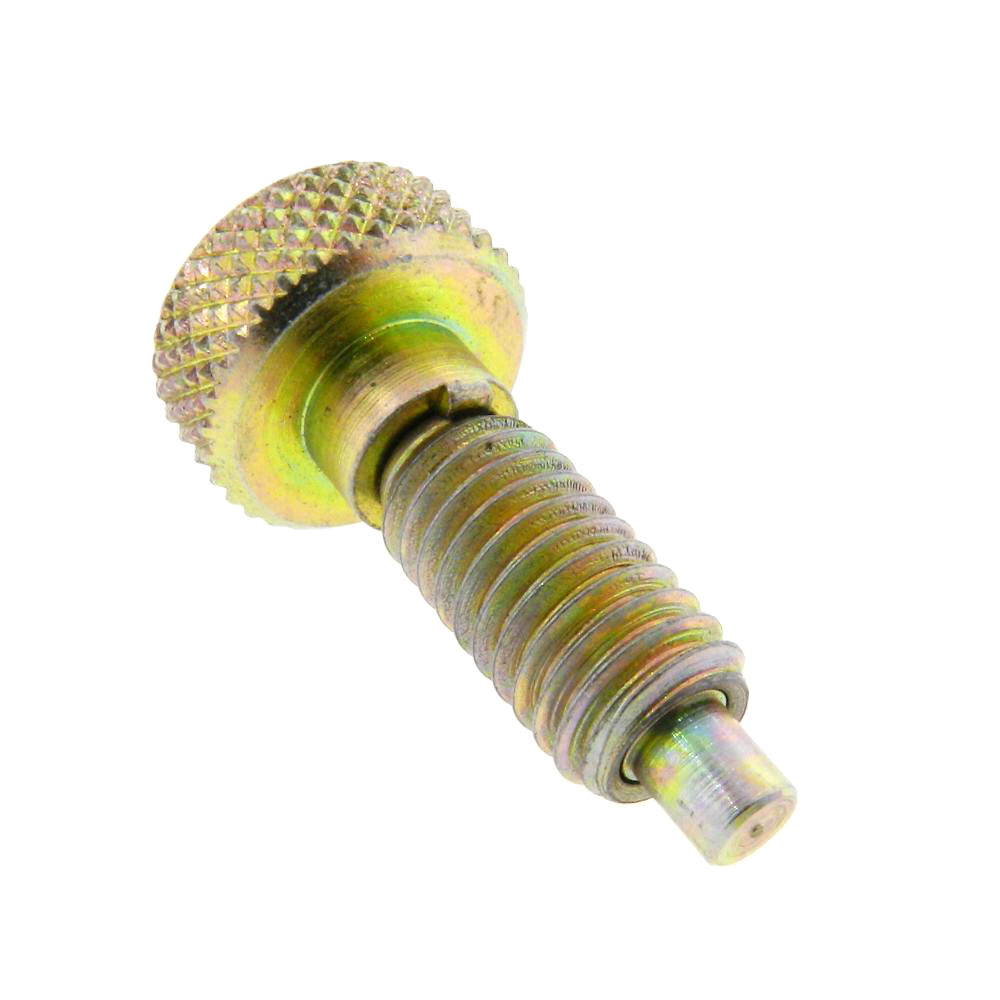

JBF National's knurled knob non-locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. The knurled rim on this retractable plunger (also known as an indexing plunger) allows for maximum grip, regardless of grip situation.
JBF National's knurled knob non-locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. The knurled rim on this retractable plunger (also known as an indexing plunger) allows for maximum grip, regardless of grip situation.
Item # |
Thread Size (A) |
Thread Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Knob Diameter (E) |
Knob Hub Lenth (F) |
Knurled Width (G) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1KLN-1029 1KLN-1029/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
 |
| 1KLN-1030 1KLN-1030/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1031 1KLN-1031/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1032 1KLN-1032/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1033 1KLN-1033/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1034 1KLN-1034/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1029SS 1KLN-1029SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1030SS 1KLN-1030SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1031SS 1KLN-1031SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1032SS 1KLN-1032SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1033SS 1KLN-1033SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1034SS 1KLN-1034SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1029-316 1KLN-1029-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1030-316 1KLN-1030-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1031-316 1KLN-1031-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1032-316 1KLN-1032-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1033-316 1KLN-1033-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1034-316 1KLN-1034-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1BKLN-1029 1BKLN-1029/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1030 1BKLN-1030/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1031 1BKLN-1031/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1BKLN-1032 1BKLN-1032/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1BKLN-1033 1BKLN-1033/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1BKLN-1034 1BKLN-1034/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking--No-Patch-01A.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
