Knurled Knob Non-Locking Nose Retractable Plungers with Nylon Patch
Retractable Plungers

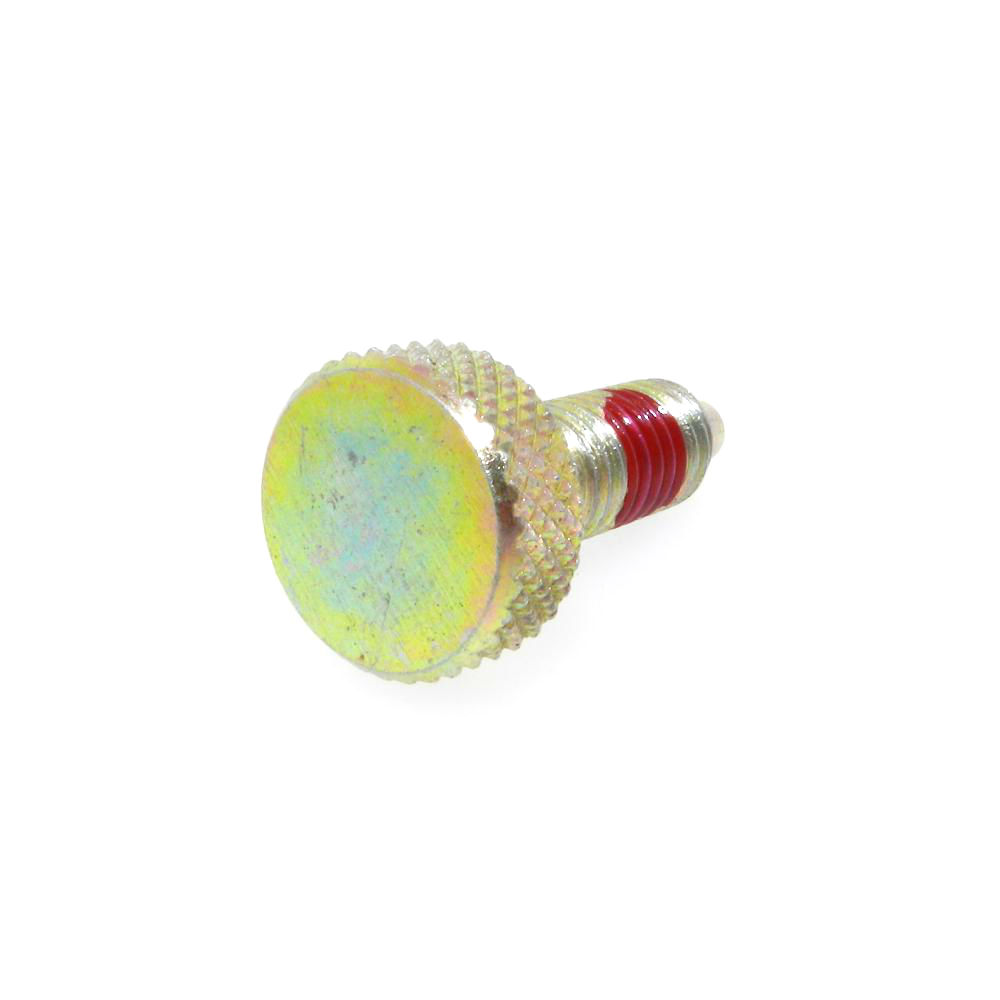

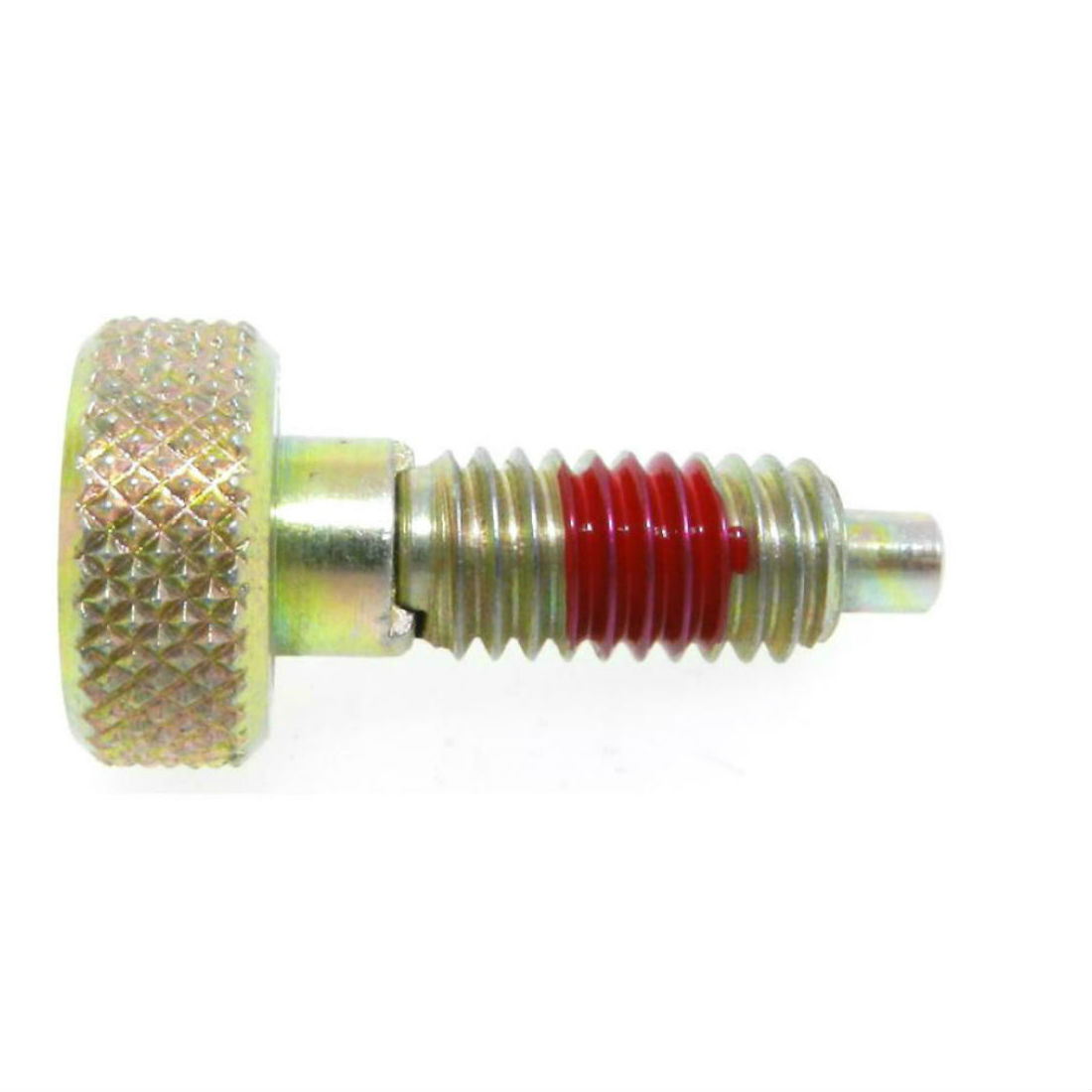

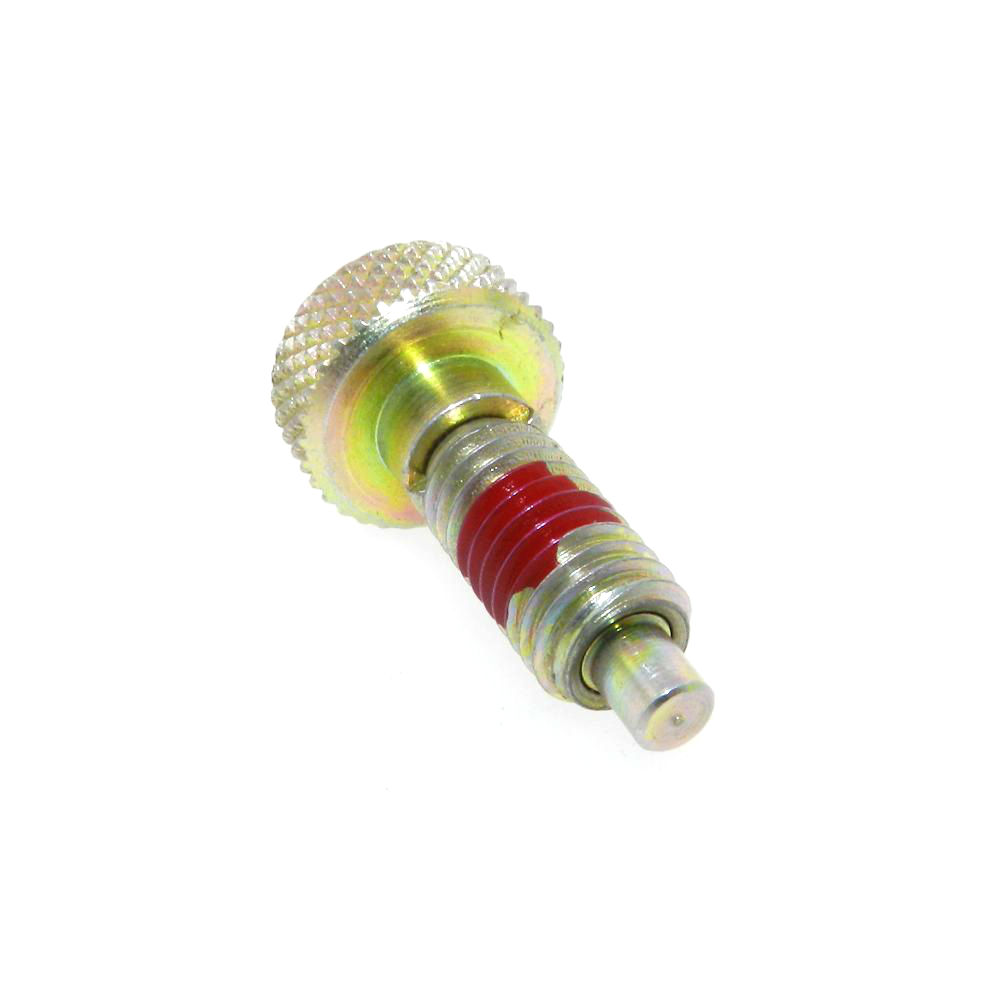

JBF National's knurled knob non-locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. The knurled rim on this model allows for maximum grip. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations.
Item # |
Thread Size (A) |
Thread Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Knob Diameter (E) |
Knob Hub Lenth (F) |
Knurled Width (G) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1KLN-1023 1KLN-1023/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
 |
| 1KLN-1024 1KLN-1024/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1025 1KLN-1025/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1026 1KLN-1026/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1027 1KLN-1027/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1028 1KLN-1028/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1023SS 1KLN-1023SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1024SS 1KLN-1024SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1025SS 1KLN-1025SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1026SS 1KLN-1026SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1027SS 1KLN-1027SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1028SS 1KLN-1028SS/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1KLN-1023-316 1KLN-1023-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1024-316 1KLN-1024-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1KLN-1025-316 1KLN-1025-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1KLN-1026-316 1KLN-1026-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1KLN-1027-316 1KLN-1027-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1KLN-1028-316 1KLN-1028-316/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
| 1BKLN-1023 1BKLN-1023/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 10-32 | Thread Length (B) N/A 0.40 in | Nose Length (C) N/A 0.09 in | Nose Diameter (D) N/A 0.104 in | Knob Diameter (E) N/A 3/8 in | Knob Hub Lenth (F) N/A 1/4 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1024 1BKLN-1024/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (B) N/A 0.50 in | Nose Length (C) N/A 0.13 in | Nose Diameter (D) N/A 0.123 in | Knob Diameter (E) N/A 1/2 in | Knob Hub Lenth (F) N/A 5/16 in | Knurled Width (G) N/A 3/16 in |
Drawings
|
| 1BKLN-1025 1BKLN-1025/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/16-18 | Thread Length (B) N/A 0.63 in | Nose Length (C) N/A 0.19 in | Nose Diameter (D) N/A 0.154 in | Knob Diameter (E) N/A 5/8 in | Knob Hub Lenth (F) N/A 3/8 in | Knurled Width (G) N/A 1/4 in |
Drawings
|
| 1BKLN-1026 1BKLN-1026/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (B) N/A 0.75 in | Nose Length (C) N/A 0.22 in | Nose Diameter (D) N/A 0.185 in | Knob Diameter (E) N/A 3/4 in | Knob Hub Lenth (F) N/A 1/2 in | Knurled Width (G) N/A 5/16 in |
Drawings
|
| 1BKLN-1027 1BKLN-1027/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (B) N/A 0.88 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Knob Diameter (E) N/A 1 in | Knob Hub Lenth (F) N/A 5/8 in | Knurled Width (G) N/A 3/8 in |
Drawings
|
| 1BKLN-1028 1BKLN-1028/Asset/Knurled-Knob--Hand-Retractable-Plunger-Non-Locking-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (B) N/A 1.00 in | Nose Length (C) N/A 0.32 in | Nose Diameter (D) N/A 0.312 in | Knob Diameter (E) N/A 1-1/4 in | Knob Hub Lenth (F) N/A 3/4 in | Knurled Width (G) N/A 7/16 in |
Drawings
|
