Knurled Knob Locking Nose Retractable Plungers with Nylon Patch On JBF National

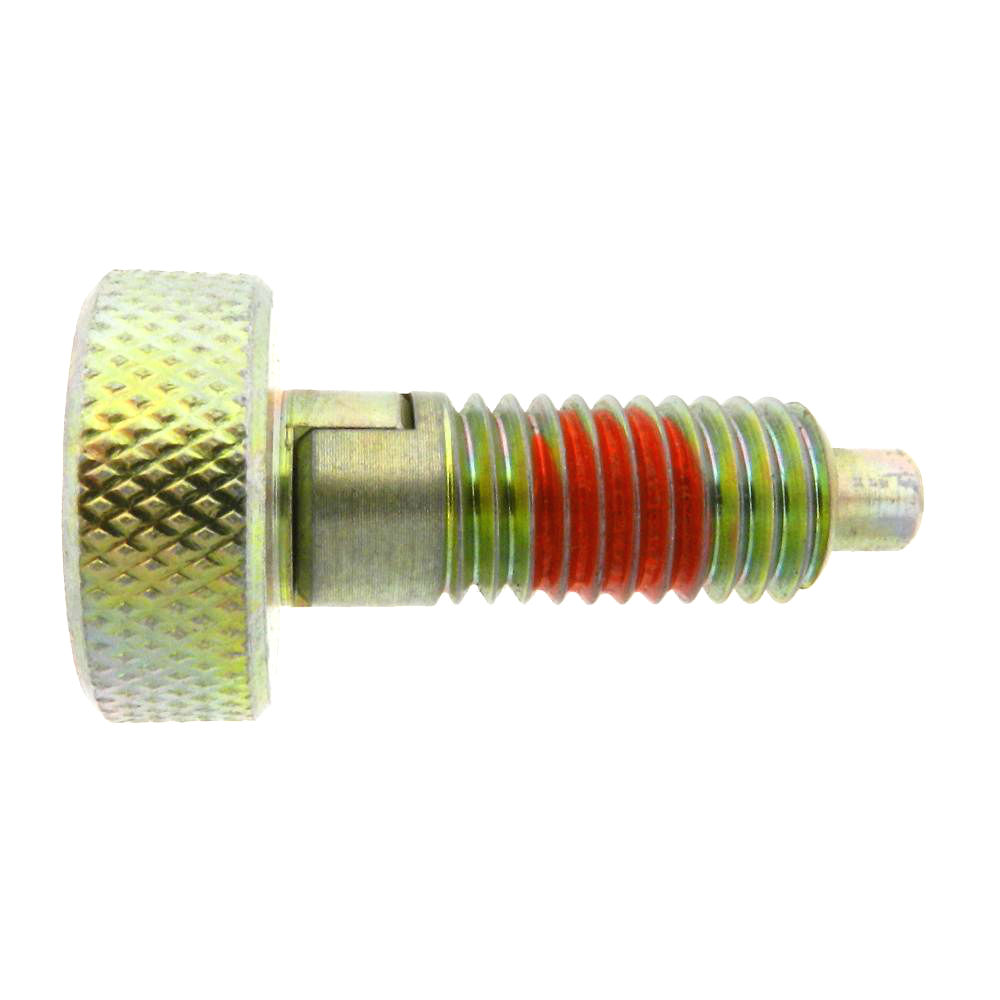

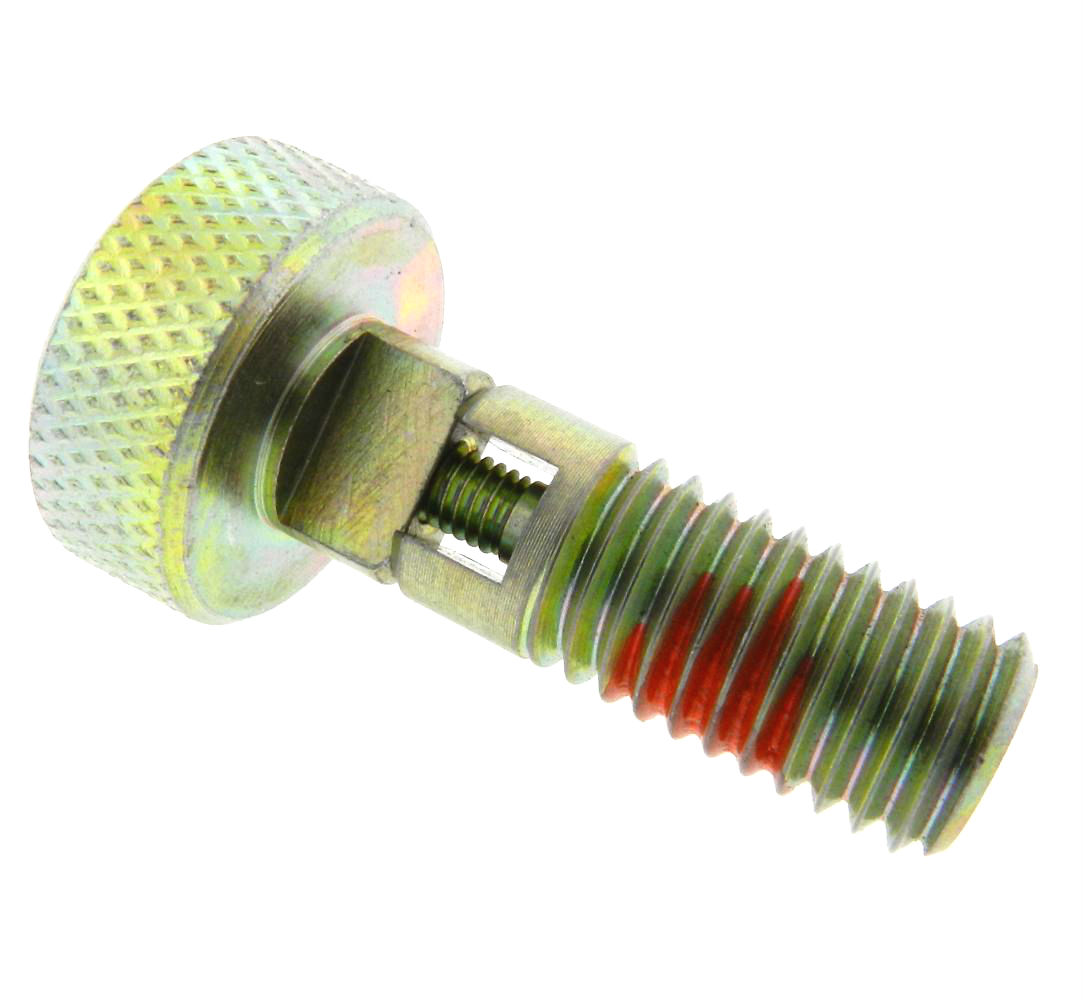

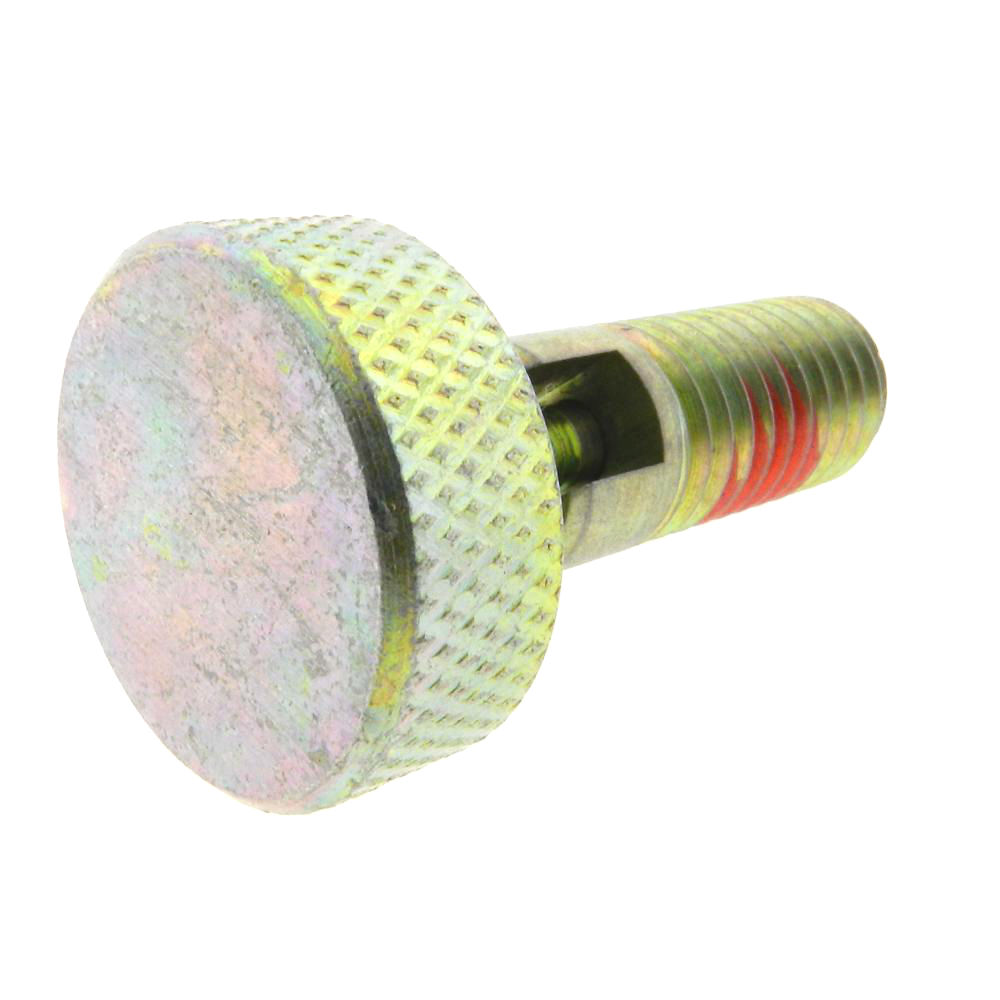

JBF National's knurled knob locking nose retractable plunger comes available in steel, 303 stainless steel, 316 stainless steel, and brass. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist, and the knurled rim allows for maximum grip regardless of grip situation. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations.

1 - 24 of 24 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Thread Size (A)

Thread Length (B) (in)

Nose Length (C) (in)

Nose Diameter (D) (in)

Knob Diameter (E) (in)

Knob Hub Lenth (F) (in)

Knurled Width (G) (in)

Material

Item #	Thread Size (A)	Thread Length (B)	Nose Length (C)	Nose Diameter (D)	Knob Diameter (E)	Knob Hub Lenth (F)	Knurled Width (G)

1KLN-1012	N/A 10-32	N/A 0.40 in	N/A 0.09 in	N/A 0.104 in	N/A 3/8 in	N/A 1/4 in	N/A 3/16 in
1KLN-1013	N/A 1/4-20	N/A 0.50 in	N/A 0.13 in	N/A 0.123 in	N/A 1/2 in	N/A 5/16 in	N/A 3/16 in
1KLN-1014	N/A 5/16-18	N/A 0.63 in	N/A 0.19 in	N/A 0.154 in	N/A 5/8 in	N/A 3/8 in	N/A 1/4 in
1KLN-1015	N/A 3/8-16	N/A 0.75 in	N/A 0.22 in	N/A 0.185 in	N/A 3/4 in	N/A 1/2 in	N/A 5/16 in
1KLN-1016	N/A 1/2-13	N/A 0.88 in	N/A 0.25 in	N/A 0.248 in	N/A 1 in	N/A 5/8 in	N/A 3/8 in
1KLN-1017	N/A 5/8-11	N/A 1.00 in	N/A 0.32 in	N/A 0.312 in	N/A 1-1/4 in	N/A 3/4 in	N/A 7/16 in
1KLN-1012SS	N/A 10-32	N/A 0.40 in	N/A 0.09 in	N/A 0.104 in	N/A 3/8 in	N/A 1/4 in	N/A 3/16 in
1KLN-1013SS	N/A 1/4-20	N/A 0.50 in	N/A 0.13 in	N/A 0.123 in	N/A 1/2 in	N/A 5/16 in	N/A 3/16 in
1KLN-1014SS	N/A 5/16-18	N/A 0.63 in	N/A 0.19 in	N/A 0.154 in	N/A 5/8 in	N/A 3/8 in	N/A 1/4 in
1KLN-1015SS	N/A 3/8-16	N/A 0.75 in	N/A 0.22 in	N/A 0.185 in	N/A 3/4 in	N/A 1/2 in	N/A 5/16 in
1KLN-1016SS	N/A 1/2-13	N/A 0.88 in	N/A 0.25 in	N/A 0.248 in	N/A 1 in	N/A 5/8 in	N/A 3/8 in
1KLN-1017SS	N/A 5/8-11	N/A 1.00 in	N/A 0.32 in	N/A 0.312 in	N/A 1-1/4 in	N/A 3/4 in	N/A 7/16 in
1KLN-1012-316	N/A 10-32	N/A 0.40 in	N/A 0.09 in	N/A 0.104 in	N/A 3/8 in	N/A 1/4 in	N/A 3/16 in
1KLN-1013-316	N/A 1/4-20	N/A 0.50 in	N/A 0.13 in	N/A 0.123 in	N/A 1/2 in	N/A 5/16 in	N/A 3/16 in
1KLN-1014-316	N/A 5/16-18	N/A 0.63 in	N/A 0.19 in	N/A 0.154 in	N/A 5/8 in	N/A 3/8 in	N/A 1/4 in
1KLN-1015-316	N/A 3/8-16	N/A 0.75 in	N/A 0.22 in	N/A 0.185 in	N/A 3/4 in	N/A 1/2 in	N/A 5/16 in
1KLN-1016-316	N/A 1/2-13	N/A 0.88 in	N/A 0.25 in	N/A 0.248 in	N/A 1 in	N/A 5/8 in	N/A 3/8 in
1KLN-1017-316	N/A 5/8-11	N/A 1.00 in	N/A 0.32 in	N/A 0.312 in	N/A 1-1/4 in	N/A 3/4 in	N/A 7/16 in
1BLKN-1012	N/A 10-32	N/A 0.40 in	N/A 0.09 in	N/A 0.104 in	N/A 3/8 in	N/A 1/4 in	N/A 3/16 in
1BLKN-1013	N/A 1/4-20	N/A 0.50 in	N/A 0.13 in	N/A 0.123 in	N/A 1/2 in	N/A 5/16 in	N/A 3/16 in
1BLKN-1014	N/A 5/16-18	N/A 0.63 in	N/A 0.19 in	N/A 0.154 in	N/A 5/8 in	N/A 3/8 in	N/A 1/4 in
1BLKN-1015	N/A 3/8-16	N/A 0.75 in	N/A 0.22 in	N/A 0.185 in	N/A 3/4 in	N/A 1/2 in	N/A 5/16 in
1BLKN-1016	N/A 1/2-13	N/A 0.88 in	N/A 0.25 in	N/A 0.248 in	N/A 1 in	N/A 5/8 in	N/A 3/8 in
1BLKN-1017	N/A 5/8-11	N/A 1.00 in	N/A 0.32 in	N/A 0.312 in	N/A 1-1/4 in	N/A 3/4 in	N/A 7/16 in
