L-Handle Locking Nose Retractable Plungers with Nylon Patch
Retractable Plungers

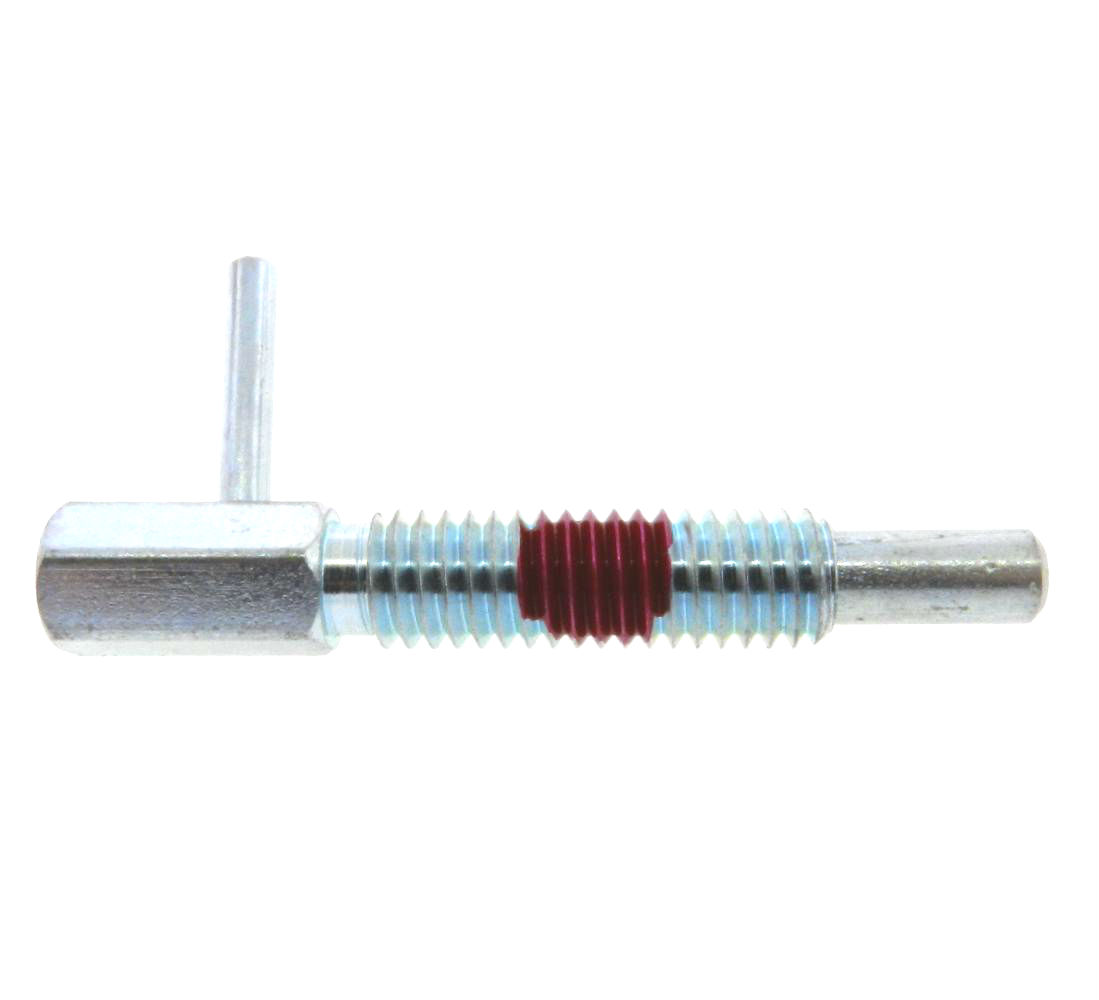

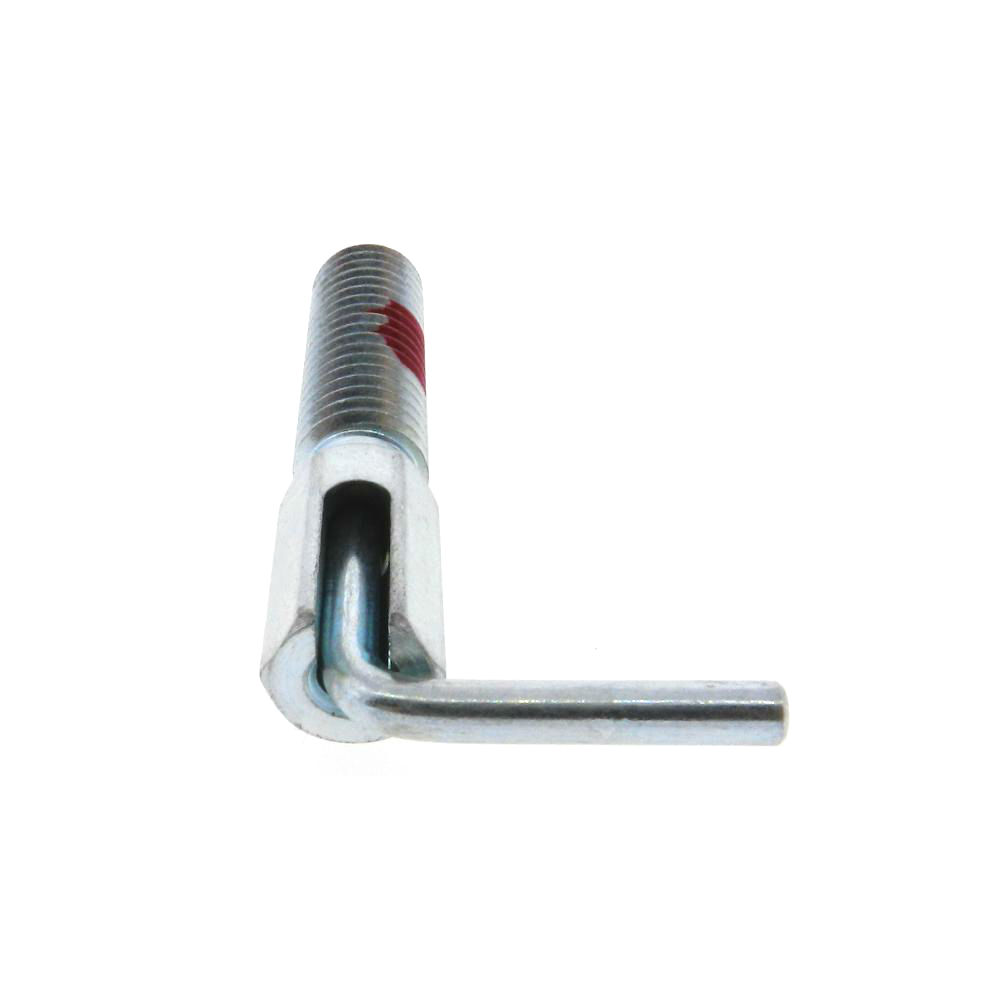

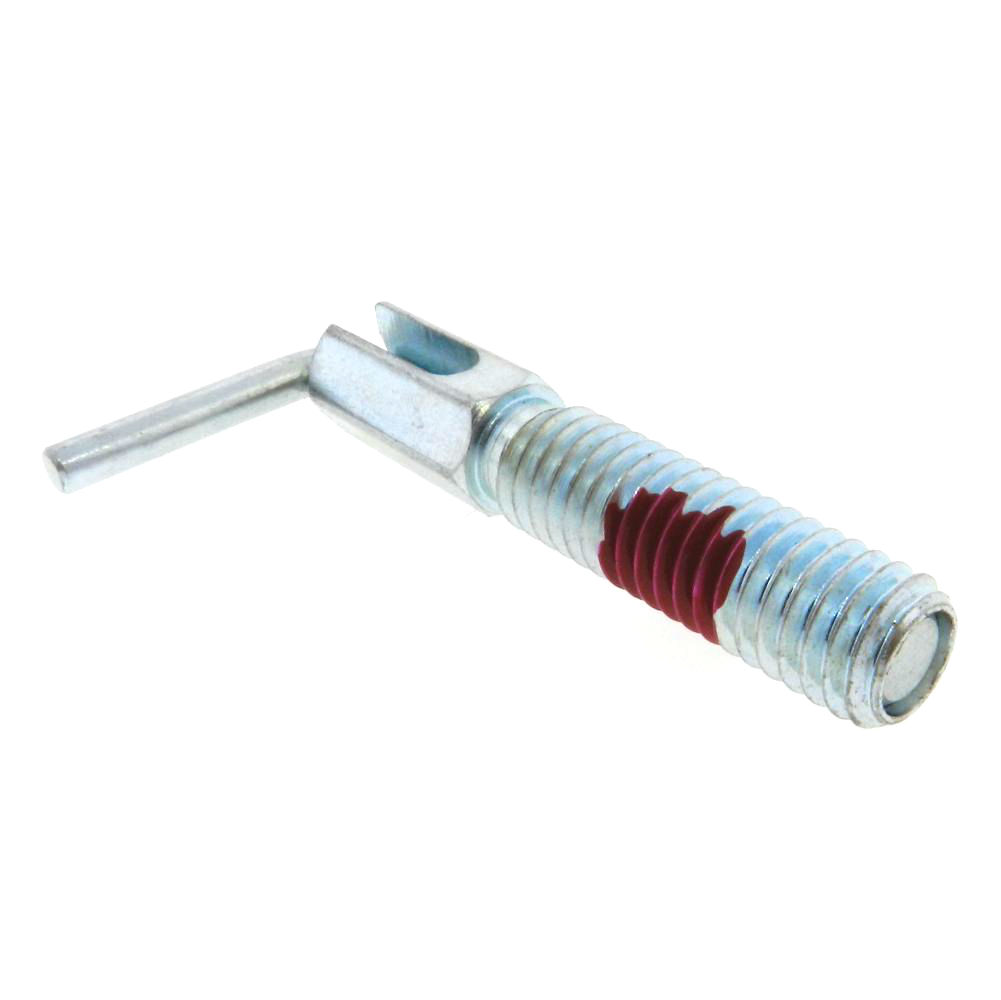

JBF National's l-handle locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l-handle positioning flexibility. A simple pull and twist of the l-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations.
Item # |
Thread Size (A) |
Thread Length (H) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Hex Size (E) |
Handle Length (F) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1LHLN-1035 1LHLN-1035/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
 |
| 1LHLN-1036 1LHLN-1036/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1037 2LHLN-1037/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1038 2LHLN-1038/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1039 3LHLN-1039/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1040 3LHLN-1040/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1041 4LHLN-1041/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1042 4LHLN-1042/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1035SS 1LHLN-1035SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1036SS 1LHLN-1036SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1037SS 2LHLN-1037SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1038SS 2LHLN-1038SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1039SS 3LHLN-1039SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1040SS 3LHLN-1040SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1041SS 4LHLN-1041SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1042SS 4LHLN-1042SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1035-316 1LHLN-1035-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1036-316 1LHLN-1036-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1037-316 2LHLN-1037-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1038-316 2LHLN-1038-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1039-316 3LHLN-1039-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1040-316 3LHLN-1040-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1041-316 4LHLN-1041-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1042-316 4LHLN-1042-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--With-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
