L-Handle Locking Nose Retractable Plungers without Nylon Patch
Retractable Plungers
L-Handle Locking Nose Retractable Plunger without Nylon Patch

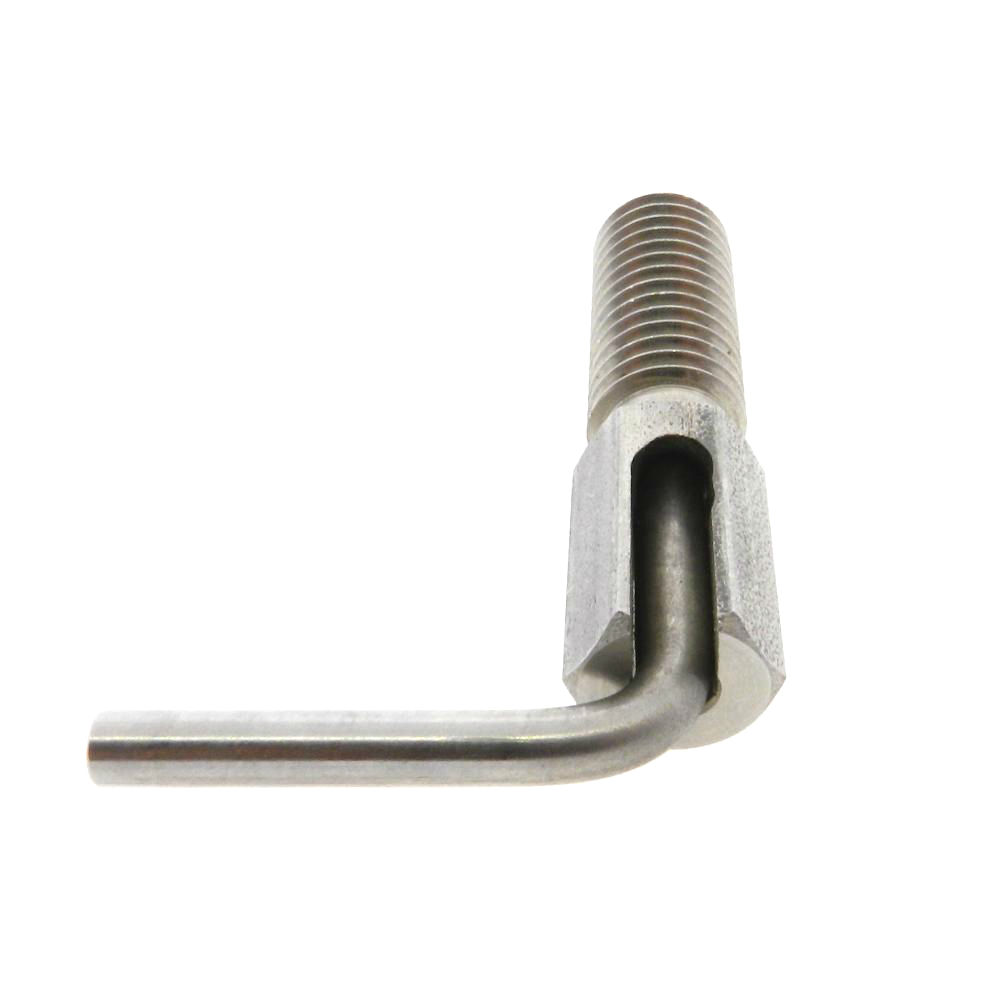

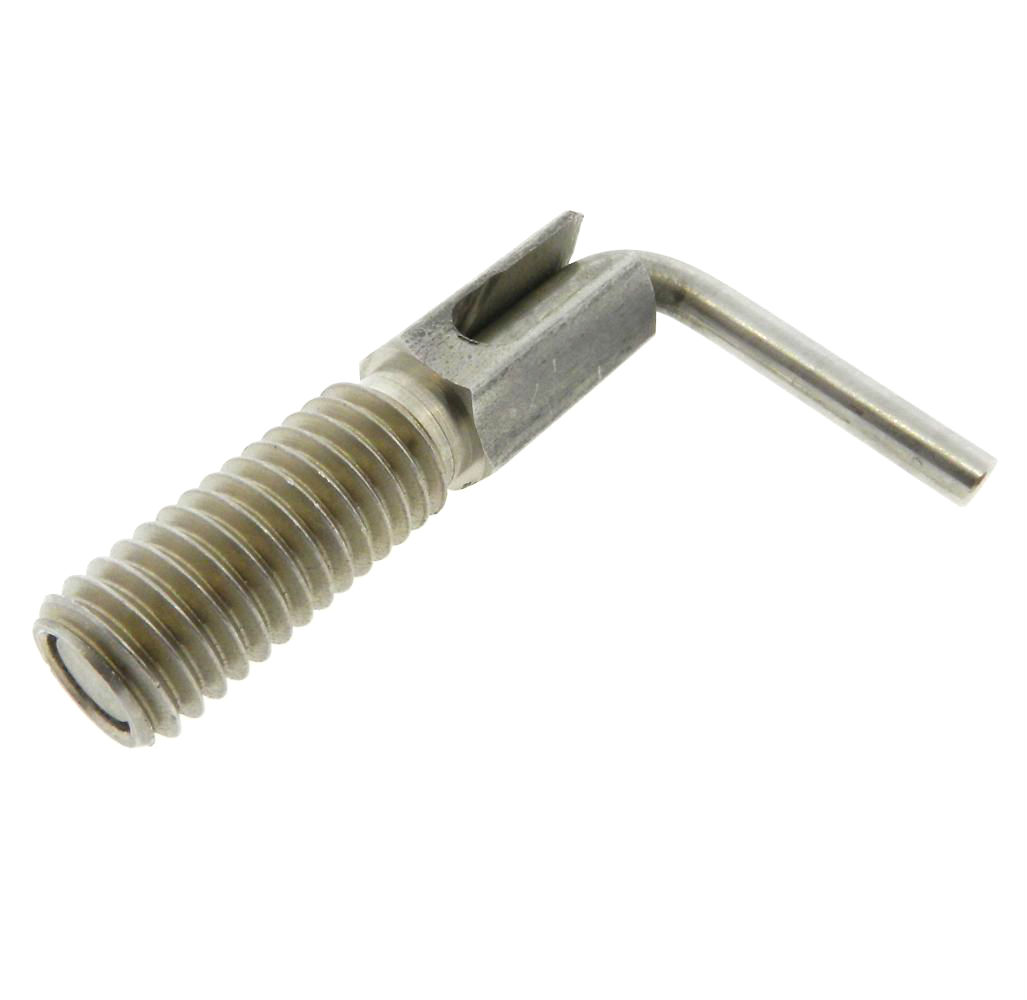

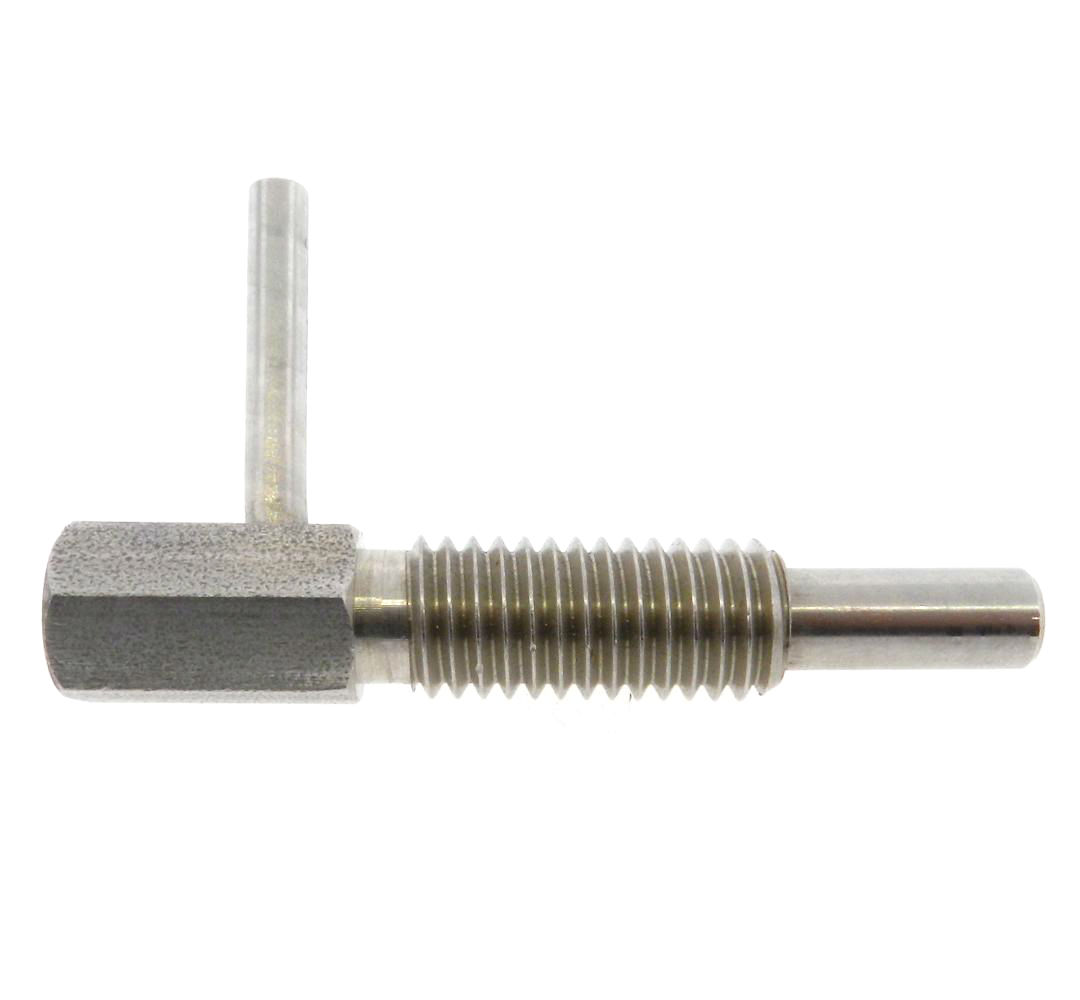

JBF National's l-handle locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l - handle positioning flexibility. A simple pull and twist of the l-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist.
JBF National's l-handle locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l - handle positioning flexibility. A simple pull and twist of the l-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist.
Item # |
Thread Size (A) |
Thread Length (H) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Hex Size (E) |
Handle Length (F) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1LHLN-1043 1LHLN-1043/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
 |
| 1LHLN-1044 1LHLN-1044/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1045 2LHLN-1045/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1046 2LHLN-1046/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1047 3LHLN-1047/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1048 3LHLN-1048/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1049 4LHLN-1049/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1050 4LHLN-1050/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1043SS 1LHLN-1043SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1044SS 1LHLN-1044SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1045SS 2LHLN-1045SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1046SS 2LHLN-1046SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1047SS 3LHLN-1047SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1048SS 3LHLN-1048SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1049SS 4LHLN-1049SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1050SS 4LHLN-1050SS/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1043-316 1LHLN-1043-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1044-316 1LHLN-1044-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1045-316 2LHLN-1045-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1046-316 2LHLN-1046-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1047-316 3LHLN-1047-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1048-316 3LHLN-1048-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1049-316 4LHLN-1049-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1050-316 4LHLN-1050-316/Asset/L-Handle--Hand-Retractable-Plunger-Locking--No-Patch-1.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
