L-Handle Non-Locking Nose Retractable Plungers without Nylon Patch
Retractable Plungers
L-Handle Non-Locking Nose Retractable Plunger without Nylon Patch

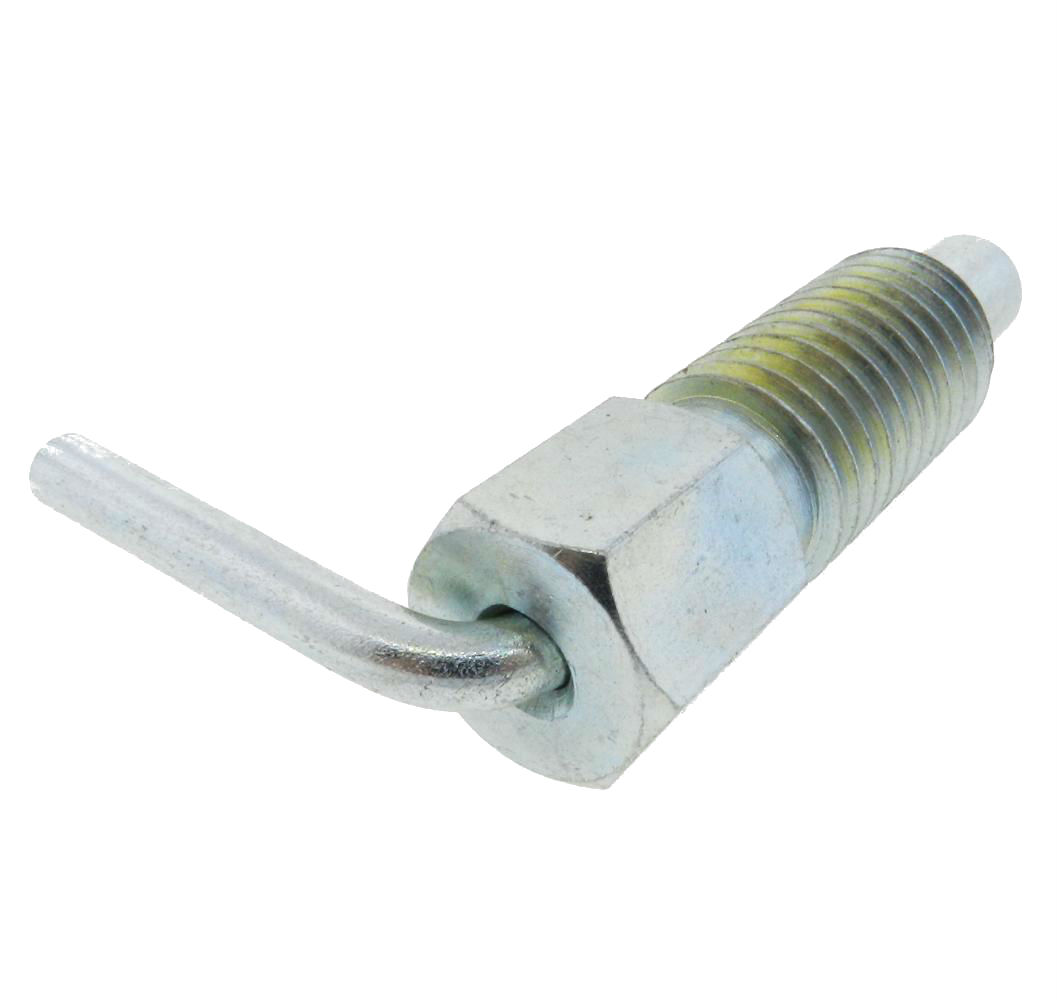

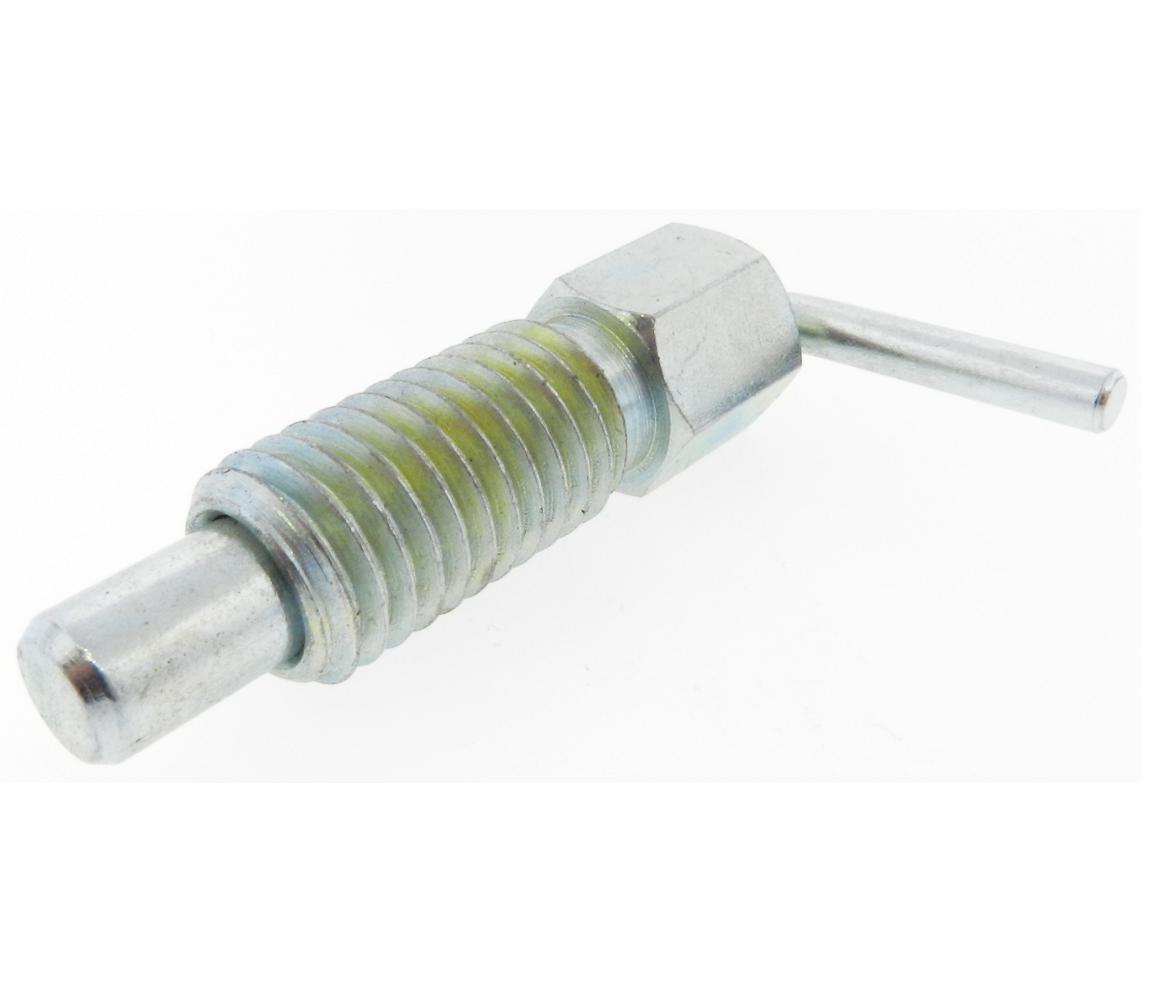

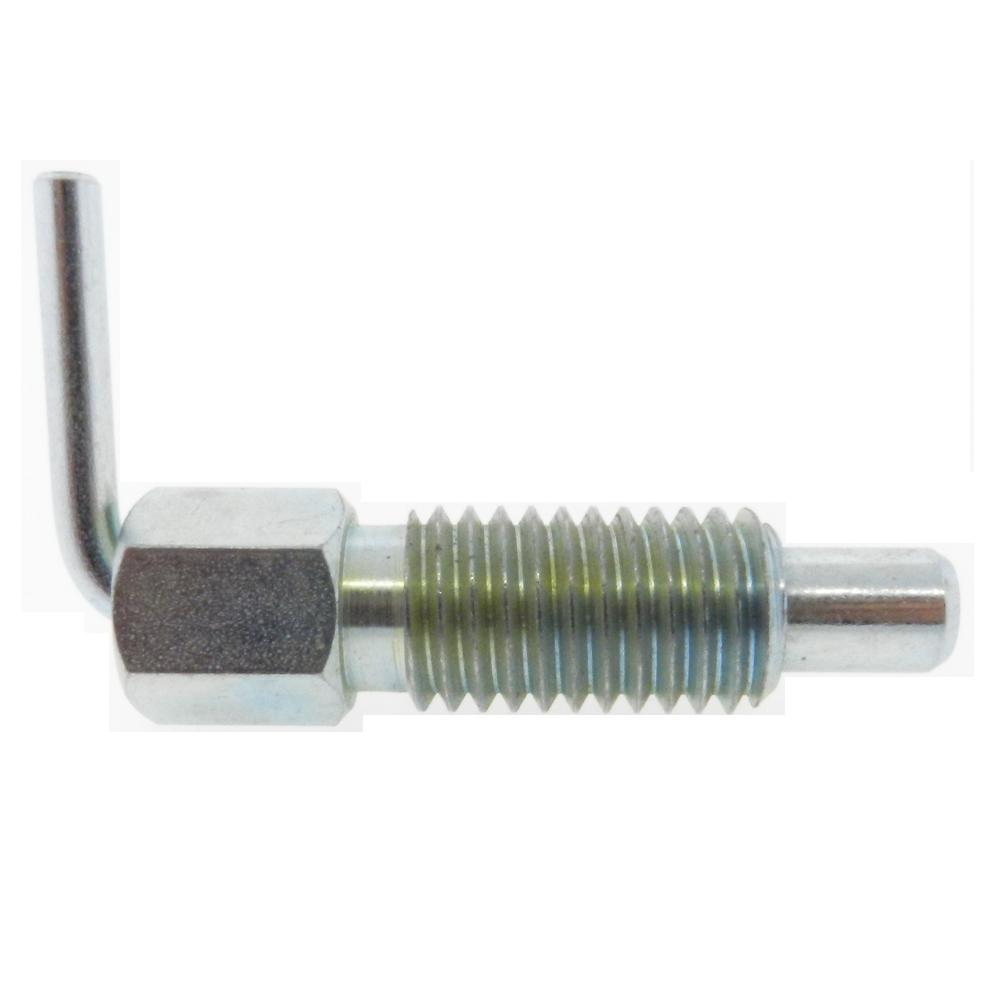

JBF National's l-handle non locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l-handle positioning flexibility. This model also comes available with a nylon nose, contact a JBF National sales engineer today to find out more.
JBF National's l-handle non locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l-handle positioning flexibility. This model also comes available with a nylon nose, contact a JBF National sales engineer today to find out more.
Item # |
Thread Size (A) |
Thread Length (H) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Hex Size (E) |
Handle Length (F) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1LHLN-1059 1LHLN-1059/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
 |
| 1LHLN-1060 1LHLN-1060/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1061 2LHLN-1061/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1062 2LHLN-1062/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1063 3LHLN-1063/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1064 3LHLN-1064/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1065 4LHLN-1065/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1066 4LHLN-1066/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1059SS 1LHLN-1059SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1060SS 1LHLN-1060SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1061SS 2LHLN-1061SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1062SS 2LHLN-1062SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1063SS 3LHLN-1063SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1064SS 3LHLN-1064SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1065SS 4LHLN-1065SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1066SS 4LHLN-1066SS/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 1LHLN-1059-316 1LHLN-1059-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
Drawings
|
| 1LHLN-1060-316 1LHLN-1060-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.80 in | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.38 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.50 in |
Drawings
|
| 2LHLN-1061-316 2LHLN-1061-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 0.75 in | Body Length (B) N/A 1.13 in | Nose Length (C) N/A 0.30 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.56 in |
Drawings
|
| 2LHLN-1062-316 2LHLN-1062-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 3/8-16 | Thread Length (H) N/A 1.31 in | Body Length (B) N/A 2.00 in | Nose Length (C) N/A 0.56 in | Nose Diameter (D) N/A 0.25 in | Hex Size (E) N/A 3/8 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1063-316 3LHLN-1063-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.00 in | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 0.40 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 0.75 in |
Drawings
|
| 3LHLN-1064-316 3LHLN-1064-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 1/2-13 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 2.11 in | Nose Length (C) N/A 0.75 in | Nose Diameter (D) N/A 0.310 in | Hex Size (E) N/A 1/2 in | Handle Length (F) N/A 1.00 in |
Drawings
|
| 4LHLN-1065-316 4LHLN-1065-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 1.25 in | Body Length (B) N/A 1.88 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 0.88 in |
Drawings
|
| 4LHLN-1066-316 4LHLN-1066-316/Asset/L-Handle--Hand-Retractable-Plunger-Non-Locking-Without-Patch-1A-.jpg | Thread Size (A) N/A 5/8-11 | Thread Length (H) N/A 2.00 in | Body Length (B) N/A 3.05 in | Nose Length (C) N/A 1.00 in | Nose Diameter (D) N/A 0.38 in | Hex Size (E) N/A 5/8 in | Handle Length (F) N/A 1.00 in |
