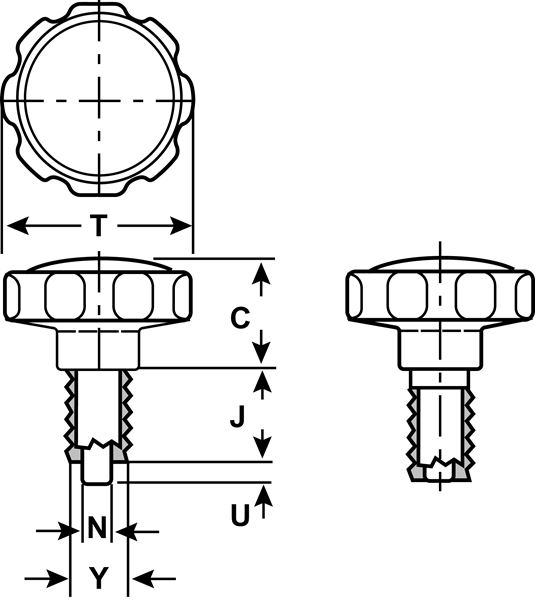

  • <!-Large Knob Retractable Plungers without Nylon Patch Line Drawing->
Large Knob Retractable Plungers without Nylon Patch

This large knob retractable plunger (also known as an indexing plunger) is manufactured with a high quality zinc plated steel threaded stud and black plastic knob. Nose retraction is accomplish via a simple pull action, and the large knob featured on this model ensures the highest amount of grip and control. This plunger has been designed and tested to withstand side loading.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension U

Dimension C

Drawings

N/A 4 mm N/A M8 x 1.25 N/A 25 mm N/A 15 mm N/A 5 mm N/A 20 mm

N/A 5 mm N/A M10 x 1.5 N/A 35 mm N/A 15 mm N/A 5.5 mm N/A 27 mm

N/A 8 mm N/A M16 x 1.5 N/A 55 mm N/A 27 mm N/A 6.5 mm N/A 32 mm
