L-Handle Non-Locking Nose Retractable Plungers with Nylon Patch
Retractable Plungers

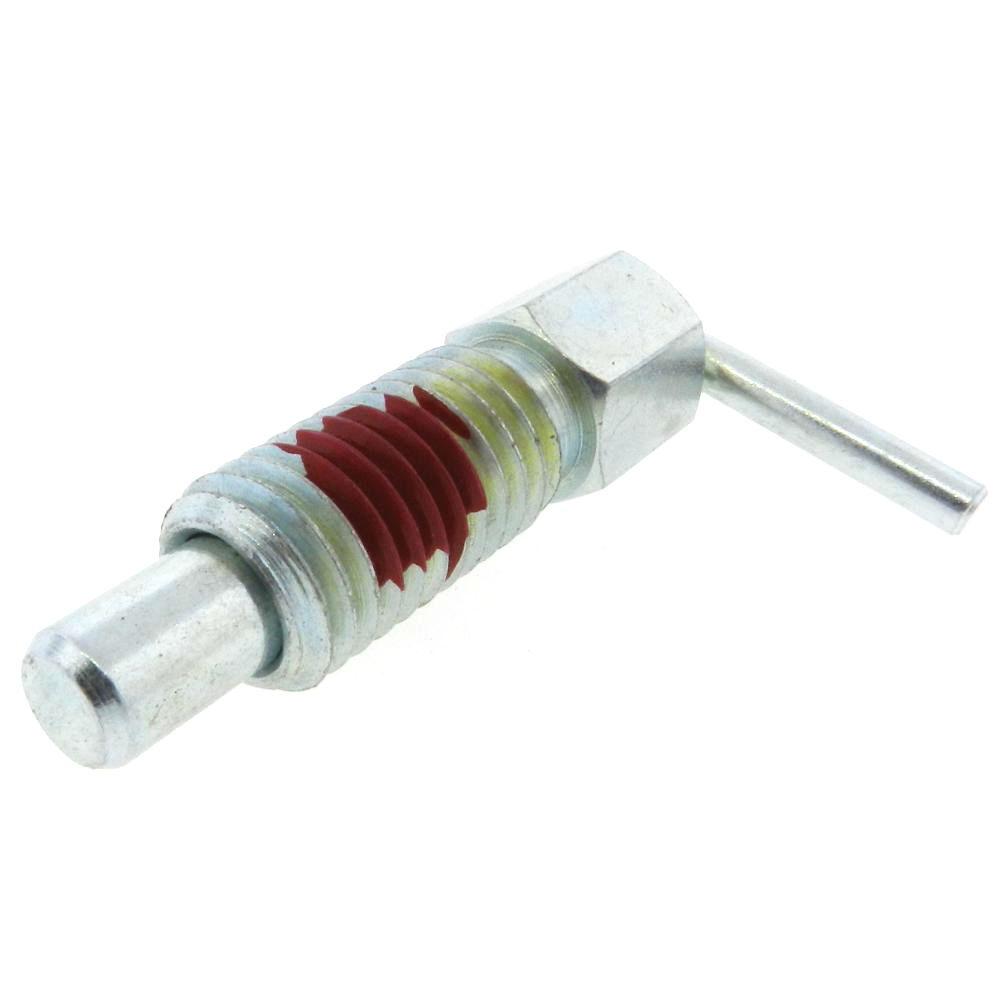

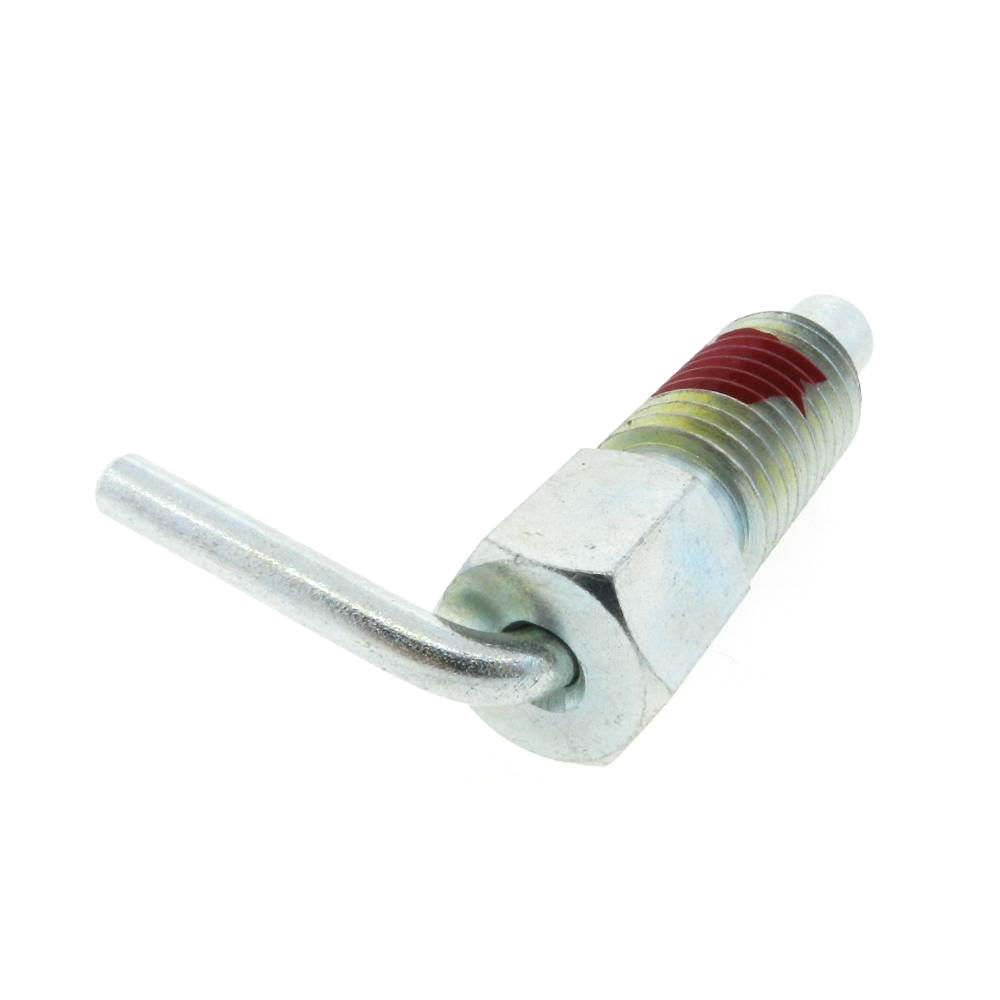

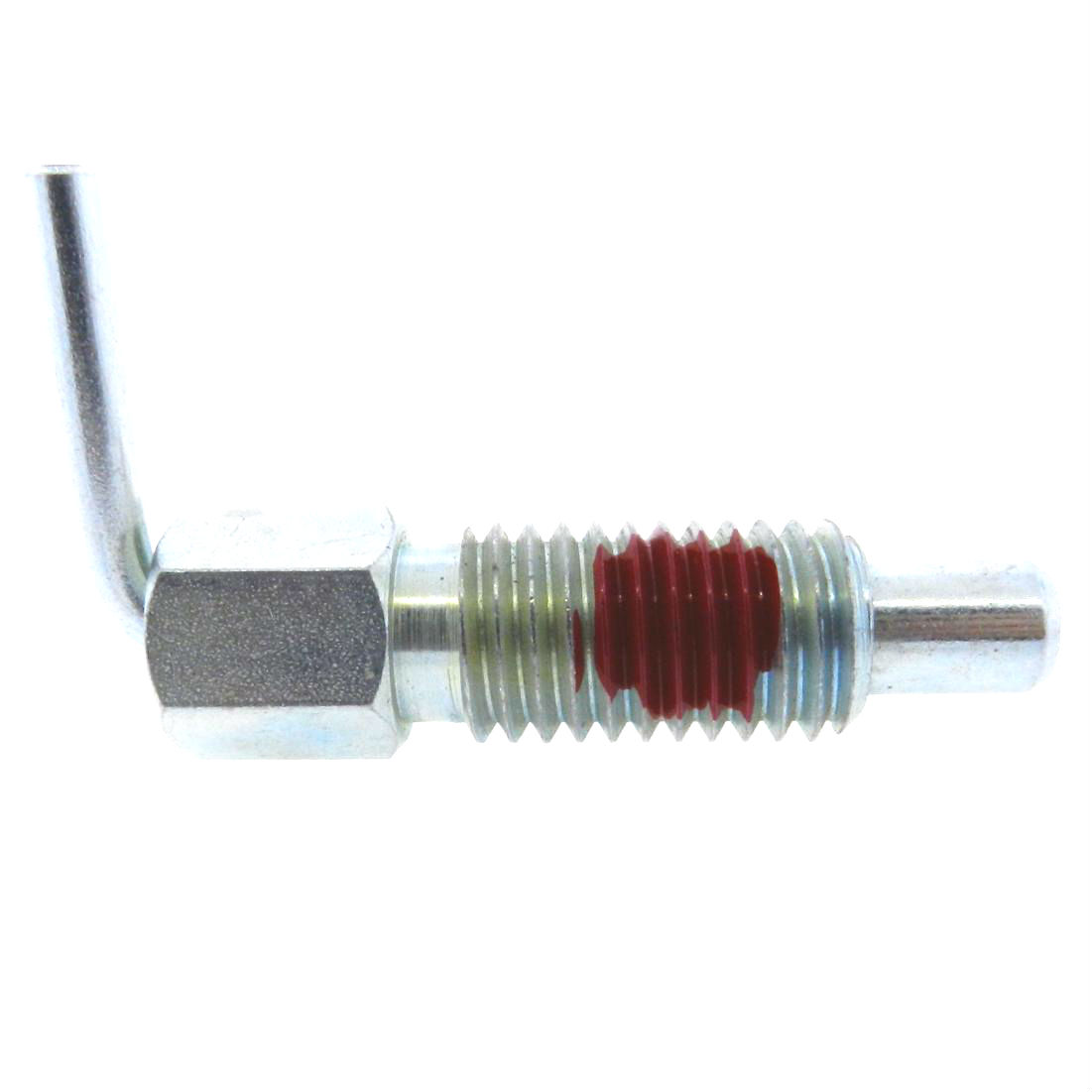

JBF National's l-handle non locking nose retractable plunger comes available in steel, 303 stainless steel, and 316 stainless steel. The l-handle features 360 degree rotation which allows for maximum l – handle positioning flexibility. This retractable plunger (also known as a hand retractable plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations. This model also comes available with a nylon nose, contact a JBF National sales engineer today to find out more.
Item # |
Thread Size (A) |
Thread Length (H) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Hex Size (E) |
Handle Length (F) |
Drawings |
|---|---|---|---|---|---|---|---|---|
| 1LHLN-1051 1LHLN-1051/Asset/L-Handle-Hand-Retractable-Plunger-NonLocking-Patch-01.jpg | Thread Size (A) N/A 1/4-20 | Thread Length (H) N/A 0.50 in | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.20 in | Nose Diameter (D) N/A 0.16 in | Hex Size (E) N/A 1/4 in | Handle Length (F) N/A 0.40 in |
