T-Handle Locking Nose Retractable Plungers with Nylon Patch
Retractable Plungers

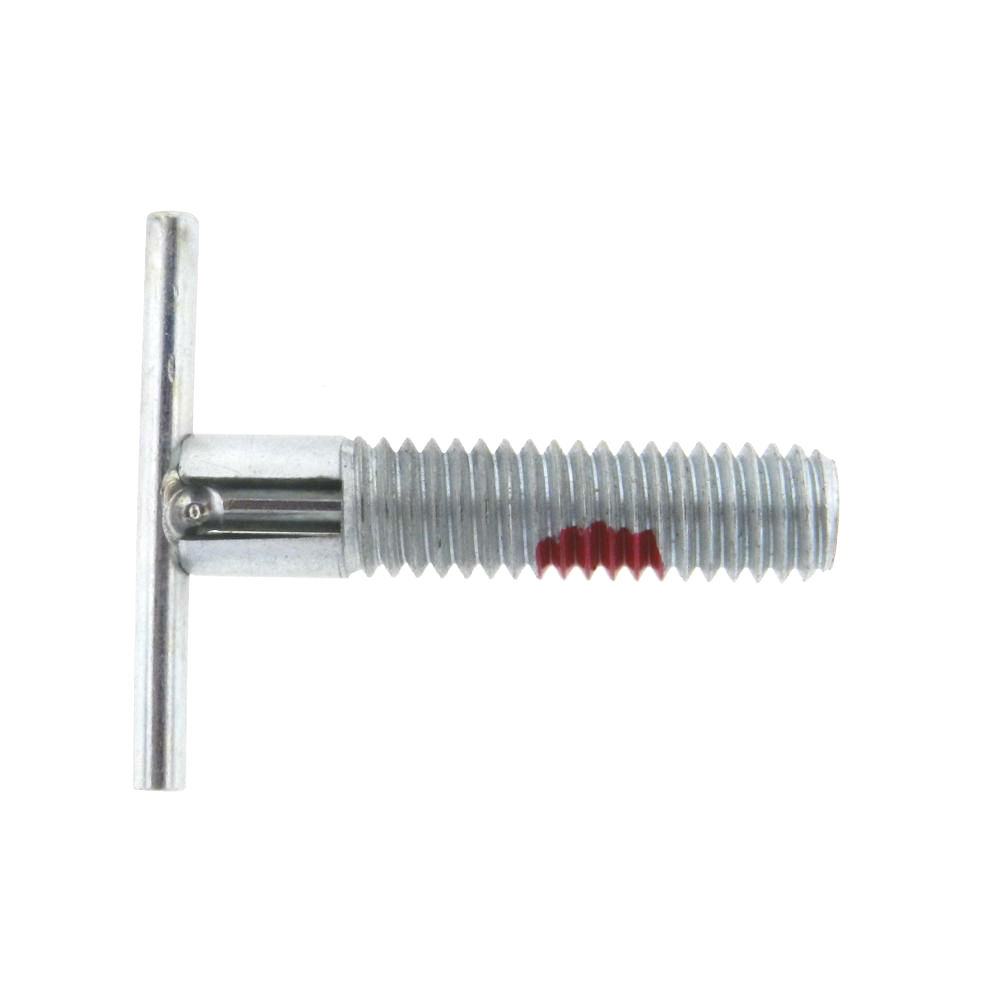

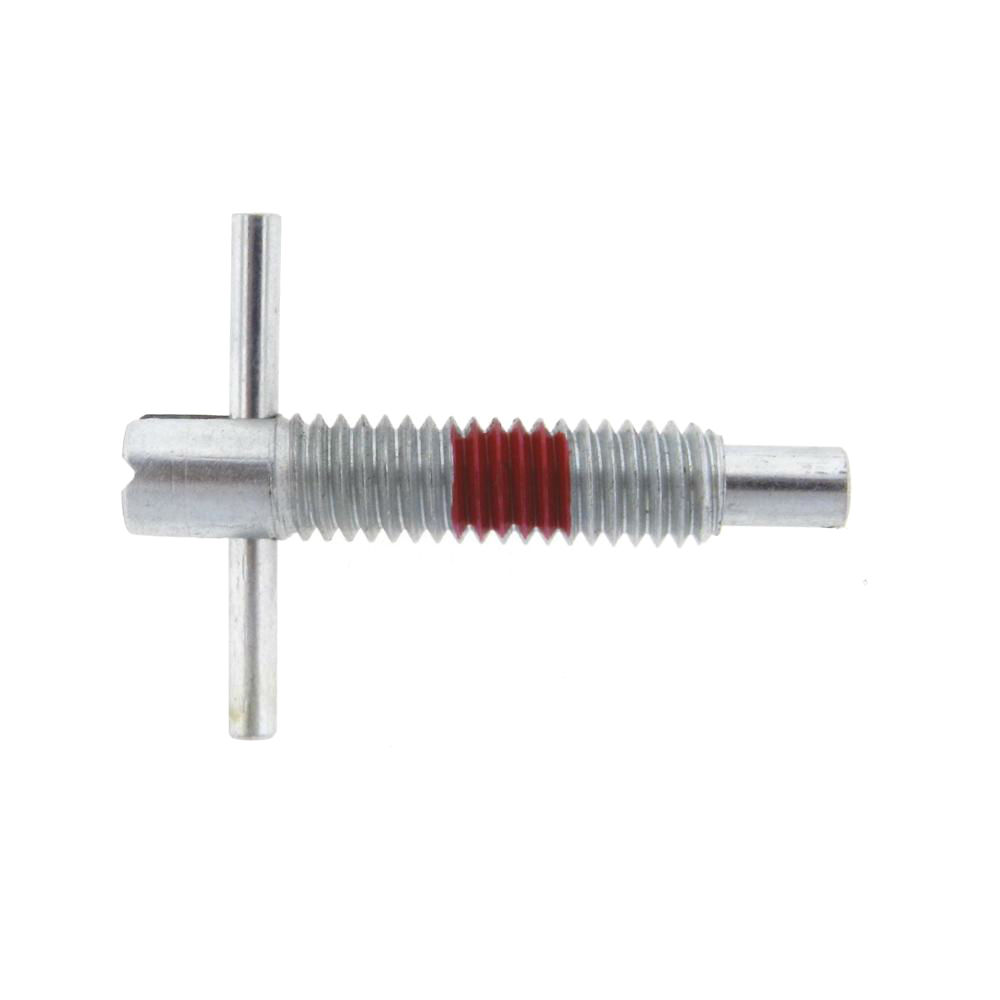

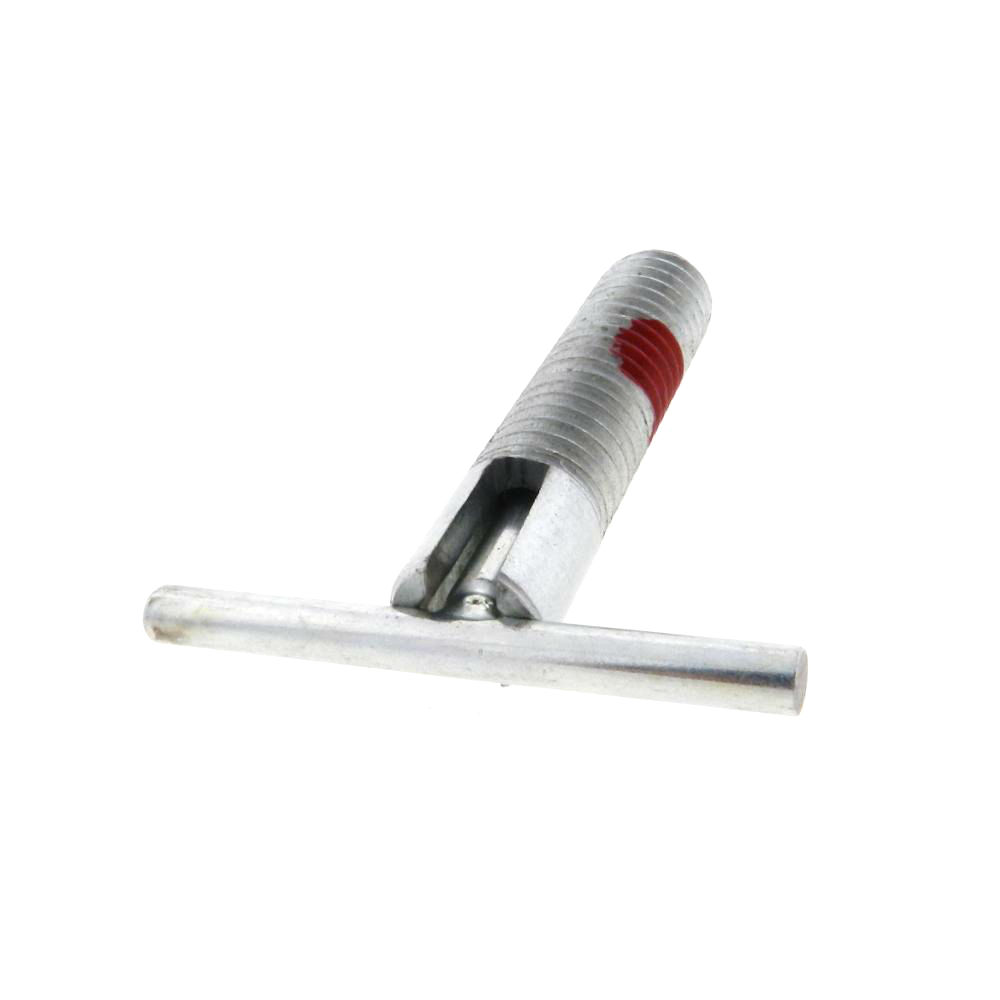

JBF National's t-handle locking nose retractable plunger comes available in steel, and 303 stainless steel. The t-handle design of this plunger ensures a quick and positive finger grip each time. A simple pull and twist of the t-handle engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger (also known as an indexing plunger) also features a nylon thread coating to ensure ultimate thread locking in heavy vibration situations, and a radiused Acetal nose for maximum hole engagement, and is designed and tested to withstand side loading.
Item # |
Thread (A) |
Body Length (B) |
Thread Length (C) |
Nose Length (D) |
Nose Diameter (E) |
Drawings |
|---|---|---|---|---|---|---|
| 1TLP-1115 1TLP-1115/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 1.14 in | Thread Length (C) N/A 0.80 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.155 in |
Drawings
![]() |
| 1TLP-1116 1TLP-1116/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 1.68 in | Thread Length (C) N/A 1.20 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.233 in |
Drawings
![]() |
| 1TLP-1117 1TLP-1117/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 2.00 in | Thread Length (C) N/A 1.40 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.312 in |
Drawings
![]() |
| 1TLP-1118 1TLP-1118/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 2.38 in | Thread Length (C) N/A 1.70 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.375 in |
Drawings
![]() |
| 1TLP-1115SS 1TLP-1115SS/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 1.14 in | Thread Length (C) N/A 0.80 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.155 in |
Drawings
![]() |
| 1TLP-1116SS 1TLP-1116SS/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 1.68 in | Thread Length (C) N/A 1.20 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.233 in |
Drawings
![]() |
| 1TLP-1117SS 1TLP-1117SS/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 2.00 in | Thread Length (C) N/A 1.40 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.312 in |
Drawings
![]() |
| 1TLP-1118SS 1TLP-1118SS/Asset/T-Handle-Hand-Retractable-Plunger--Locking-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 2.38 in | Thread Length (C) N/A 1.70 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.375 in |
Drawings
![]() |
