Standard Pull Ring Non Locking Nose Retractable Plungers with Nylon Patch On JBF National

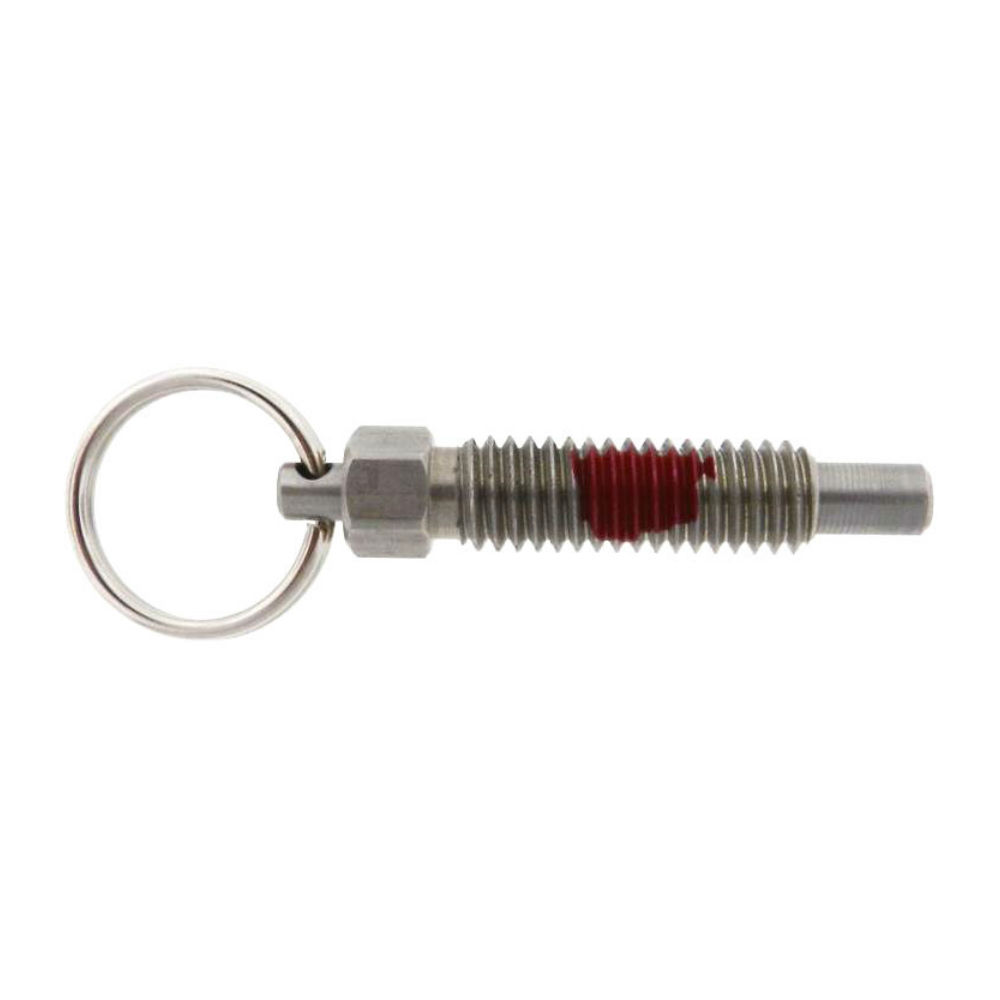

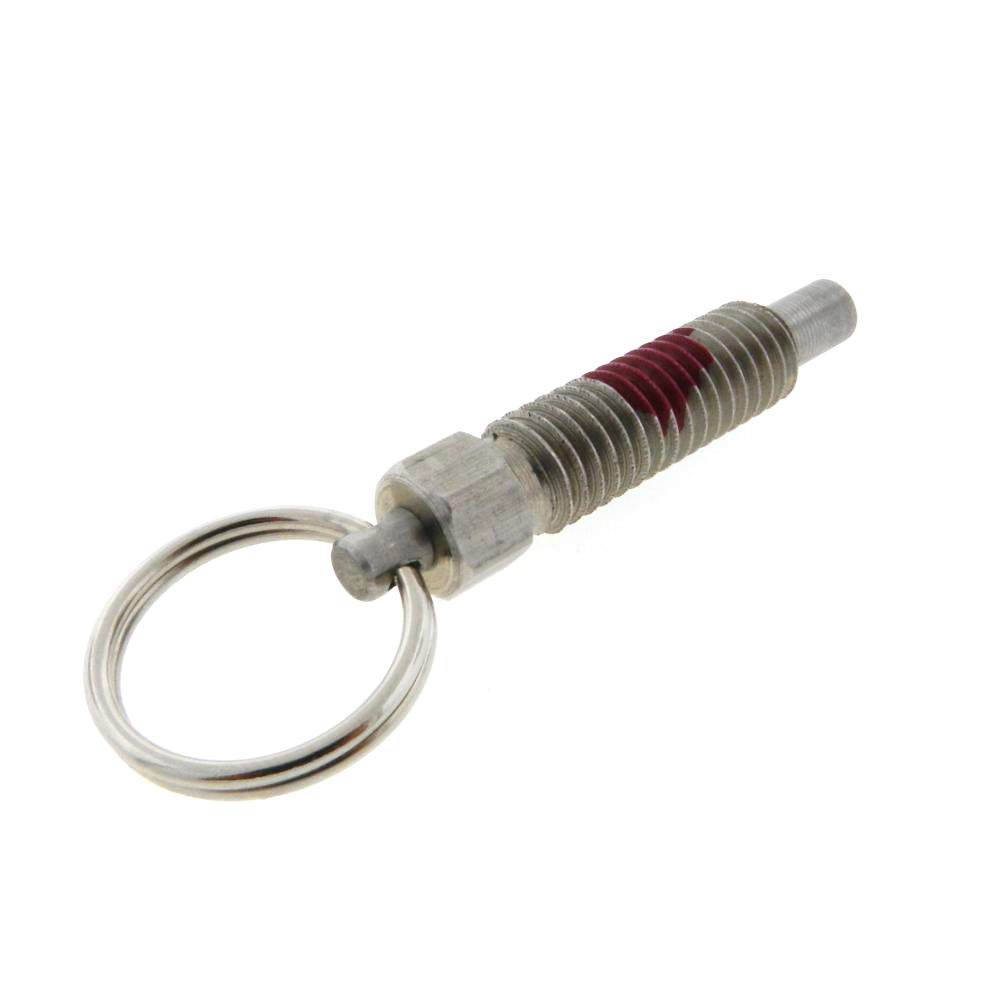

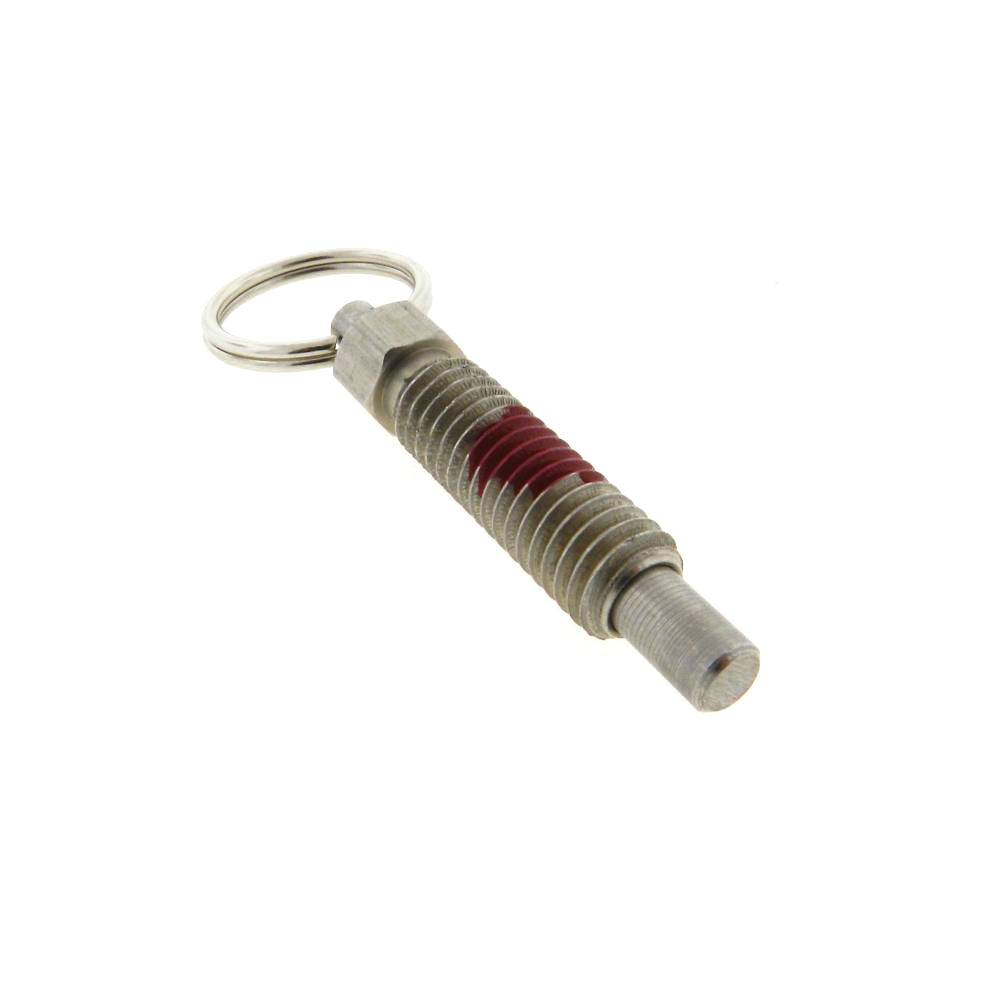

JBF National's standard pull ring non locking nose retractable plunger comes available in 12L15 zinc plated steel, 303 stainless steel, and brass. This retractable plunger (also known as an indexing plunger) features a nylon thread coating to ensure ultimate thread locking, and a radiused Acetal nose for maximum hole engagement. The flexibility of the pull ring allows for upward and downward movement to make folding away the pull ring as needed, no problem as all. This retractable plunger has been designed and tested to withstand side loading.

1 - 18 of 18 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Thread (A)

Body Length (B) (in)

Thread Length (C) (in)

Nose Length (D) (in)

Nose Diameter (E) (in)

Ring Diameter (F) (in)

Start End Force (lb)

Final End Force (lb)

Item #	Thread (A)	Body Length (B)	Thread Length (C)	Nose Length (D)	Nose Diameter (E)	Ring Diameter (F)

1SPRLN-1079	N/A 1/4-20	N/A 1.14 in	N/A 0.80 in	N/A 0.25 in	N/A 0.155 in	N/A 7/8 in
1SPRLN-1080	N/A 3/8-16	N/A 1.68 in	N/A 1.20 in	N/A 0.375 in	N/A 0.233 in	N/A 7/8 in
1SPRLN-1081	N/A 1/2-13	N/A 2.00 in	N/A 1.40 in	N/A 0.500 in	N/A 0.312 in	N/A 1 in
1SPRLN-1082	N/A 5/8-11	N/A 3.35 in	N/A 2.27 in	N/A 0.550 in	N/A 0.312 in	N/A 1-1/4 in
1SPRLN-1083	N/A 3/4-10	N/A 4.06 in	N/A 2.69 in	N/A 0.650 in	N/A 0.430 in	N/A 1-3/8 in
1SPRLN-1084	N/A 1-8	N/A 4.63 in	N/A 3.25 in	N/A 0.900 in	N/A 0.680 in	N/A 1-3/8 in
1SPRLN-1079SS	N/A 1/4-20	N/A 1.14 in	N/A 0.80 in	N/A 0.25 in	N/A 0.155 in	N/A 7/8 in
1SPRLN-1080SS	N/A 3/8-16	N/A 1.68 in	N/A 1.20 in	N/A 0.375 in	N/A 0.233 in	N/A 7/8 in
1SPRLN-1081SS	N/A 1/2-13	N/A 2.00 in	N/A 1.40 in	N/A 0.500 in	N/A 0.312 in	N/A 1 in
1SPRLN-1082SS	N/A 5/8-11	N/A 3.35 in	N/A 2.27 in	N/A 0.550 in	N/A 0.312 in	N/A 1-1/4 in
1SPRLN-1083SS	N/A 3/4-10	N/A 4.06 in	N/A 2.69 in	N/A 0.650 in	N/A 0.430 in	N/A 1-3/8 in
1SPRLN-1084SS	N/A 1-8	N/A 4.63 in	N/A 3.25 in	N/A 0.900 in	N/A 0.680 in	N/A 1-3/8 in
1BPRLN-1079	N/A 1/4-20	N/A 1.14 in	N/A 0.80 in	N/A 0.25 in	N/A 0.155 in	N/A 7/8 in
1BPRLN-1080	N/A 3/8-16	N/A 1.68 in	N/A 1.20 in	N/A 0.375 in	N/A 0.233 in	N/A 7/8 in
1BPRLN-1081	N/A 1/2-13	N/A 2.00 in	N/A 1.40 in	N/A 0.500 in	N/A 0.312 in	N/A 1 in
1BPRLN-1082	N/A 5/8-11	N/A 3.35 in	N/A 2.27 in	N/A 0.550 in	N/A 0.312 in	N/A 1-1/4 in
1BPRLN-1083	N/A 3/4-10	N/A 4.06 in	N/A 2.69 in	N/A 0.650 in	N/A 0.430 in	N/A 1-3/8 in
1BPRLN-1084	N/A 1-8	N/A 4.63 in	N/A 3.25 in	N/A 0.900 in	N/A 0.680 in	N/A 1-3/8 in
