Plastic T-Handle Retractable Plungers
Retractable Plungers
These T-handle retractable plungers have been designed and tested for maximum durability and are manufactured from the highest quality materials. These retractable plungers feature zinc plated steel pins and non-plated steel barrels, and are perfect for telescoping applications. The T-handle is manufactured from an ultra-tough black polypropylene for added reliability. Ball knob version also available.

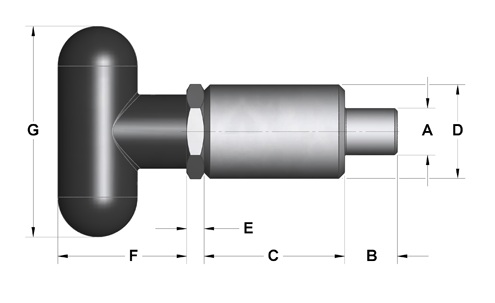

Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Dimension G |
Drawings |
|---|---|---|---|---|---|---|---|---|
| TPOP-4700 TPOP-4700/Asset/IMG_6812-Finished_0.jpg | Dimension A N/A 0.375 in | Dimension B N/A 0.600 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.4 in | Dimension G N/A 2.2 in |
Drawings
 |
| TPOP-4701 TPOP-4701/Asset/IMG_6812-Finished_0.jpg | Dimension A N/A 0.500 in | Dimension B N/A 7/8 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.4 in | Dimension G N/A 2.2 in |
Drawings
|
| TPOP-4702 TPOP-4702/Asset/IMG_6812-Finished_0.jpg | Dimension A N/A 0.500 in | Dimension B N/A 0.610 in | Dimension C N/A 1.5 in | Dimension D N/A 1 in | Dimension E N/A 0.27 in | Dimension F N/A 1.4 in | Dimension G N/A 2.2 in |
Drawings
|
