Pull Knob Locking Nose Imperial Retractable Plungers without Nylon Patch

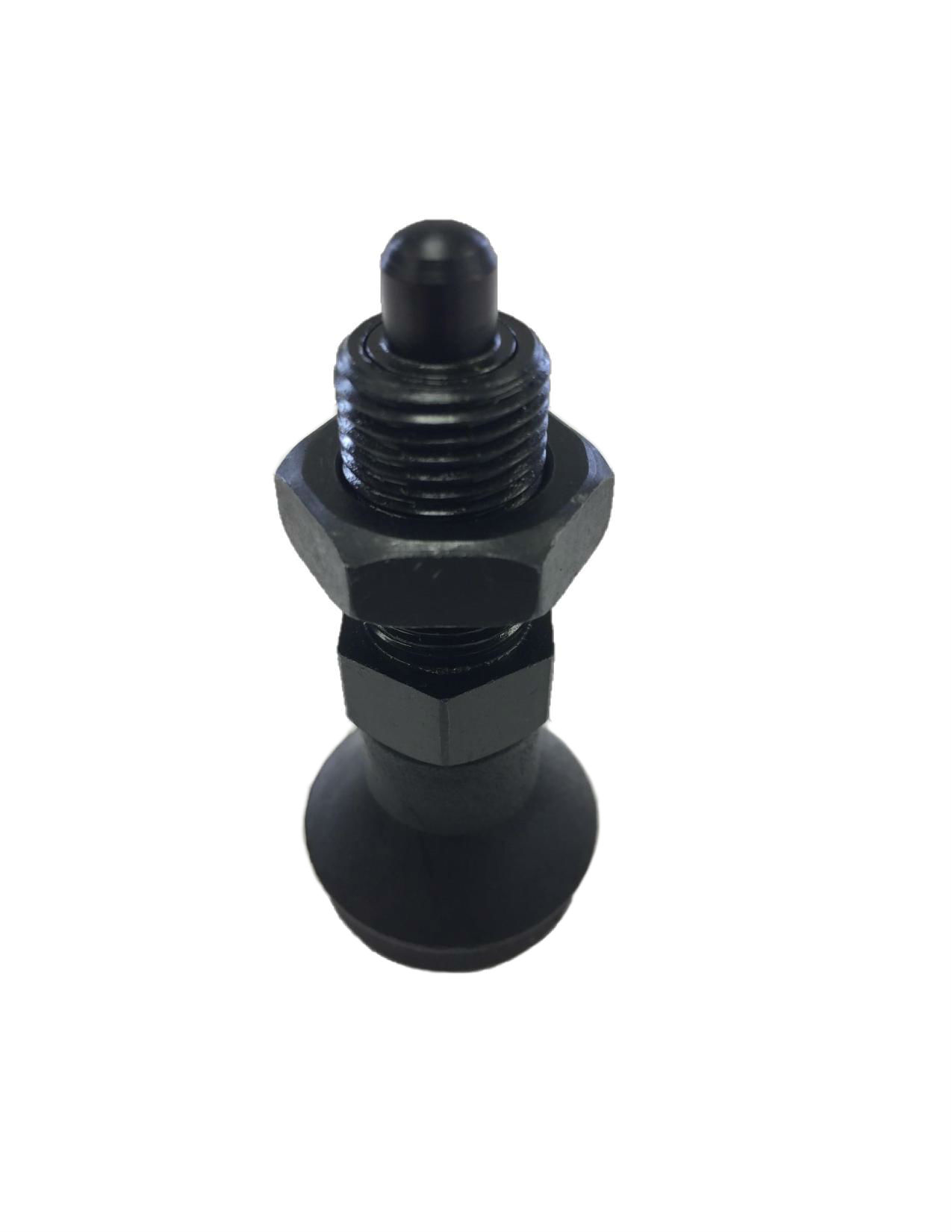

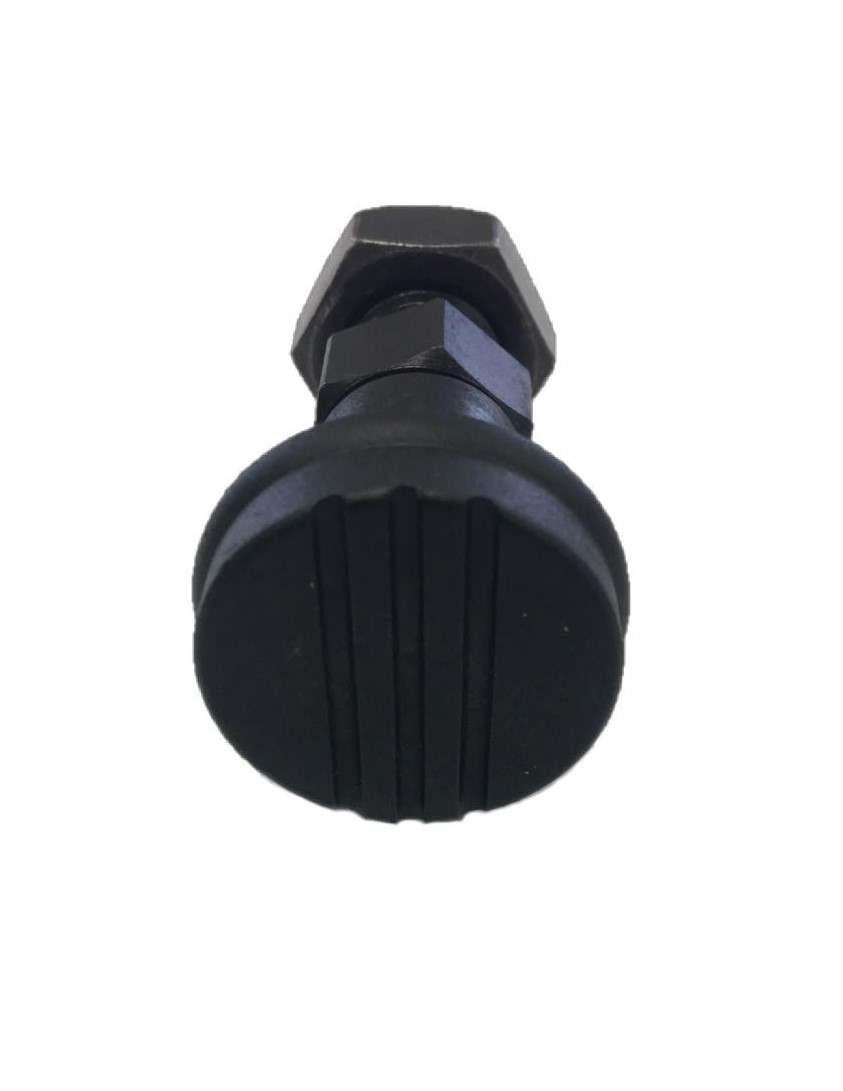

The body and threaded stud of this retractable plunger (also known as an indexing plunger) are manufactured from the highest quality steel with a pull knob comprised of an ultra-tough plastic. A simple 90 degree twist engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This plunger has been designed and tested to withstand side loading and is available in inch and metric sizes.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Thread Size (A)	Thread Length (C)	Body Length (B)	Overall Length (OAL)	Pin Diameter (E)	Pin Length (D)

IPG-106	N/A 5/8-11	N/A 0.9055 in	N/A 2.60 in	N/A 2.9134 in	N/A 0.3150 in	N/A 0.3150 in
IPG-107	N/A 5/8-11	N/A 0.9055 in	N/A 2.60 in	N/A 2.9134 in	N/A 0.3150 in	N/A 0.3150 in
IPG-108	N/A 3/8-24	N/A 0.5906 in	N/A 1.65 in	N/A 1.8504 in	N/A 0.1969 in	N/A 0.1969 in
IPG-109	N/A 3/8-24	N/A 0.5906 in	N/A 1.65 in	N/A 1.8504 in	N/A 0.1969 in	N/A 0.1969 in
IPG-110	N/A 1/2-13	N/A 0.6693 in	N/A 1.95 in	N/A 2.2047 in	N/A 0.2362 in	N/A 0.2362 in
IPG-111	N/A 1/2-13	N/A 0.6693 in	N/A 1.95 in	N/A 2.2047 in	N/A 0.2362 in	N/A 0.2362 in
