Standard Pull Ring Non Locking Nose Retractable Plungers without Nylon Patch
Retractable Plungers

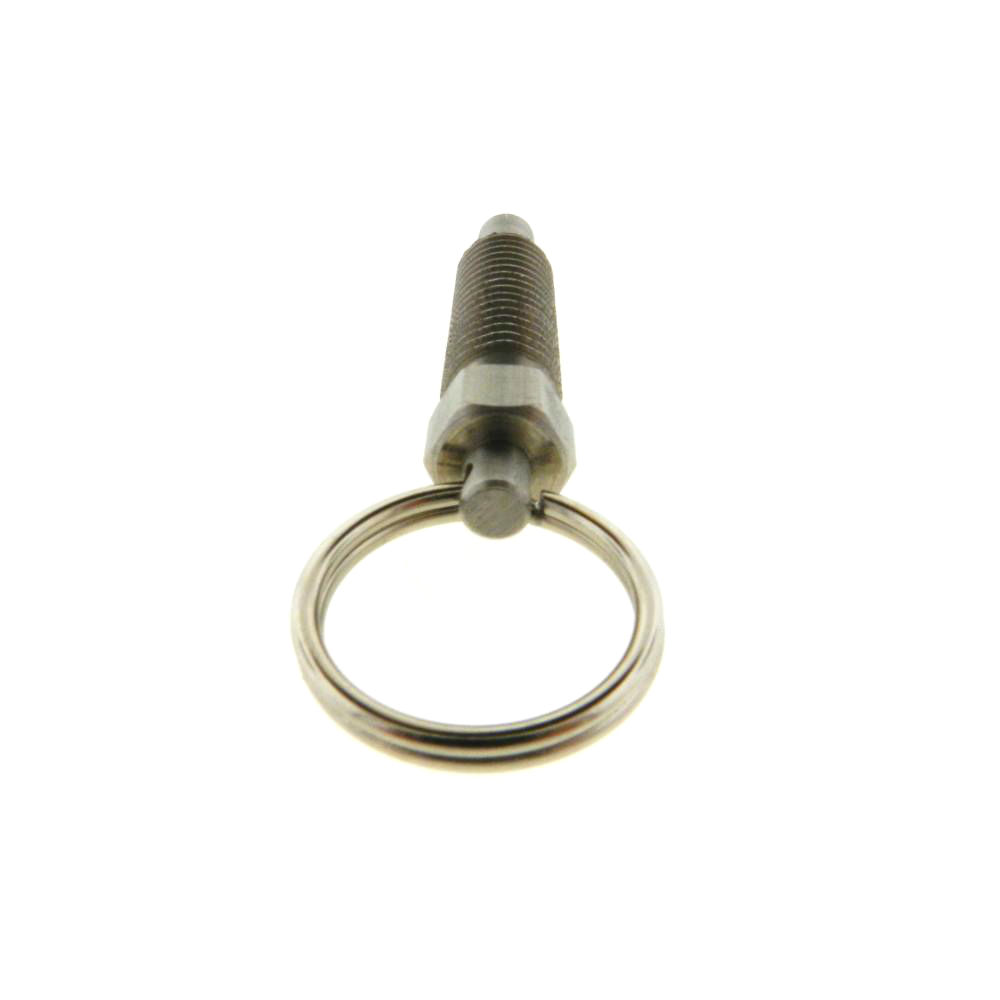

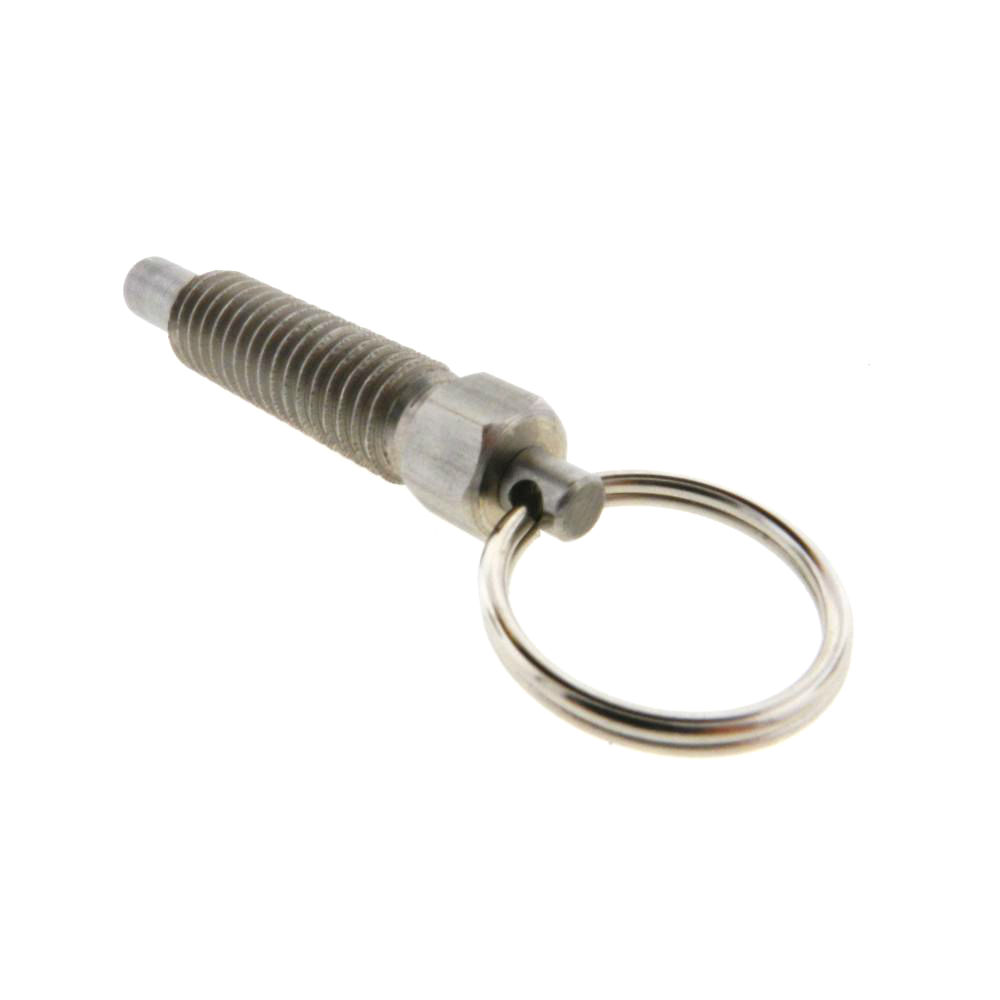

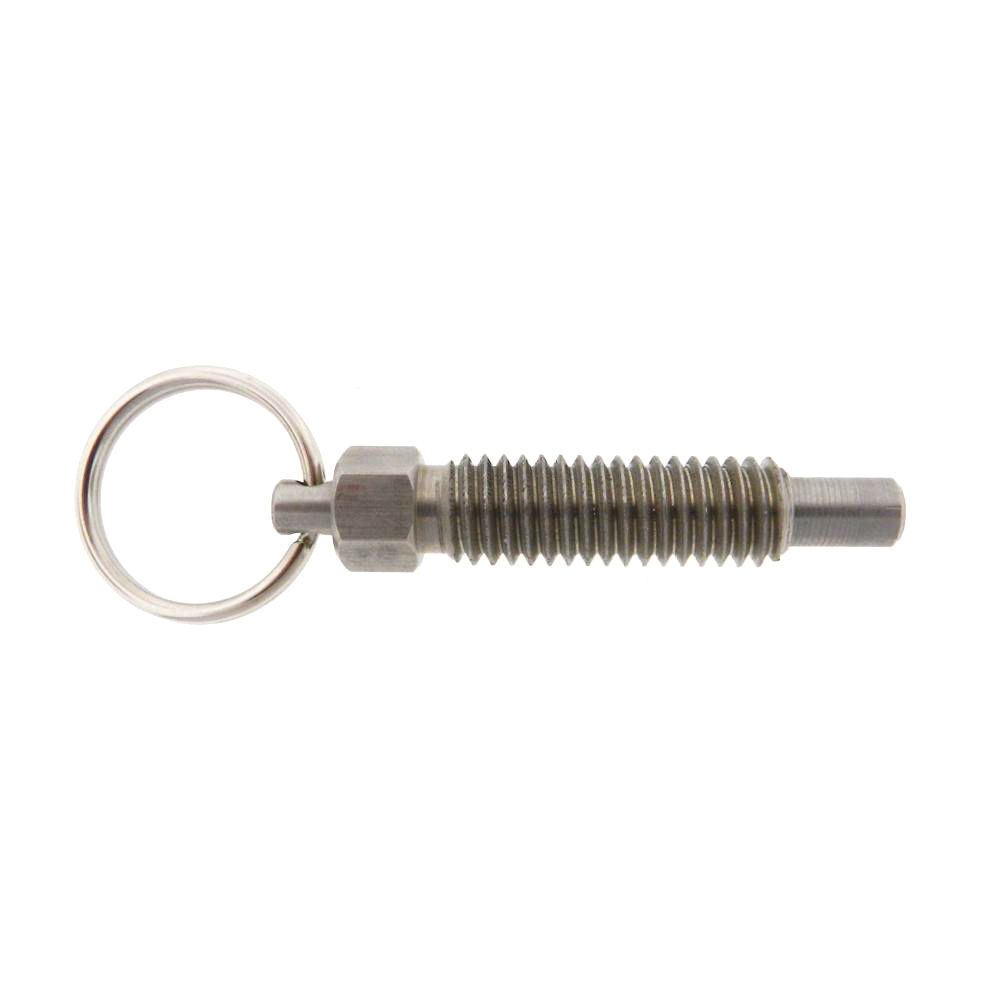

JBF National's standard pull ring non locking nose retractable plunger comes available in 12L15 zinc plated steel, 303 stainless steel, and brass. This retractable plunger (also known as a hand retractable plunger) features a radiused Delrin nose for maximum hole engagement. The flexibility of the pull ring allows for upward and downward movement to make folding away the pull ring as needed, no problem as all. This retractable plunger has been designed and tested to withstand side loading.
Item # |
Thread (A) |
Body Length (B) |
Thread Length (C) |
Nose Length (D) |
Nose Diameter (E) |
Ring Diameter (F) |
Drawings |
|---|---|---|---|---|---|---|---|
| 1SPRLN-1085 1SPRLN-1085/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 1.14 in | Thread Length (C) N/A 0.80 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.155 in | Ring Diameter (F) N/A 7/8 in |
Drawings
 |
| 1SPRLN-1086 1SPRLN-1086/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 1.68 in | Thread Length (C) N/A 1.20 in | Nose Length (D) N/A 0.375 in | Nose Diameter (E) N/A 0.233 in | Ring Diameter (F) N/A 7/8 in |
Drawings
|
| 1SPRLN-1087 1SPRLN-1087/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 2.00 in | Thread Length (C) N/A 1.40 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1SPRLN-1088 1SPRLN-1088/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 3.35 in | Thread Length (C) N/A 2.27 in | Nose Length (D) N/A 0.550 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1-1/4 in |
Drawings
|
| 1SPRLN-1089 1SPRLN-1089/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 4.06 in | Thread Length (C) N/A 2.69 in | Nose Length (D) N/A 0.650 in | Nose Diameter (E) N/A 0.430 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
| 1SPRLN-1090 1SPRLN-1090/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 4.63 in | Thread Length (C) N/A 3.25 in | Nose Length (D) N/A 0.900 in | Nose Diameter (E) N/A 0.680 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
| 1SPRLN-1085SS 1SPRLN-1085SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 1.14 in | Thread Length (C) N/A 0.80 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.155 in | Ring Diameter (F) N/A 7/8 in |
Drawings
|
| 1SPRLN-1086SS 1SPRLN-1086SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 1.68 in | Thread Length (C) N/A 1.20 in | Nose Length (D) N/A 0.375 in | Nose Diameter (E) N/A 0.233 in | Ring Diameter (F) N/A 7/8 in |
Drawings
|
| 1SPRLN-1087SS 1SPRLN-1087SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 2.00 in | Thread Length (C) N/A 1.40 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1SPRLN-1088SS 1SPRLN-1088SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 3.35 in | Thread Length (C) N/A 2.27 in | Nose Length (D) N/A 0.550 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1-1/4 in |
Drawings
|
| 1SPRLN-1089SS 1SPRLN-1089SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 4.06 in | Thread Length (C) N/A 2.69 in | Nose Length (D) N/A 0.650 in | Nose Diameter (E) N/A 0.430 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
| 1SPRLN-1090SS 1SPRLN-1090SS/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 4.63 in | Thread Length (C) N/A 3.25 in | Nose Length (D) N/A 0.900 in | Nose Diameter (E) N/A 0.680 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
| 1BPRLN-1085 1BPRLN-1085/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 1.14 in | Thread Length (C) N/A 0.80 in | Nose Length (D) N/A 0.25 in | Nose Diameter (E) N/A 0.155 in | Ring Diameter (F) N/A 7/8 in |
Drawings
|
| 1BPRLN-1086 1BPRLN-1086/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 1.68 in | Thread Length (C) N/A 1.20 in | Nose Length (D) N/A 0.375 in | Nose Diameter (E) N/A 0.233 in | Ring Diameter (F) N/A 7/8 in |
Drawings
|
| 1BPRLN-1087 1BPRLN-1087/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 2.00 in | Thread Length (C) N/A 1.40 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1BPRLN-1088 1BPRLN-1088/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 3.35 in | Thread Length (C) N/A 2.27 in | Nose Length (D) N/A 0.550 in | Nose Diameter (E) N/A 0.312 in | Ring Diameter (F) N/A 1-1/4 in |
Drawings
|
| 1BPRLN-1089 1BPRLN-1089/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 4.06 in | Thread Length (C) N/A 2.69 in | Nose Length (D) N/A 0.650 in | Nose Diameter (E) N/A 0.430 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
| 1BPRLN-1090 1BPRLN-1090/Asset/Hand-Retractable-Plunger--Standard-Pull-Ring-Non-Locking-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 4.63 in | Thread Length (C) N/A 3.25 in | Nose Length (D) N/A 0.900 in | Nose Diameter (E) N/A 0.680 in | Ring Diameter (F) N/A 1-3/8 in |
Drawings
|
