Stubby Pull Ring Locking Nose Retractable Plungers without Nylon Patch
Retractable Plungers

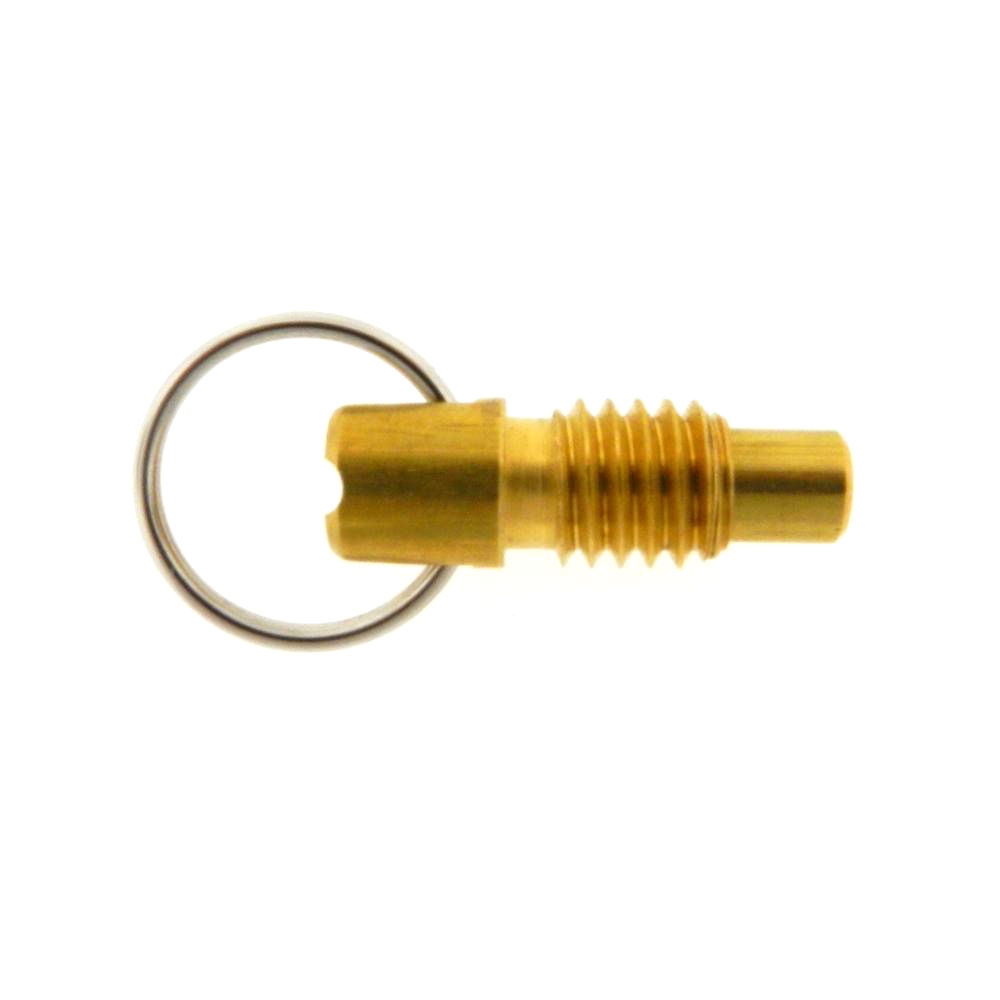

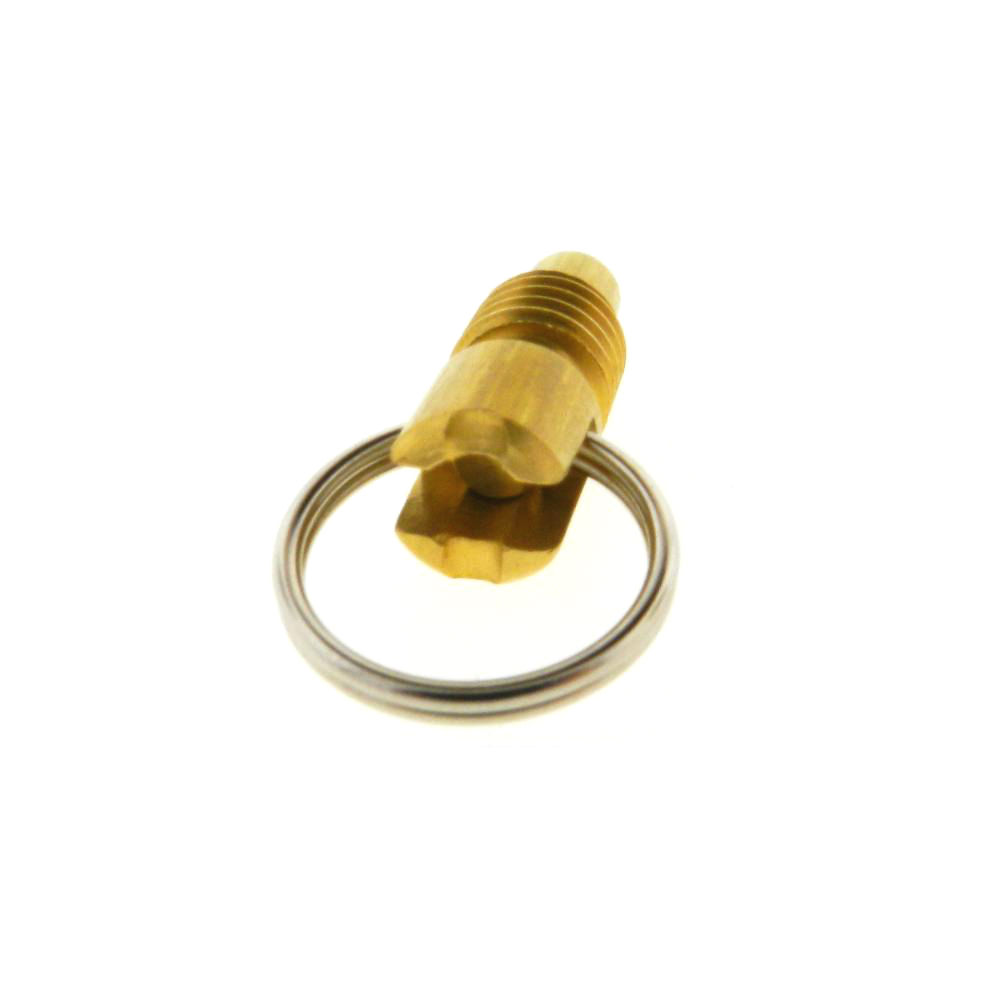

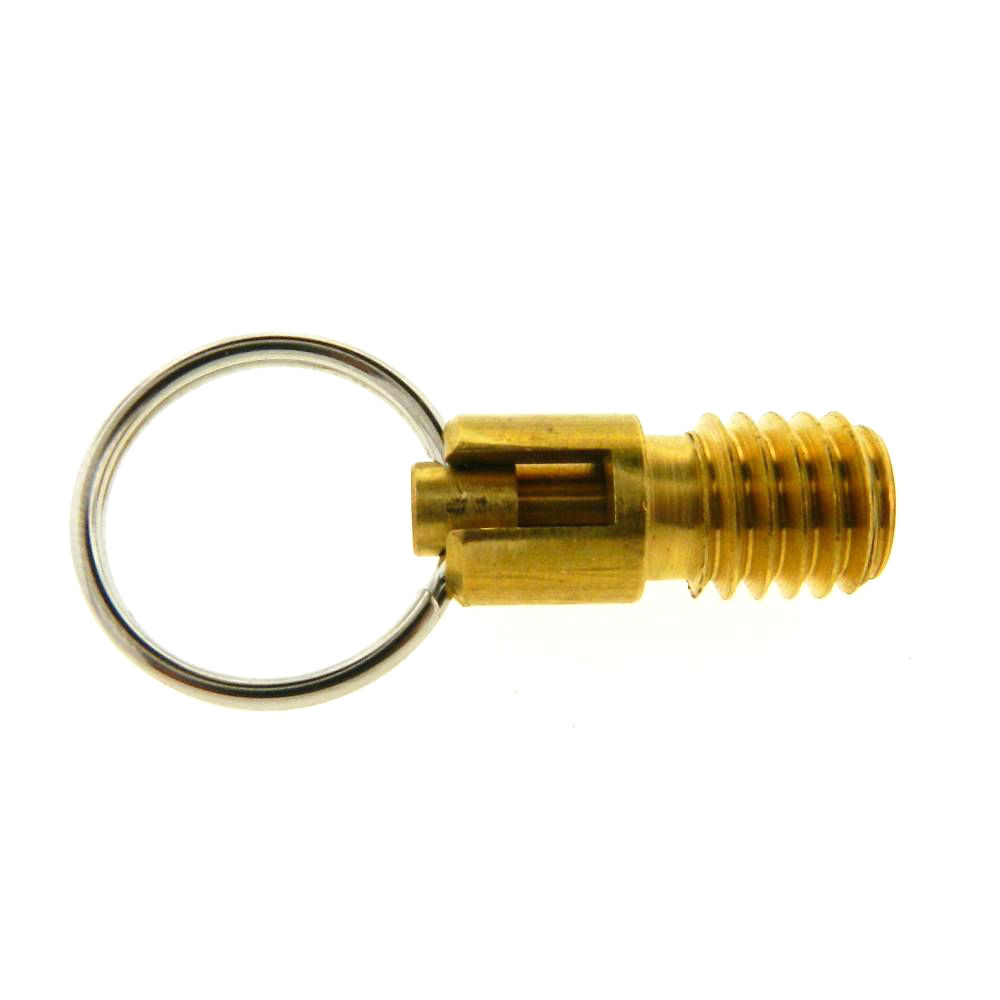

JBF National's stubby pull ring locking nose retractable plunger comes available in 12L15 zinc plated steel, 303 stainless steel, 316 Stainless Steel, and brass. Due to its truncated design, this retractable plunger (also known as an indexing plunger) style lends itself especially well to limited space situations and the flexibility of the pull ring allows for upward and downward movement to make folding away the pull ring as needed, no problem as all. A simple pull and twist of the pull ring engages the locking element, thereby holding the plunger in the retracted position until disengaged by a reverse twist. This retractable plunger also features a radiused Acetal nose for maximum hole engagement. Designed and tested to withstand side loading. Contact a JBF National sales engineer today for more information.
Item # |
Thread (A) |
Body Length (B) |
Thread Length (C) |
Nose Length (D) |
Nose Diameter (E) |
Ring Diameter (F) |
Drawings |
|---|---|---|---|---|---|---|---|
| 1RPS-1097 1RPS-1097/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 0.57 in | Thread Length (C) N/A 0.31 in | Nose Length (D) N/A 0.19 in | Nose Diameter (E) N/A 0.16 in | Ring Diameter (F) N/A 3/4 in |
Drawings
 |
| 1RPS-1098 1RPS-1098/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 0.82 in | Thread Length (C) N/A 0.44 in | Nose Length (D) N/A 0.28 in | Nose Diameter (E) N/A 0.25 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1RPS-1099 1RPS-1099/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 1.06 in | Thread Length (C) N/A 0.56 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.31 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1100 1RPS-1100/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 1.31 in | Thread Length (C) N/A 0.69 in | Nose Length (D) N/A 0.44 in | Nose Diameter (E) N/A 0.38 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1101 1RPS-1101/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 1.50 in | Thread Length (C) N/A 0.88 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.437 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1RPS-1102 1RPS-1102/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 1-3/4 in | Thread Length (C) N/A 1.00 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.5 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1RPS-1097SS 1RPS-1097SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 0.57 in | Thread Length (C) N/A 0.31 in | Nose Length (D) N/A 0.19 in | Nose Diameter (E) N/A 0.16 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1RPS-1098SS 1RPS-1098SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 0.82 in | Thread Length (C) N/A 0.44 in | Nose Length (D) N/A 0.28 in | Nose Diameter (E) N/A 0.25 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1RPS-1099SS 1RPS-1099SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 1.06 in | Thread Length (C) N/A 0.56 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.31 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1100SS 1RPS-1100SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 1.31 in | Thread Length (C) N/A 0.69 in | Nose Length (D) N/A 0.44 in | Nose Diameter (E) N/A 0.38 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1101SS 1RPS-1101SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 1.50 in | Thread Length (C) N/A 0.88 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.437 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1RPS-1102SS 1RPS-1102SS/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 1-3/4 in | Thread Length (C) N/A 1.00 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.5 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1RPS-1097-316 1RPS-1097-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 0.57 in | Thread Length (C) N/A 0.31 in | Nose Length (D) N/A 0.19 in | Nose Diameter (E) N/A 0.16 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1RPS-1098-316 1RPS-1098-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 0.82 in | Thread Length (C) N/A 0.44 in | Nose Length (D) N/A 0.28 in | Nose Diameter (E) N/A 0.25 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1RPS-1099-316 1RPS-1099-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 1.06 in | Thread Length (C) N/A 0.56 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.31 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1100-316 1RPS-1100-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 1.31 in | Thread Length (C) N/A 0.69 in | Nose Length (D) N/A 0.44 in | Nose Diameter (E) N/A 0.38 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1RPS-1101-316 1RPS-1101-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 1.50 in | Thread Length (C) N/A 0.88 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.437 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1RPS-1102-316 1RPS-1102-316/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 1-3/4 in | Thread Length (C) N/A 1.00 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.5 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1BRPS-1097 1BRPS-1097/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/4-20 | Body Length (B) N/A 0.57 in | Thread Length (C) N/A 0.31 in | Nose Length (D) N/A 0.19 in | Nose Diameter (E) N/A 0.16 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1BRPS-1098 1BRPS-1098/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/8-16 | Body Length (B) N/A 0.82 in | Thread Length (C) N/A 0.44 in | Nose Length (D) N/A 0.28 in | Nose Diameter (E) N/A 0.25 in | Ring Diameter (F) N/A 3/4 in |
Drawings
|
| 1BRPS-1099 1BRPS-1099/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1/2-13 | Body Length (B) N/A 1.06 in | Thread Length (C) N/A 0.56 in | Nose Length (D) N/A 0.38 in | Nose Diameter (E) N/A 0.31 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1BRPS-1100 1BRPS-1100/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 5/8-11 | Body Length (B) N/A 1.31 in | Thread Length (C) N/A 0.69 in | Nose Length (D) N/A 0.44 in | Nose Diameter (E) N/A 0.38 in | Ring Diameter (F) N/A 1 in |
Drawings
|
| 1BRPS-1101 1BRPS-1101/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 3/4-10 | Body Length (B) N/A 1.50 in | Thread Length (C) N/A 0.88 in | Nose Length (D) N/A 0.500 in | Nose Diameter (E) N/A 0.437 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
| 1BRPS-1102 1BRPS-1102/Asset/Stubby-Pull-Ring-Hand-Retractable-Plunger-Locking-No-Patch-01.jpg | Thread (A) N/A 1-8 | Body Length (B) N/A 1-3/4 in | Thread Length (C) N/A 1.00 in | Nose Length (D) N/A 0.63 in | Nose Diameter (E) N/A 0.5 in | Ring Diameter (F) N/A 1-1/8 in |
Drawings
|
