Phenolic Revolving Safety Handles
Revolving Handles

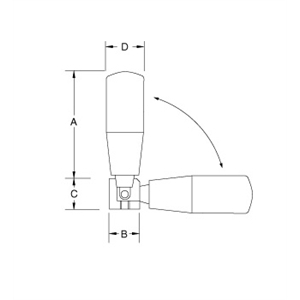

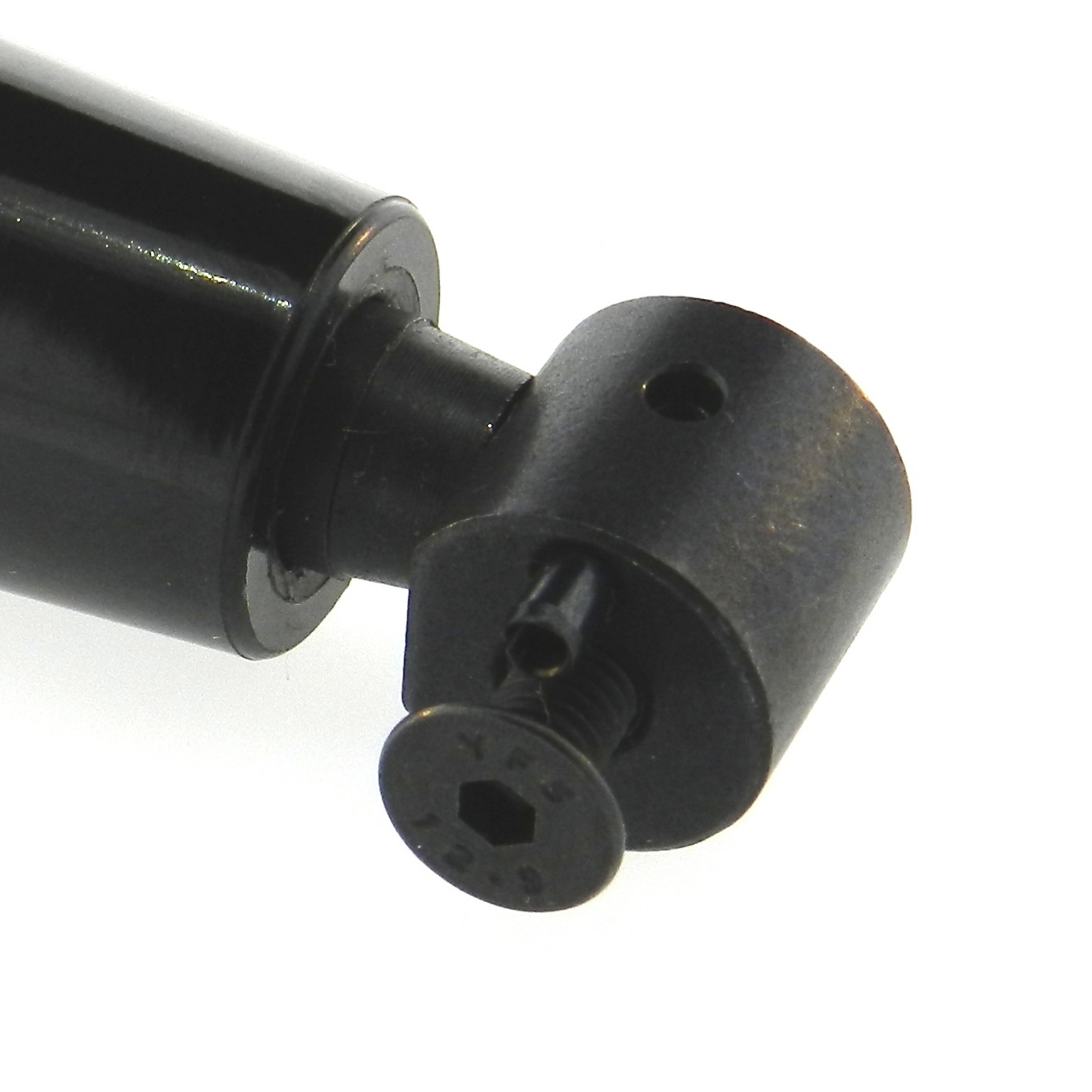

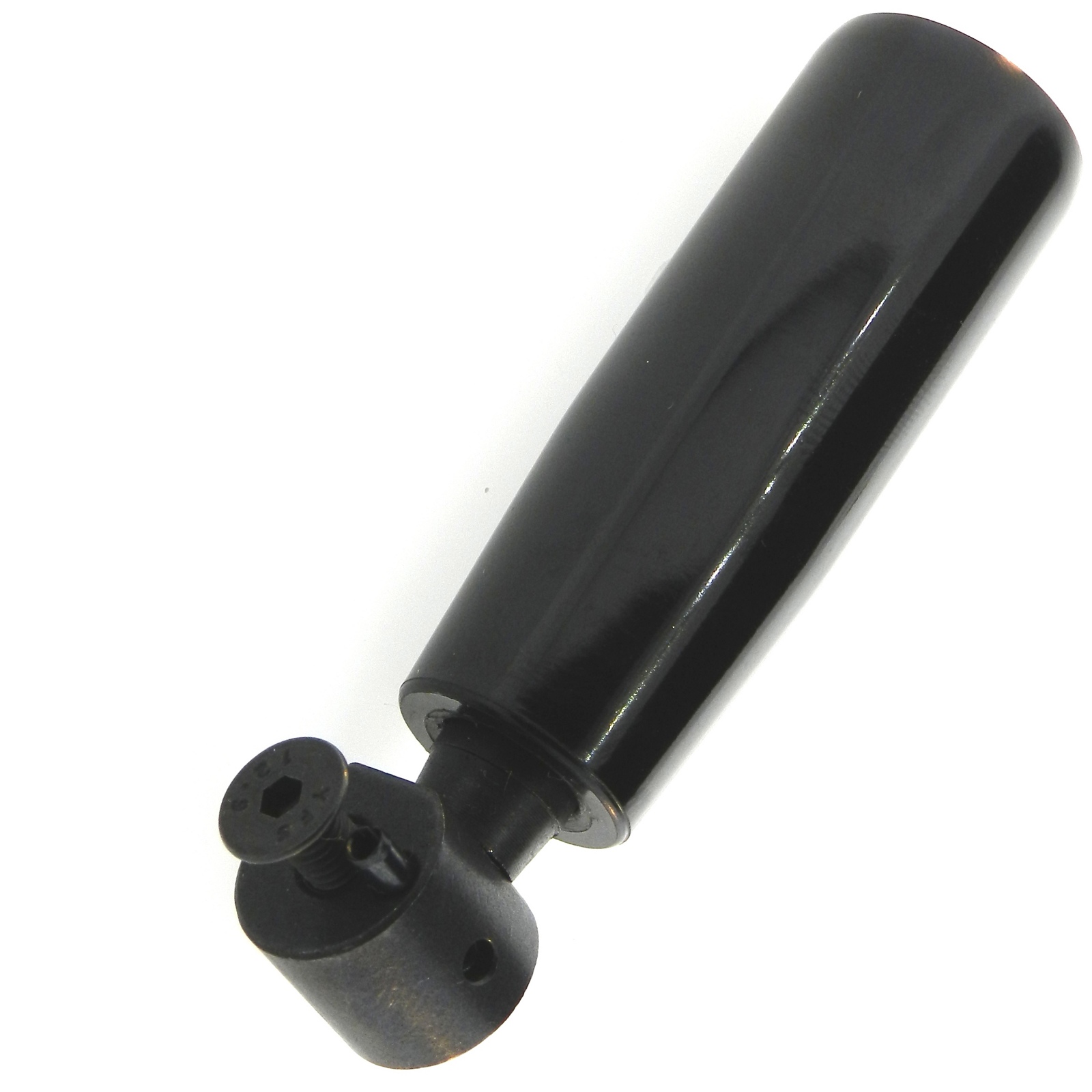

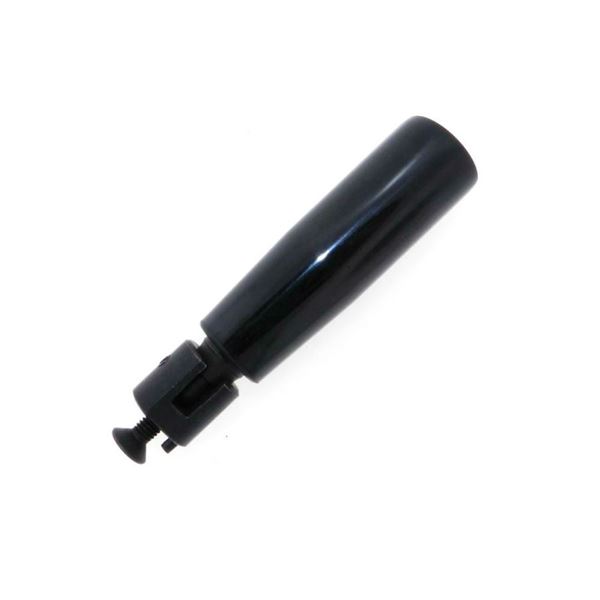

This revolving handle from JBF National features a high quality phenolic folding handle, with the handle base manufactured from black oxide coated sintered steel. This revolving handle also features a bottom tapped base and includes anti-rotation pin and mounting screw. Activating the folding mechanism is achieved by pulling the handle up from its base, whereupon released, folds downward 90 degrees to lock firmly into place. The folding feature yields the benefits of safety and accessibility to any application. Also available in stainless steel. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Spindle Material |
Drawings |
|---|---|---|---|---|---|---|
| 1PRSH-1037 1PRSH-1037/Asset/Phenolic-revolving-safety-handle-.jpg | Dimension A N/A 1.97 in | Dimension B N/A 0.63 in | Dimension C N/A 0.59 in | Dimension D N/A 0.83 in | Spindle Material N/A Steel |
Drawings
![]() |
| 2PRSH-1038 2PRSH-1038/Asset/Phenolic-revolving-safety-handle-.jpg | Dimension A N/A 2.56 in | Dimension B N/A 0.63 in | Dimension C N/A 0.59 in | Dimension D N/A 0.86 in | Spindle Material N/A Steel |
Drawings
![]() |
| 2PRSH-1039 2PRSH-1039/Asset/Phenolic-revolving-safety-handle-.jpg | Dimension A N/A 2.56 in | Dimension B N/A 0.78 in | Dimension C N/A 0.59 in | Dimension D N/A 0.86 in | Spindle Material N/A Steel |
Drawings
![]() |
| 3PRSH-1040 3PRSH-1040/Asset/Phenolic-revolving-safety-handle-.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.78 in | Dimension C N/A 0.76 in | Dimension D N/A 1.02 in | Spindle Material N/A Steel |
Drawings
![]() |
| 4PRSH-1041 4PRSH-1041/Asset/Phenolic-revolving-safety-handle-.jpg | Dimension A N/A 3.54 in | Dimension B N/A 0.78 in | Dimension C N/A 0.76 in | Dimension D N/A 1.02 in | Spindle Material N/A Steel |
Drawings
![]() |
