Phenolic Revolving Safety Handles with Stainless Steel Spindle
Revolving Handles

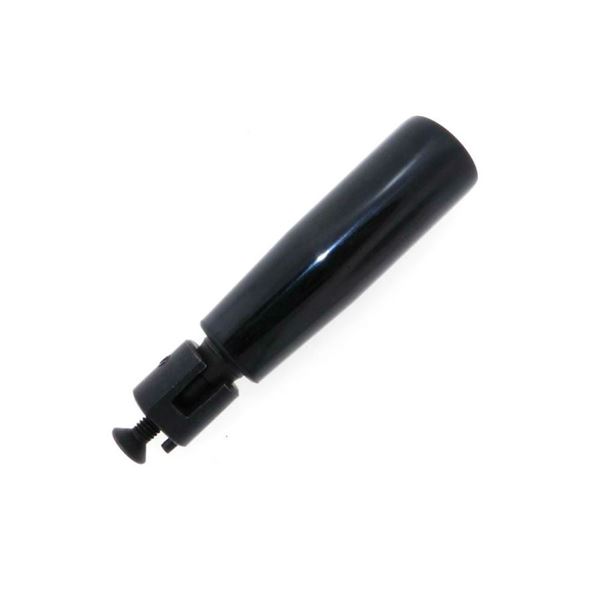

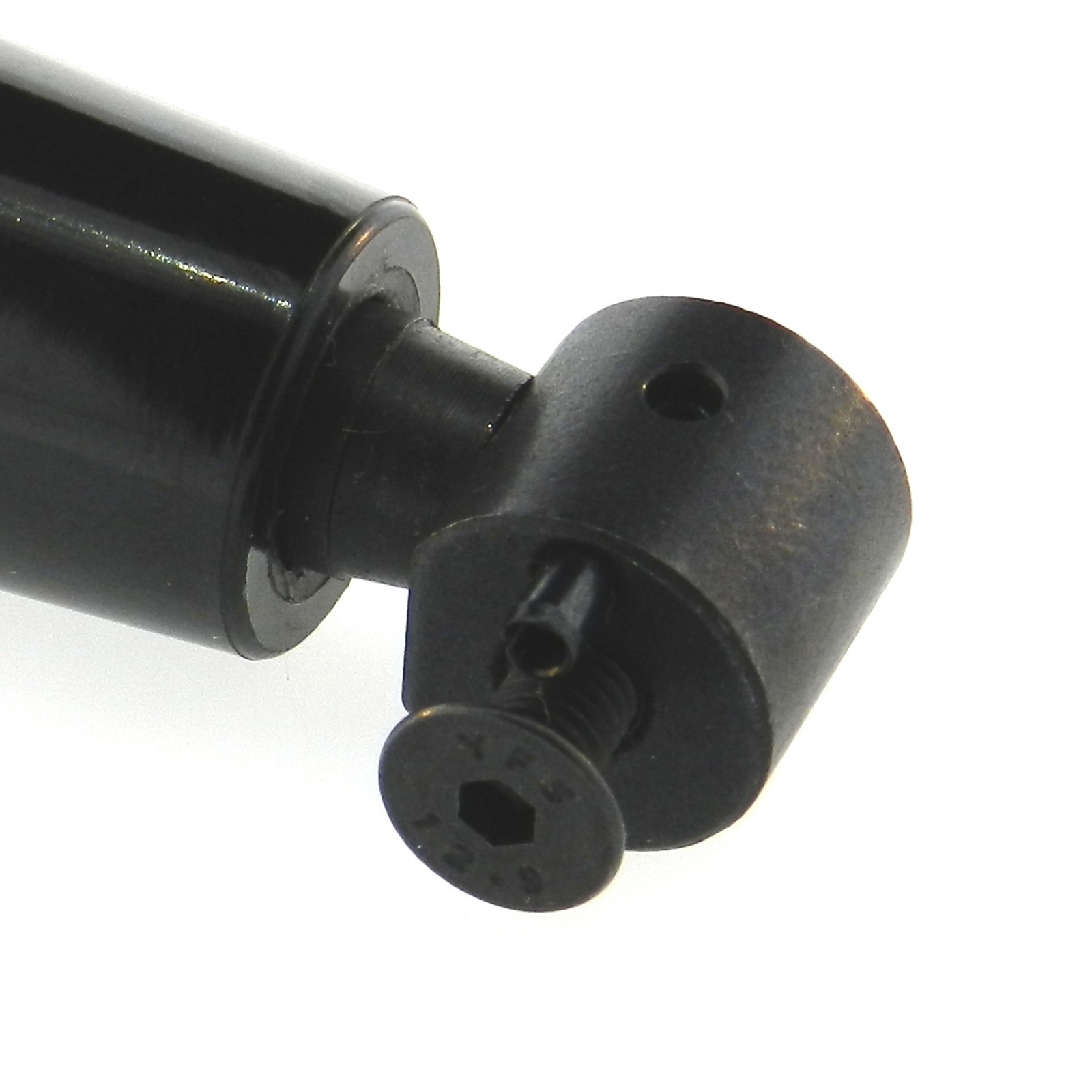

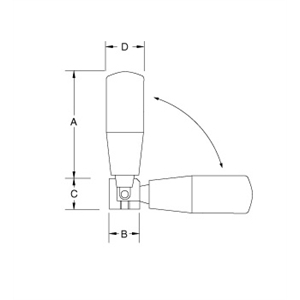

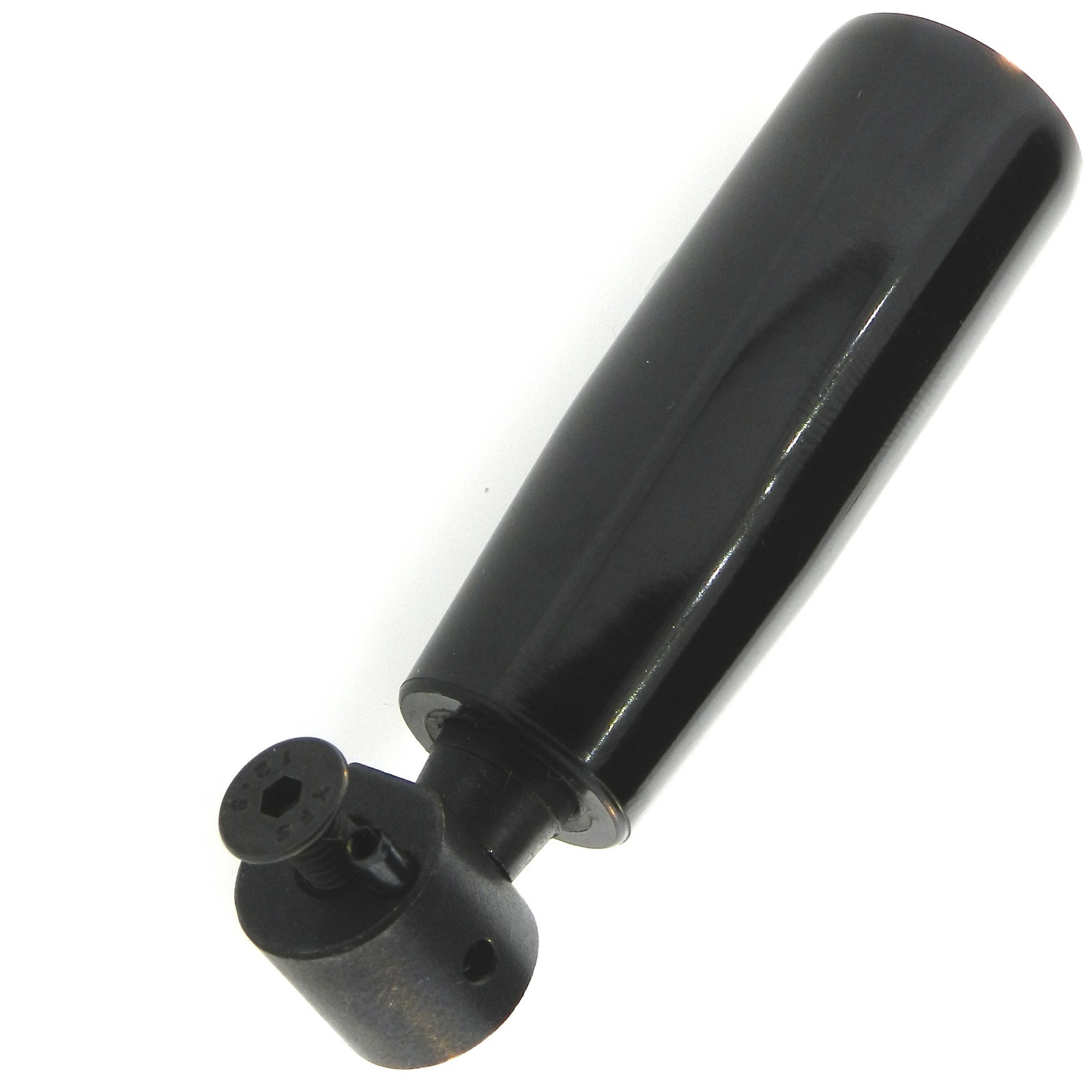

This revolving handle from JBF National features a high quality phenolic folding handle, with the handle base manufactured from black oxide coated sintered steel. This revolving handle also features a bottom tapped base and includes anti-rotation pin and mounting screw. Activating the folding mechanism is achieved by pulling the handle up from its base, whereupon released, folds downward 90 degrees to lock firmly into place. The folding feature yields the benefits of safety and accessibility to any application. Also available in stainless steel. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Drawings |
|---|---|---|---|---|---|
| 1PRSH-1042SS 1PRSH-1042SS/Asset/Phenolic-revolving-safety-handle--.jpg | Dimension A N/A 1.97 in | Dimension B N/A 0.63 in | Dimension C N/A 0.59 in | Dimension D N/A 0.83 in |
Drawings
![]() |
| 2PRSH-1043SS 2PRSH-1043SS/Asset/Phenolic-revolving-safety-handle--.jpg | Dimension A N/A 2.56 in | Dimension B N/A 0.63 in | Dimension C N/A 0.59 in | Dimension D N/A 0.86 in |
Drawings
![]() |
| 2PRSH-1044SS 2PRSH-1044SS/Asset/Phenolic-revolving-safety-handle--.jpg | Dimension A N/A 2.56 in | Dimension B N/A 0.78 in | Dimension C N/A 0.59 in | Dimension D N/A 0.86 in |
Drawings
![]() |
| 3PRSH-1045SS 3PRSH-1045SS/Asset/Phenolic-revolving-safety-handle--.jpg | Dimension A N/A 3.15 in | Dimension B N/A 0.78 in | Dimension C N/A 0.76 in | Dimension D N/A 1.02 in |
Drawings
![]() |
