• Plastic Revolving Ball Knobs

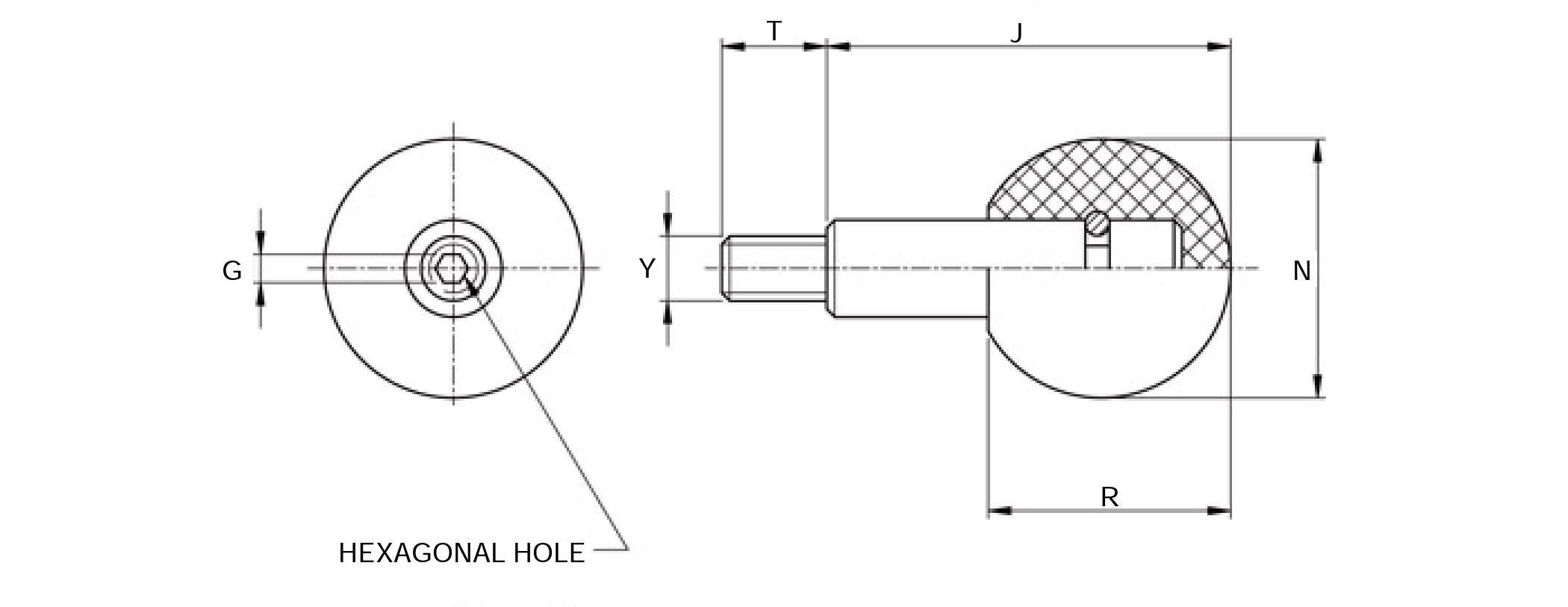

  • <!-Plastic Revolving Ball Knobs Line Drawing->
This revolving ball knob from JBF National is manufactured from the highest quality black dyed steel spindle, and black bakelite handle. The oversized ball knob allows for ultimate palm engagement and the permanently lubricated spindle ensures operator comfort and handle longevity. Features standard hexagonal mounting hole. Please see component diagram below.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Dimension R

Drawings

N/A 25 mm N/A M6 N/A 11 mm N/A 37.5 mm N/A 3 mm N/A 22.5 mm

N/A 32 mm N/A M8 N/A 13 mm N/A 48 mm N/A 4 mm N/A 29 mm

N/A 40 mm N/A M10 N/A 14 mm N/A 61 mm N/A 5 mm N/A 37 mm

N/A 50 mm N/A M12 N/A 21 mm N/A 78 mm N/A 6 mm N/A 46 mm
