• Phenolic Revolving Handles with Stainless Steel Spindle

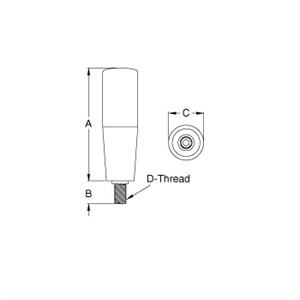

  • <!-Phenolic Stainless Steel Revolving Handles with Stainless Steel Spindle Line Drawing->
JBF National's phenolic revolving handle is designed to maximize operator grip while relinquishing zero comfort. Continued operator comfort is ensured by the phenolic handle grip and the smooth operating action is carried out by a permanently lubricated spindle manufactured from zinc plated steel. JBF National's bottom mount hex socket design makes for easy insertion or replacement. Also available in a stainless steel spindle. Please see component diagram below.
1 - 12 of 12 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Drawings

N/A 1.57 in N/A 0.47 in N/A 0.71 in N/A 1/4-20

N/A 1.57 in N/A 0.47 in N/A 0.71 in N/A M6

N/A 1.97 in N/A 0.51 in N/A 0.83 in N/A 1/4-20

N/A 1.97 in N/A 0.51 in N/A 0.83 in N/A M6

N/A 2.56 in N/A 0.59 in N/A 0.90 in N/A 5/16-18

N/A 2.56 in N/A 0.59 in N/A 0.90 in N/A M8

N/A 3.15 in N/A 0.67 in N/A 1.02 in N/A 3/8-16

N/A 3.15 in N/A 0.67 in N/A 1.02 in N/A M10

N/A 3.54 in N/A 0.67 in N/A 1.10 in N/A 3/8-16

N/A 3.54 in N/A 0.67 in N/A 1.10 in N/A M10

N/A 4.02 in N/A 0.78 in N/A 1.22 in N/A 1/2-13

N/A 4.02 in N/A 0.78 in N/A 1.22 in N/A M12
