• Stainless Steel Revolving Handles

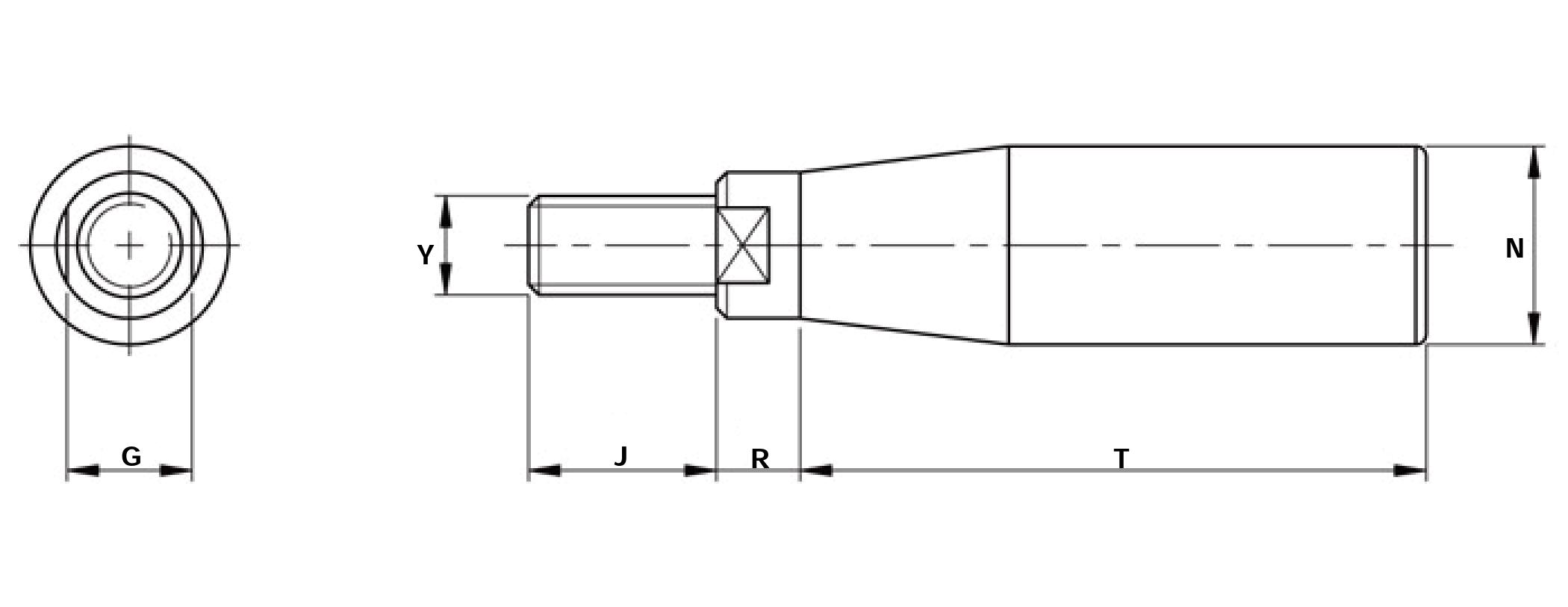

  • <!-Stainless Steel Revolving Handles Line Drawing->
This revolving handle from JBF National is manufactured from the highest quality polished stainless steel, and is designed and tested for ultimate reliability and durability. The permanently lubricated spindle ensures operator comfort and handle longevity. Please see component diagram below.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension N

Dimension Y

Dimension T

Dimension J

Dimension G

Dimension R

Drawings

N/A 16 mm N/A M6 N/A 58.00 mm N/A 13.00 mm N/A 10.00 mm N/A 9.00 mm

N/A 16 mm N/A M8 N/A 58.00 mm N/A 13.00 mm N/A 10.00 mm N/A 9.00 mm

N/A 20 mm N/A M8 N/A 58.00 mm N/A 13.00 mm N/A 10.00 mm N/A 9.00 mm

N/A 22 mm N/A M10 N/A 70.00 mm N/A 14.00 mm N/A 13.00 mm N/A 10.00 mm

N/A 25 mm N/A M12 N/A 84.00 mm N/A 14.00 mm N/A 13.00 mm N/A 10.00 mm
