Thermoplastic Ribbed Revolving Safety Handles
Revolving Handles

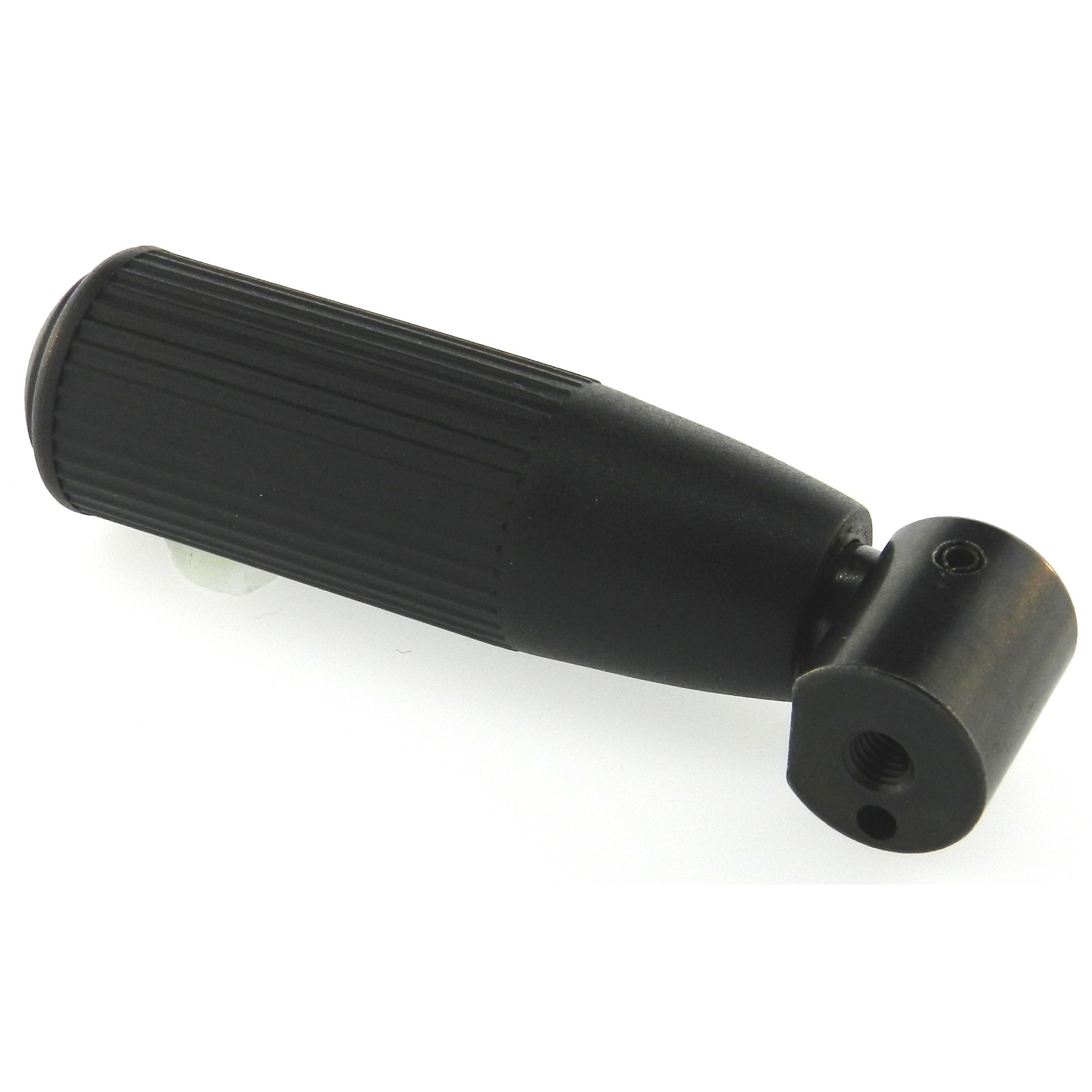

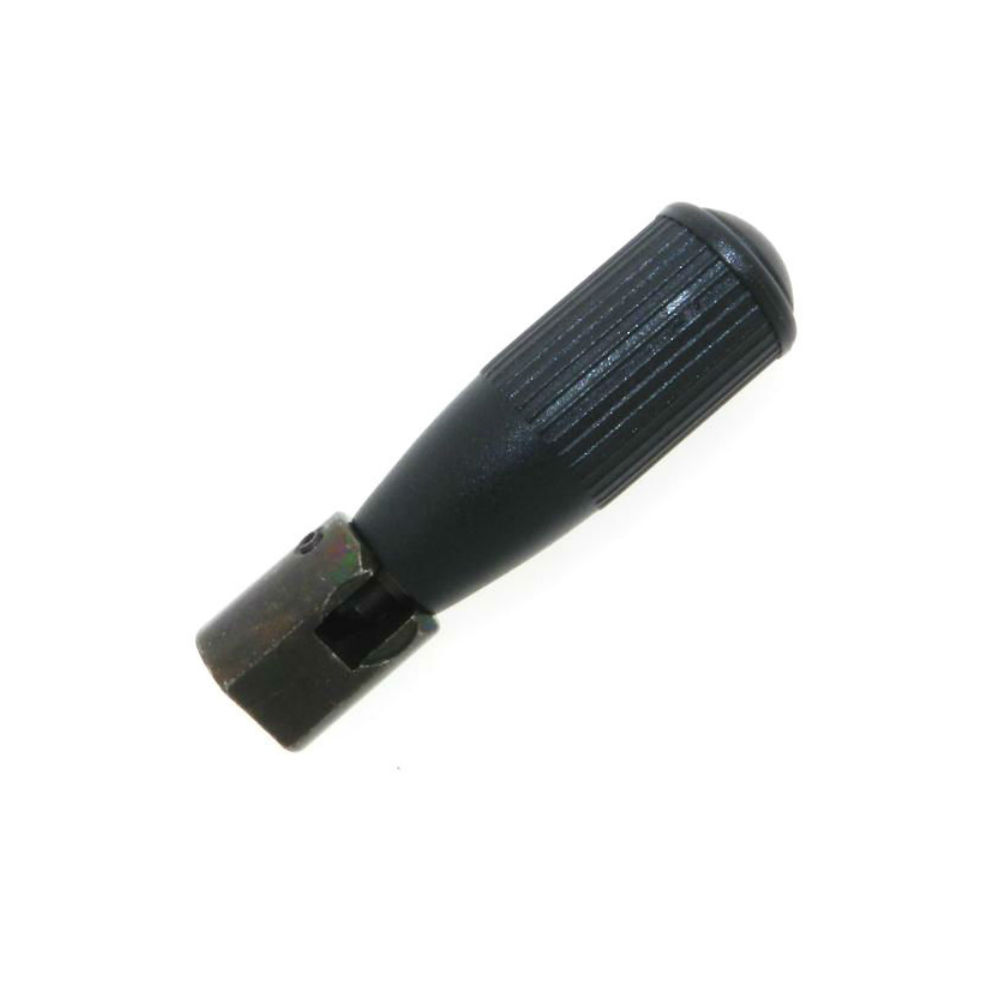

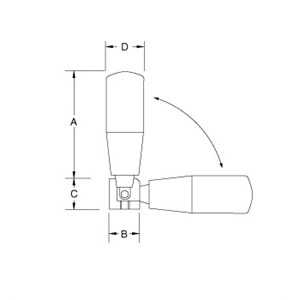

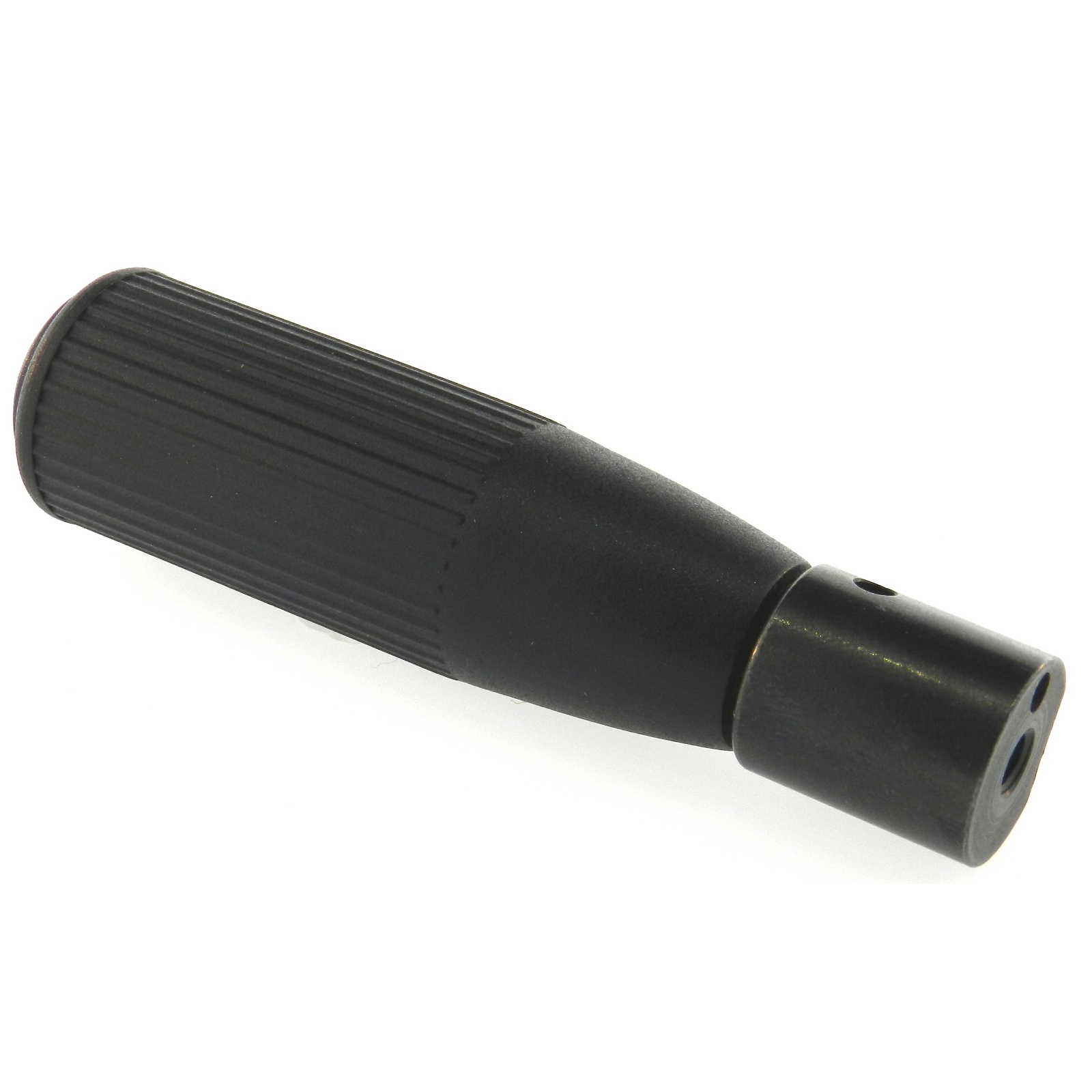

JBF National's thermoplastic ribbed revolving safety handle is designed to maximize positive grip application, regardless of situation. The handle base comes manufactured from steel and features a black oxide finish. Activating the folding mechanism is achieved by pulling the handle up from its base, whereupon released, folds downward 90 degrees to firmly lock into place. This feature yields the benefits of safety and accessibility to any application. Revolving handle features a socket head mounting screw and anti-rotation pin. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Drawings |
|---|---|---|---|---|---|
| 1RRH-1072 1RRH-1072/Asset/Ribbed-Revolving-Safety-Handle-.jpg | Dimension A N/A 50.00 mm | Dimension B N/A 16 mm | Dimension C N/A 19.00 mm | Dimension D N/A 19 mm |
Drawings
![]() |
| 2RRH-1073 2RRH-1073/Asset/Ribbed-Revolving-Safety-Handle-.jpg | Dimension A N/A 65.00 mm | Dimension B N/A 16 mm | Dimension C N/A 19.00 mm | Dimension D N/A 21 mm |
Drawings
![]() |
