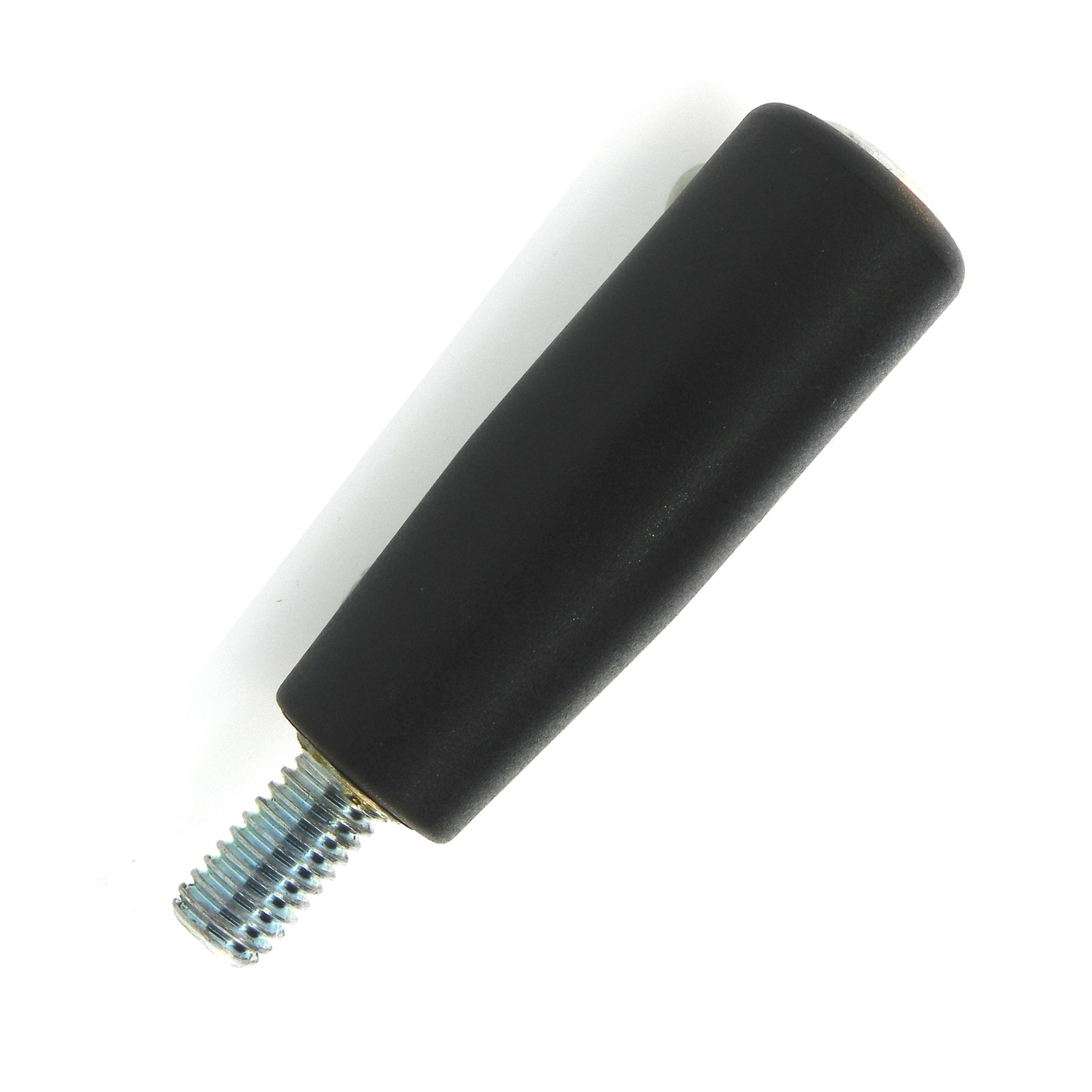

• Top Mount Revolving Handles

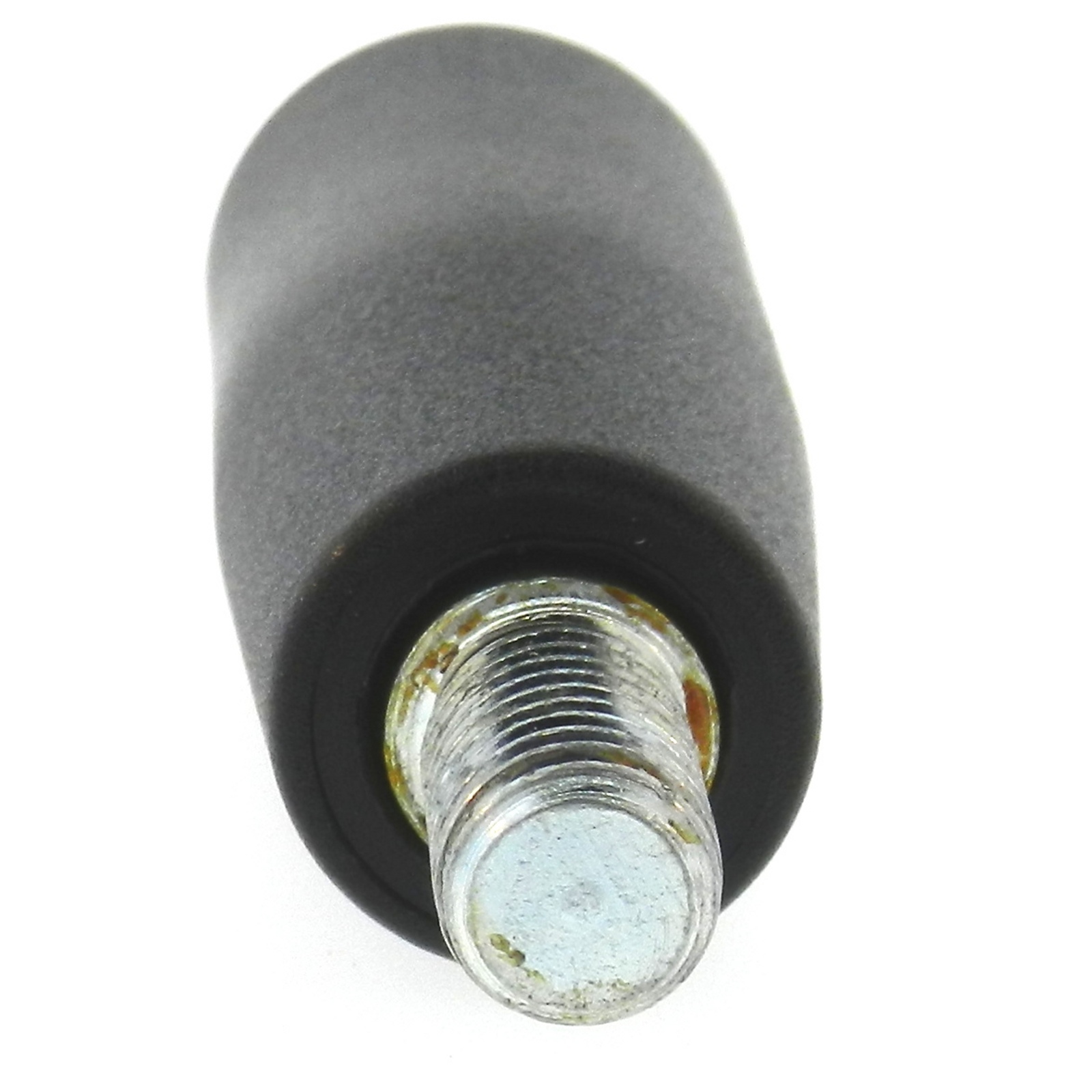

  • Top Mount Revolving Handles - 3
  • Top Mount Revolving Handles - 4

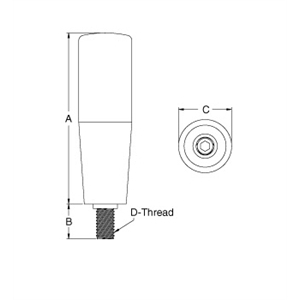

  • <!-Top Mount Revolving Handles Line Drawing->

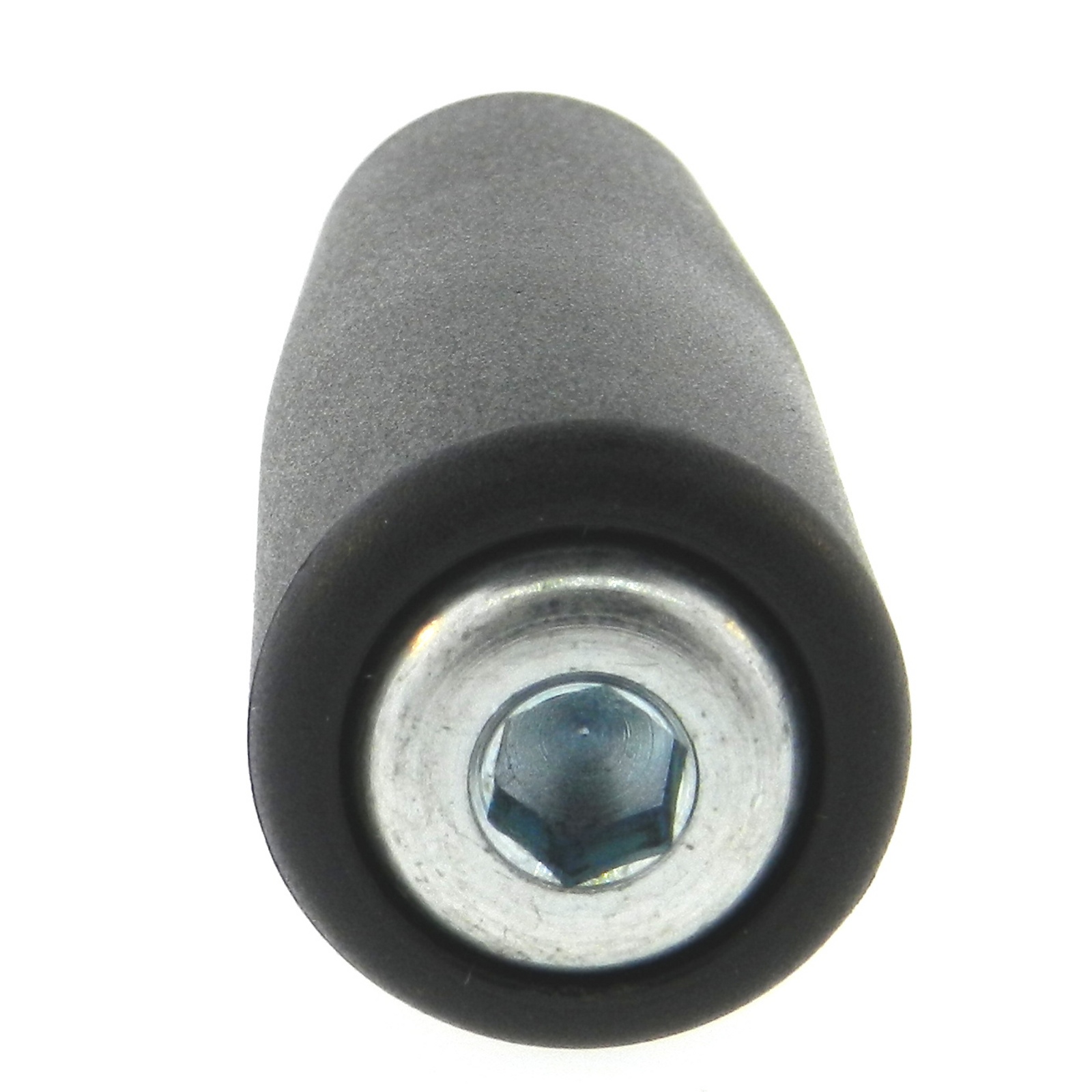

The tough thermoplastic of JBF National's top mount revolving handle, ensures consistent and reliable usage. The rugged steel spindle and top hexagonal socket make handle insertions and removals a cinch. Please see component diagram below.
1 - 6 of 6 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Drawings

N/A 50.00 mm N/A 13.00 mm N/A 21.00 mm N/A M6

N/A 50.00 mm N/A 13.00 mm N/A 21.00 mm N/A M8

N/A 65.00 mm N/A 14.00 mm N/A 23.00 mm N/A M10

N/A 65.00 mm N/A 14.00 mm N/A 23.00 mm N/A M8

N/A 80.00 mm N/A 16.00 mm N/A 26.00 mm N/A M10

N/A 80.00 mm N/A 16.00 mm N/A 26.00 mm N/A M8
