Brass Short Spring Plungers with Light End Force
Threaded Plungers

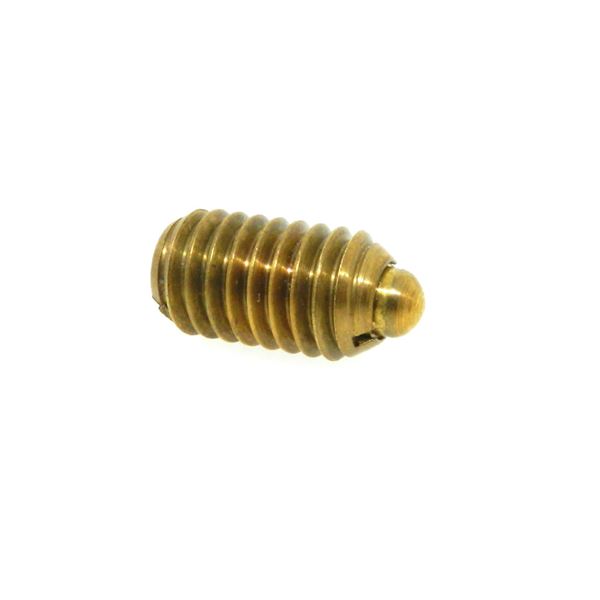

JBF National's brass short spring plungers make sure that all of your alignment and attachment needs are carried out with the utmost precision. This plunger features a screw driver slot for easy installation. Except for thread sizes 4-48 through 8-36, an optional nylon threading patch is available. Spring plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information. Add "P" to part number for nylon patch
Item # |
Thread Size (A) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Start End Force |
End End Force |
Drawings |
|---|---|---|---|---|---|---|---|
| 1BBPC-1046 1BBPC-1046/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 8-32 | Body Length (B) N/A 0.437 in | Nose Length (C) N/A 0.052 in | Nose Diameter (D) N/A 0.070 in | Start End Force N/A 0.500 lb | End End Force N/A 1.50 lb |
Drawings
 |
| 1BBPC-1047 1BBPC-1047/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 8-36 | Body Length (B) N/A 0.437 in | Nose Length (C) N/A 0.052 in | Nose Diameter (D) N/A 0.070 in | Start End Force N/A 0.500 lb | End End Force N/A 1.50 lb |
Drawings
|
| 1BBPC-1048 1BBPC-1048/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 10-32 | Body Length (B) N/A 0.468 in | Nose Length (C) N/A 0.065 in | Nose Diameter (D) N/A 0.093 in | Start End Force N/A 0.75 lb | End End Force N/A 2.5 lb |
Drawings
|
| 1BBPC-1049 1BBPC-1049/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 0.531 in | Nose Length (C) N/A 0.078 in | Nose Diameter (D) N/A 0.119 in | Start End Force N/A 1.00 lb | End End Force N/A 3.5 lb |
Drawings
|
| 1BBPC-1050 1BBPC-1050/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 5/16-18 | Body Length (B) N/A 0.562 in | Nose Length (C) N/A 0.084 in | Nose Diameter (D) N/A 0.135 in | Start End Force N/A 1.25 lb | End End Force N/A 4.00 lb |
Drawings
|
| 1BBPC-1051 1BBPC-1051/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 3/8-16 | Body Length (B) N/A 0.625 in | Nose Length (C) N/A 0.110 in | Nose Diameter (D) N/A 0.186 in | Start End Force N/A 1.500 lb | End End Force N/A 5.00 lb |
Drawings
|
| 1BBPC-1052 1BBPC-1052/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 1/2-13 | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 0.151 in | Nose Diameter (D) N/A 0.248 in | Start End Force N/A 1.75 lb | End End Force N/A 5.5 lb |
Drawings
|
| 1BBPC-1053 1BBPC-1053/Asset/Short-Spring-Plungers---Brass-with-Light-End-Force---1.jpg | Thread Size (A) N/A 5/8-11 | Body Length (B) N/A 1.062 in | Nose Length (C) N/A 0.215 in | Nose Diameter (D) N/A 0.310 in | Start End Force N/A 2.000 lb | End End Force N/A 8.5 lb |
Drawings
|
