Stainless Steel Standard Spring Plungers with Standard End Force
Threaded Plungers

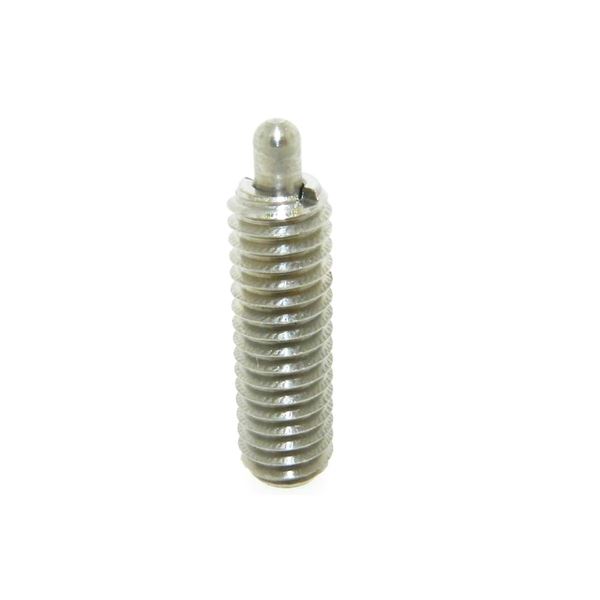

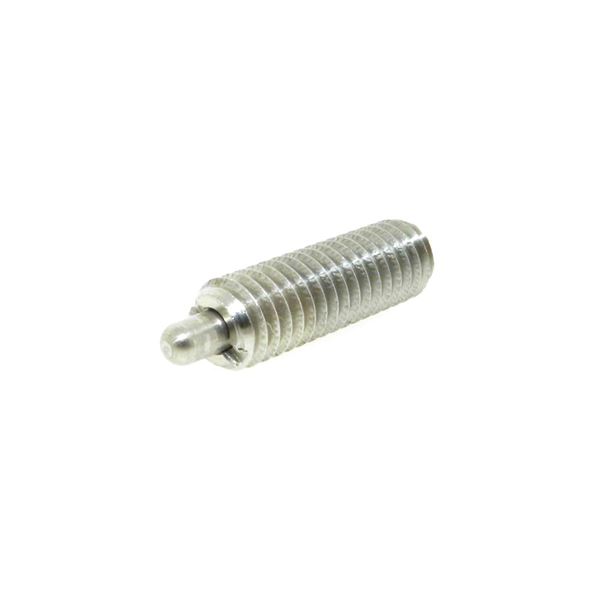

JBF National's stainless steel spring plungers make sure that all of your alignment and attachment needs are carried out with the utmost precision. This plunger features a hexagonal key for easy installation, and a stainless steel construction for maximum corrosion resistance. Stainless steel and black nylon plunger ends come standard on this model. Except for thread sizes 4-48 through 8-36, an optional nylon threading patch is available. Spring plungers are utilized across of wide variety of industries and products, including woodworking, medical and military applications. Contact a JBF National sales engineer today for further information. Add "P" to part number for nylon patch.
Item # |
Thread Size (A) |
Body Length (B) |
Nose Length (C) |
Nose Diameter (D) |
Start End Force |
End End Force |
Drawings |
|---|---|---|---|---|---|---|---|
| 1SPLESS-1106-BL 1SPLESS-1106-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 6-32 | Body Length (B) N/A 3/8 in | Nose Length (C) N/A 1/16 in | Nose Diameter (D) N/A 0.045 in | Start End Force N/A 1.00 lb | End End Force N/A 1.6 lb |
Drawings
 |
| 1SPLESS-1107-BL 1SPLESS-1107-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 6-32 | Body Length (B) N/A 17/32 in | Nose Length (C) N/A 1/16 in | Nose Diameter (D) N/A 0.045 in | Start End Force N/A 1.500 lb | End End Force N/A 4.50 lb |
Drawings
|
| 1SPLESS-1108-BL 1SPLESS-1108-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 8-32 | Body Length (B) N/A 0.625 in | Nose Length (C) N/A 3/32 in | Nose Diameter (D) N/A 0.069 in | Start End Force N/A 2.7 lb | End End Force N/A 7.3 lb |
Drawings
|
| 1SPLESS-1109-BL 1SPLESS-1109-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 10-32 | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 1/8 in | Nose Diameter (D) N/A 0.092 in | Start End Force N/A 2.9 lb | End End Force N/A 11.1 lb |
Drawings
|
| 1SPLESS-1110-BL 1SPLESS-1110-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 1/8 in | Nose Diameter (D) N/A 0.118 in | Start End Force N/A 2.000 lb | End End Force N/A 9.00 lb |
Drawings
|
| 1SPLESS-1111-BL 1SPLESS-1111-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.118 in | Start End Force N/A 3.000 lb | End End Force N/A 13 lb |
Drawings
|
| 1SPLESS-1112-BL 1SPLESS-1112-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.118 in | Start End Force N/A 3.000 lb | End End Force N/A 13 lb |
Drawings
|
| 1SPLESS-1113-BL 1SPLESS-1113-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 5/16-18 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.134 in | Start End Force N/A 3.000 lb | End End Force N/A 15 lb |
Drawings
|
| 1SPLESS-1114-BL 1SPLESS-1114-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 3/8-16 | Body Length (B) N/A 1-1/8 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.186 in | Start End Force N/A 5.5 lb | End End Force N/A 14.5 lb |
Drawings
|
| 1SPLESS-1115-BL 1SPLESS-1115-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/2-13 | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Start End Force N/A 6.6 lb | End End Force N/A 17.4 lb |
Drawings
|
| 1SPLESS-1116-BL 1SPLESS-1116-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 5/8-11 | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 5/16 in | Nose Diameter (D) N/A 0.311 in | Start End Force N/A 10.5 lb | End End Force N/A 25.5 lb |
Drawings
|
| 1SPLESS-1117-BL 1SPLESS-1117-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 3/4-10 | Body Length (B) N/A 1-3/4 in | Nose Length (C) N/A 5/16 in | Nose Diameter (D) N/A 0.373 in | Start End Force N/A 6.7 lb | End End Force N/A 37.3 lb |
Drawings
|
| 1SPLESS-1118-BL 1SPLESS-1118-BL/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1-8 | Body Length (B) N/A 2-13/32 in | Nose Length (C) N/A 0.50 in | Nose Diameter (D) N/A 0.498 in | Start End Force N/A 16 lb | End End Force N/A 68 lb |
Drawings
|
| 1SPLESS-1108-BN 1SPLESS-1108-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 8-32 | Body Length (B) N/A 0.625 in | Nose Length (C) N/A 3/32 in | Nose Diameter (D) N/A 0.069 in | Start End Force N/A 2.7 lb | End End Force N/A 7.3 lb |
Drawings
|
| 1SPLESS-1109-BN 1SPLESS-1109-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 10-32 | Body Length (B) N/A 0.750 in | Nose Length (C) N/A 1/8 in | Nose Diameter (D) N/A 0.092 in | Start End Force N/A 2.9 lb | End End Force N/A 11.1 lb |
Drawings
|
| 1SPLESS-1111-BN 1SPLESS-1111-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.118 in | Start End Force N/A 3.000 lb | End End Force N/A 13 lb |
Drawings
|
| 1SPLESS-1112-BN 1SPLESS-1112-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/4-20 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.118 in | Start End Force N/A 3.000 lb | End End Force N/A 13 lb |
Drawings
|
| 1SPLESS-1113-BN 1SPLESS-1113-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 5/16-18 | Body Length (B) N/A 1 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.134 in | Start End Force N/A 3.000 lb | End End Force N/A 15 lb |
Drawings
|
| 1SPLESS-1114-BN 1SPLESS-1114-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 3/8-16 | Body Length (B) N/A 1-1/8 in | Nose Length (C) N/A 3/16 in | Nose Diameter (D) N/A 0.186 in | Start End Force N/A 5.5 lb | End End Force N/A 14.5 lb |
Drawings
|
| 1SPLESS-1115-BN 1SPLESS-1115-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 1/2-13 | Body Length (B) N/A 1.25 in | Nose Length (C) N/A 0.25 in | Nose Diameter (D) N/A 0.248 in | Start End Force N/A 6.6 lb | End End Force N/A 17.4 lb |
Drawings
|
| 1SPLESS-1116-BN 1SPLESS-1116-BN/Asset/Stainless-Steel-Standard-Spring-Plungers-with-Standard-End-Force1.jpg | Thread Size (A) N/A 5/8-11 | Body Length (B) N/A 1.50 in | Nose Length (C) N/A 5/16 in | Nose Diameter (D) N/A 0.311 in | Start End Force N/A 10.5 lb | End End Force N/A 25.5 lb |
Drawings
|
