• LL-1060 Wing Turns-Link Locks

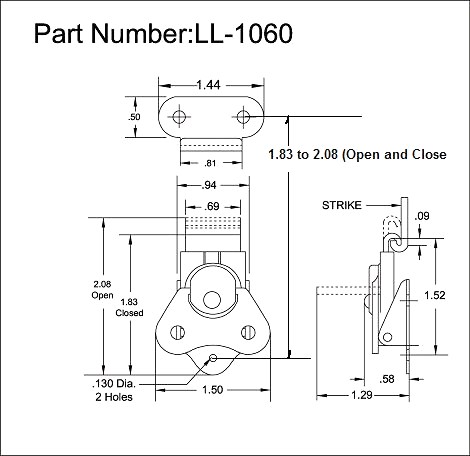

  • <!-LL-1060 Wing Turns-Link Locks Line Drawing->

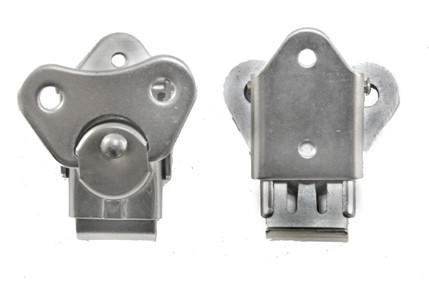

JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. LL-1060 is manufactured from passivated stainless steel or steel in a variety of finishes including black zinc, clear zinc, painted black, or nickel plated. This model carries a load capacity rating of 450 Lbs. and uses JBF strike SK-1001. Please see component diagram below.
1 - 5 of 5 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Load Rating

Material

Finish

Drawings

N/A 450 lb N/A Steel N/A Black Zinc

N/A 450 lb N/A Steel N/A Clear Zinc

N/A 450 lb N/A Stainless Steel N/A Clear Passivated

N/A 450 lb N/A Steel N/A Nickel Plated

N/A 450 lb N/A Steel N/A Black Painted
