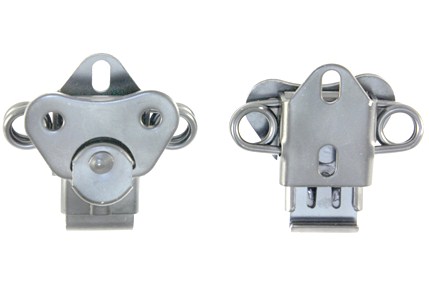

• LL-1061SL-Wing-Turns-Link-Locks
  • <!-LL-1061SL-Wing-Turns-Link-Locks-Line-Drawing->

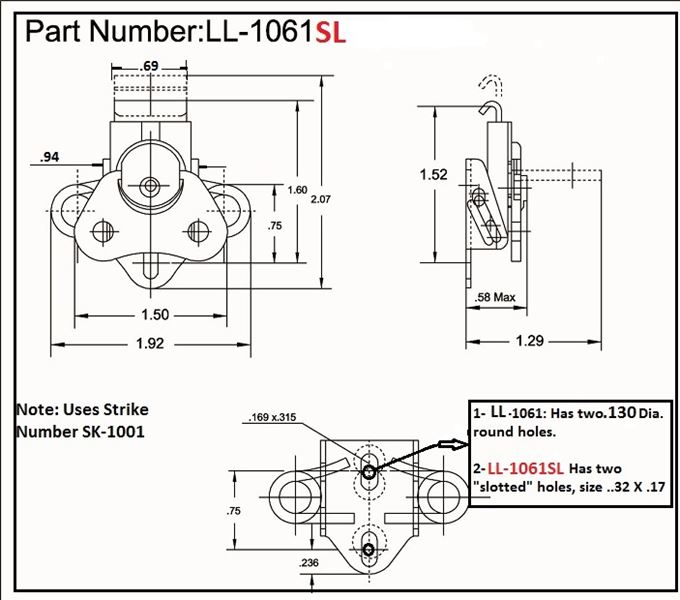

JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. LL-1061SL is manufactured from either painted black or clear zinc plated steel or passivated stainless steel. This model carries a load capacity rating of 450 Lbs. and features elongated .320 X .170 mounting holes. Please see component diagram below.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Elongated Hole Diameter

Load Rating

Material

Finish

Drawings

N/A 0.320 x 0.170 in N/A 450 lb N/A Steel N/A Clear Zinc

N/A 0.320 x 0.170 in N/A 450 lb N/A Steel N/A Black Painted

N/A 0.320 x 0.170 in N/A 450 lb N/A Stainless Steel N/A Clear Passivated
