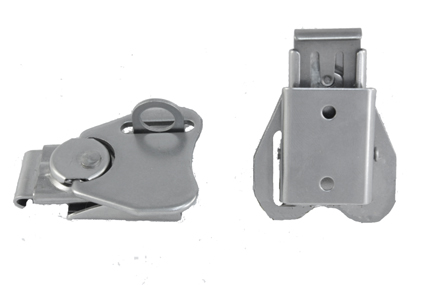

• LL-1080 Wing Turns-Link Locks

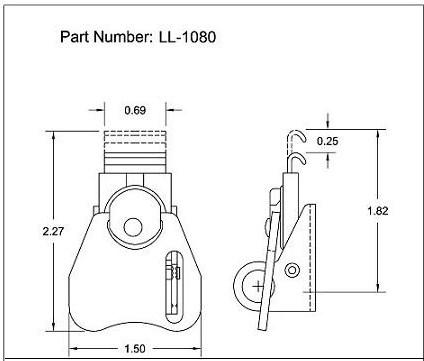

  • <!-LL-1080 Wing Turns-Link Locks Line Drawing->
JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This pad-lockable link lock is manufactured from either clear zinc plated or nickel plated steel, or passivated stainless steel. This model carries a load capacity rating of 450 Lbs. and uses a JBF SK-1001 or SK-1002 strike. Please see component diagram below.
1 - 4 of 4 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter

Load Rating

Material

Finish

Drawings

N/A 0.130 in N/A 450 lb N/A Steel N/A Clear Zinc

N/A 0.130 in N/A 450 lb N/A Stainless Steel N/A Clear Passivated

N/A 0.142 in N/A 450 lb N/A Stainless Steel N/A Clear Passivated

N/A 0.130 in N/A 450 lb N/A Steel N/A Nickel Plated
