• LL-1081 Wing Turns-Link Locks
  • <!-LL-1081 Wing Turns-Link Locks Line Drawing->

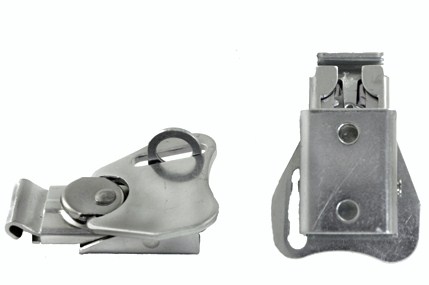

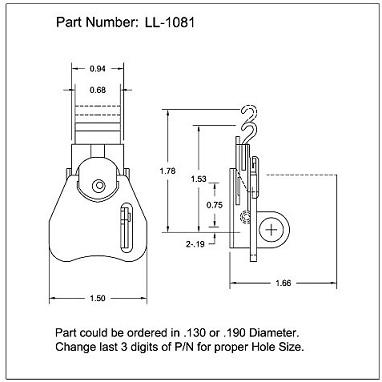

JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. This pad-lockable link lock is manufactured from either painted black or clear zinc plated steel, or passivated stainless steel. This model carries a load capacity rating of 450 Lbs. Please see component diagram below.
1 - 3 of 3 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter

Load Rating

Material

Finish

Drawings

N/A 0.130 in0.190 in N/A 450 lb N/A Steel N/A Clear Zinc

N/A 0.130 in0.190 in N/A 450 lb N/A Stainless Steel N/A Clear Passivated

N/A 0.130 in0.190 in N/A 450 lb N/A Steel N/A Black Painted
