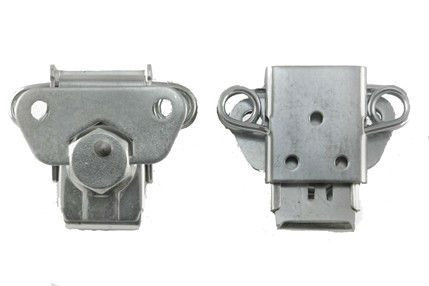

• LL-2342 Wing Turns-Link Locks

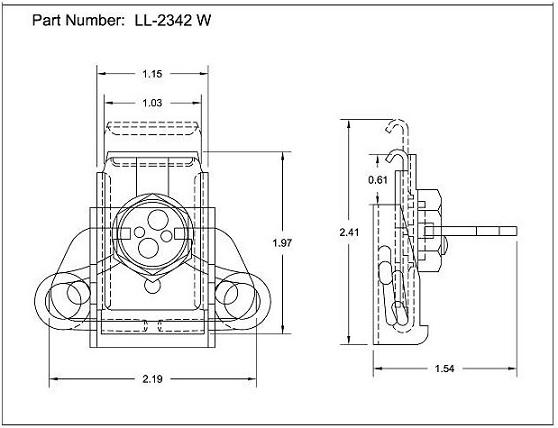

  • <!-LL-2342 Wing Turns-Link Locks Line Drawing->
JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. LL-2342 is manufactured from clear zinc plated steel or passivated stainless steel. This model features .167 diameter mounting holes and carries a load capacity rating of 600 Lbs. Uses JBF strike SK-2301. Please see component diagram below.
1 - 2 of 2 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items

Item #

Hole Diameter

Load Rating

Material

Finish

Drawings

N/A 0.167 in N/A 600 lb N/A Stainless Steel N/A Clear Passivated

N/A 0.167 in N/A 600 lb N/A Steel N/A Clear Zinc
