LL-2342NW Wing Turns-Link Locks
Wing Turns-Link Locks

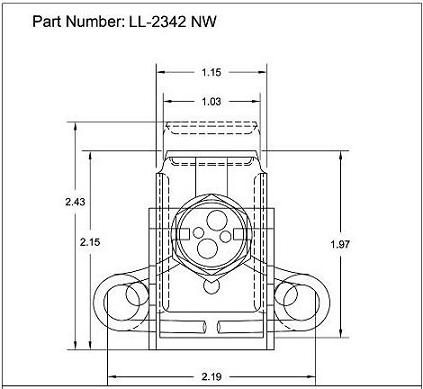

JBF National wing turns-link locks are manufactured from the highest quality materials. They are designed and tested for ultimate reliability and durability. LL-2342NW is manufactured from either clear zinc plated steel or passivated stainless steel. This model retains the same dimensions as model LL-2342, less a turn wing. Instead of a turn wing, an adjustable wrench is required to active the opening and closing action. This model also carries a load capacity rating of 600 Lbs. and uses JBF strike SK-2301. Please see component diagram below.
Item # |
Load Rating |
Material |
Finish |
Drawings |
|---|---|---|---|---|

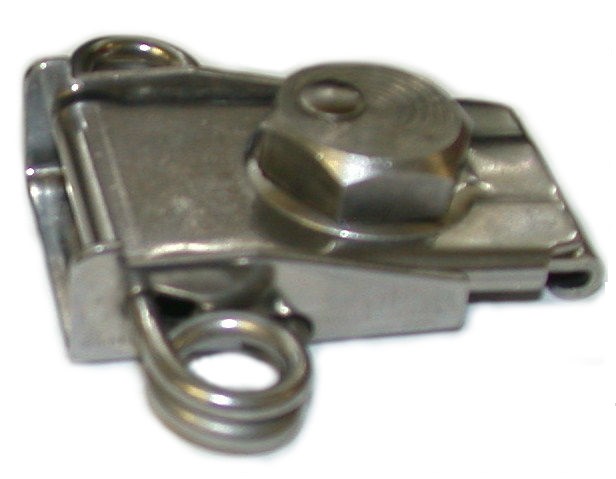

| LL-2342NW-SS-CP-167 LL-2342NW-SS-CP-167/Asset/2342NW-9_0.jpg | Load Rating N/A 600 lb | Material N/A Stainless Steel | Finish N/A Clear Passivated |
Drawings
![]() |
| LL-2342NW-ST-CZ-167 LL-2342NW-ST-CZ-167/Asset/2342NW-9_0.jpg | Load Rating N/A 600 lb | Material N/A Steel | Finish N/A Clear Zinc |
Drawings
![]() |
