Plastic Crank Handles with Folding Revolving Handles
Crank Handles

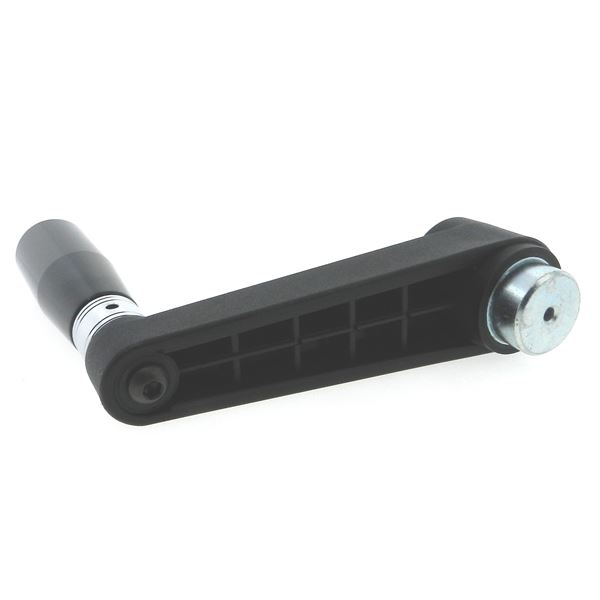

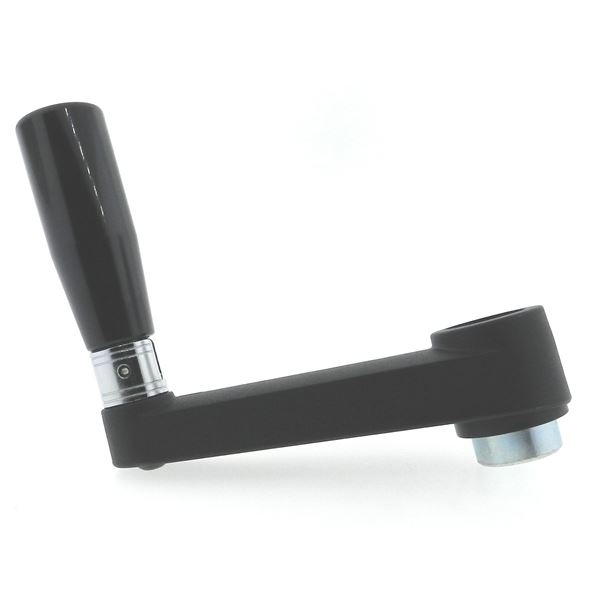

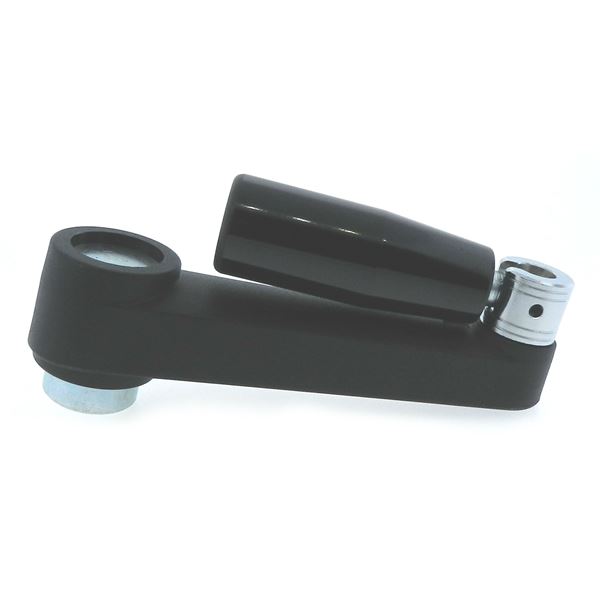

JBF National plastic crank handles are designed for weight reduction without sacrificing strength and durability. The phenolic folding handle is ideal for limited space situations and combined with a phenolic safety grip, greatly reduces the chances of safety issues. The plastic construction reduces the overall percentage of corrosive surface areas ensuring maximum longevity. For added customization, we offer these crank handles (also known as crank arms) with a blind pilot hole to accommodate custom bore sizes. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension F |
Dimension G |
Dimension H |
Drawings |
|---|---|---|---|---|---|---|---|---|---|
| 1HPC-1020 1HPC-1020/Asset/plastic-crank-handle-with-folding-handle.jpg | Dimension A N/A 3.15 in | Dimension B N/A 1.42 in | Dimension C N/A 0.87 in | Dimension D N/A 1.18 in | Dimension E N/A 0.157 in | Dimension F N/A 0.51 in | Dimension G N/A 0.91 in | Dimension H N/A 1.97 in |
Drawings
 |
| 2HPC-1021 2HPC-1021/Asset/plastic-crank-handle-with-folding-handle.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.57 in | Dimension C N/A 0.94 in | Dimension D N/A 1.34 in | Dimension E N/A 0.157 in | Dimension F N/A 0.63 in | Dimension G N/A 0.98 in | Dimension H N/A 2.56 in |
Drawings
|
| 3HPC-1022 3HPC-1022/Asset/plastic-crank-handle-with-folding-handle.jpg | Dimension A N/A 5.12 in | Dimension B N/A 1.93 in | Dimension C N/A 1.10 in | Dimension D N/A 1.57 in | Dimension E N/A 0.236 in | Dimension F N/A 0.63 in | Dimension G N/A 1.34 in | Dimension H N/A 2.56 in |
Drawings
|
| 4HPC-1023 4HPC-1023/Asset/plastic-crank-handle-with-folding-handle.jpg | Dimension A N/A 6.30 in | Dimension B N/A 2.17 in | Dimension C N/A 1.34 in | Dimension D N/A 1.77 in | Dimension E N/A 0.236 in | Dimension F N/A 0.67 in | Dimension G N/A 1.50 in | Dimension H N/A 3.35 in |
Drawings
|
