2 Spoke Nylon Handwheels with No Handle
Handwheels

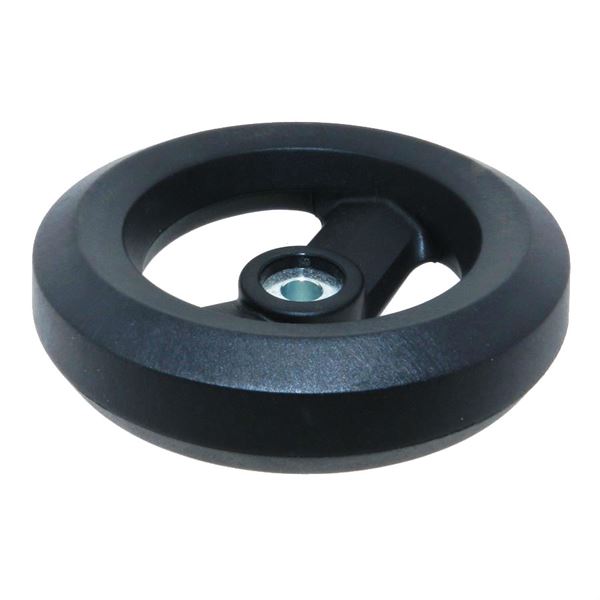

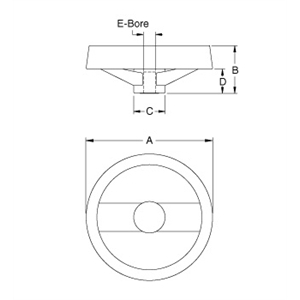

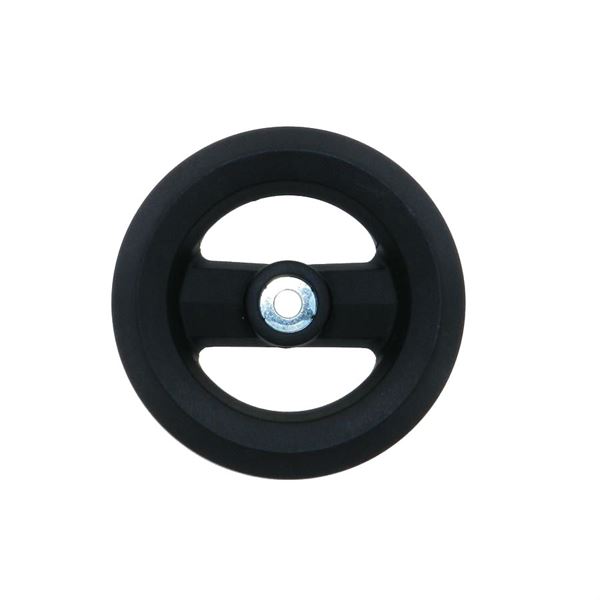

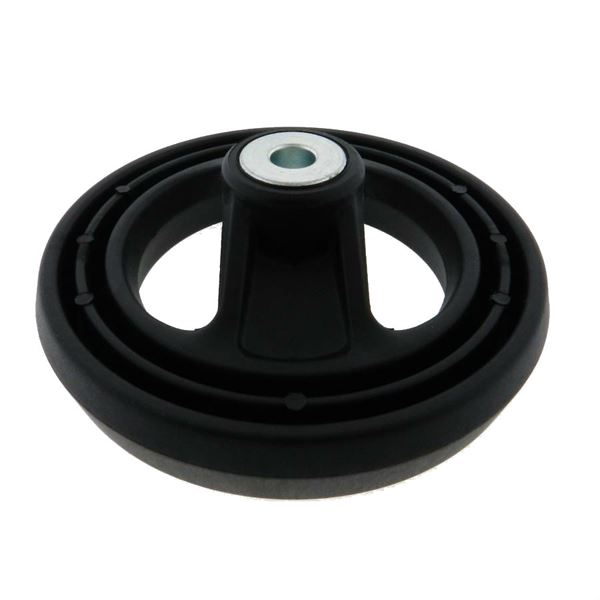

This 2 spoke handwheel from JBF National, is manufactured from ultra-tough nylon with a matte black finish, features a molded in zinc plated steel hub, and is strong enough for just about any application. Its ergonomic design ensures a positive and comfortable grip even in oily conditions, and due to its nylon construction, this handwheel is heat resistant up to 230 degrees Fahrenheit. The handle-less design allows for space saving maximization and through center hand grip to make minute adjustments a cinch. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Bore Size (E) |
Drawings |
|---|---|---|---|---|---|---|
| 1PSH-1078 1PSH-1078/Asset/Nylon-Handwheel-No-Handle-01A.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.81 in | Dimension C N/A 1.26 in | Dimension D N/A 0.86 in | Bore Size (E) N/A 0.39 in |
Drawings
![]() |
| 2PSH-1079 2PSH-1079/Asset/Nylon-Handwheel-No-Handle-01A.jpg | Dimension A N/A 4.96 in | Dimension B N/A 1.81 in | Dimension C N/A 1.26 in | Dimension D N/A 0.86 in | Bore Size (E) N/A 0.39 in |
Drawings
![]() |
| 3PSH-1080 3PSH-1080/Asset/Nylon-Handwheel-No-Handle-01A.jpg | Dimension A N/A 6.30 in | Dimension B N/A 1.85 in | Dimension C N/A 1.34 in | Dimension D N/A 0.86 in | Bore Size (E) N/A 0.39 in |
Drawings
![]() |
| 4PSH-1081 4PSH-1081/Asset/Nylon-Handwheel-No-Handle-01A.jpg | Dimension A N/A 7.87 in | Dimension B N/A 2.44 in | Dimension C N/A 1.97 in | Dimension D N/A 1.34 in | Bore Size (E) N/A 0.39 in |
Drawings
![]() |
