Solid Duroplast Handwheels with Revolving Handle
Handwheels

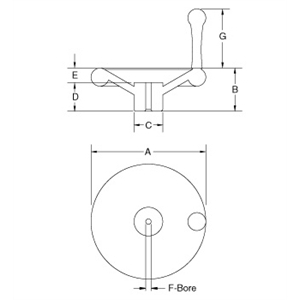

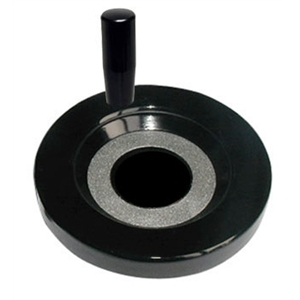

This solid Duroplast handwheel from JBF National comes in a highly polished finish that is pleasing to the eye and features a solid steel black oxide coated hub for ultimate durability. To ensure that the continuous rotating action of this wheel provides the highest level of grip comfort, it comes with a phenolic revolving handle. Customizable set screws, keyways, and bore sizes available upon request. Please see component diagram below.
Item # |
Dimension A |
Dimension B |
Dimension C |
Dimension D |
Dimension E |
Dimension G |
Drawings |
|---|---|---|---|---|---|---|---|
| 1SDHW-1105 1SDHW-1105/Asset/Solid-Duroplast-Handwheel-Revolving-Handle-1A-001-.jpg | Dimension A N/A 3.94 in | Dimension B N/A 1.69 in | Dimension C N/A 1.1 in | Dimension D N/A 1.45 in | Dimension E N/A 0.59 in | Dimension G N/A 1.97 in |
Drawings
 |
| 2SDHW-1106 2SDHW-1106/Asset/Solid-Duroplast-Handwheel-Revolving-Handle-1A-001-.jpg | Dimension A N/A 4.92 in | Dimension B N/A 1.77 in | Dimension C N/A 1.26 in | Dimension D N/A 1.57 in | Dimension E N/A 0.71 in | Dimension G N/A 2.56 in |
Drawings
|
| 3SDHW-1107 3SDHW-1107/Asset/Solid-Duroplast-Handwheel-Revolving-Handle-1A-001-.jpg | Dimension A N/A 6.3 in | Dimension B N/A 1.89 in | Dimension C N/A 1.42 in | Dimension D N/A 1.57 in | Dimension E N/A 0.78 in | Dimension G N/A 2.56 in |
Drawings
|
| 4SDHW-1108 4SDHW-1108/Asset/Solid-Duroplast-Handwheel-Revolving-Handle-1A-001-.jpg | Dimension A N/A 7.87 in | Dimension B N/A 2.28 in | Dimension C N/A 1.57 in | Dimension D N/A 1.69 in | Dimension E N/A 0.78 in | Dimension G N/A 3.15 in |
Drawings
|
