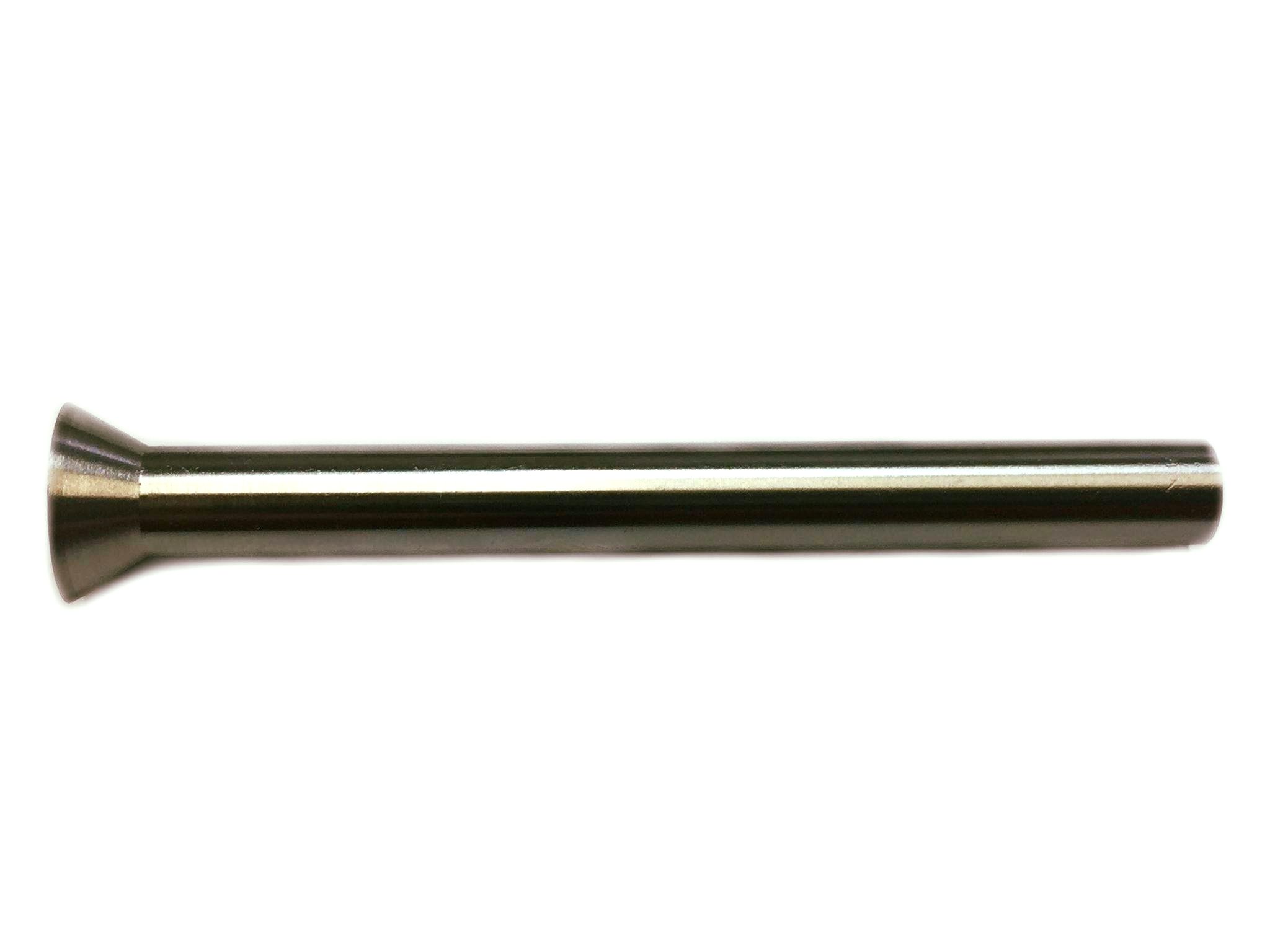

• Conical Pins

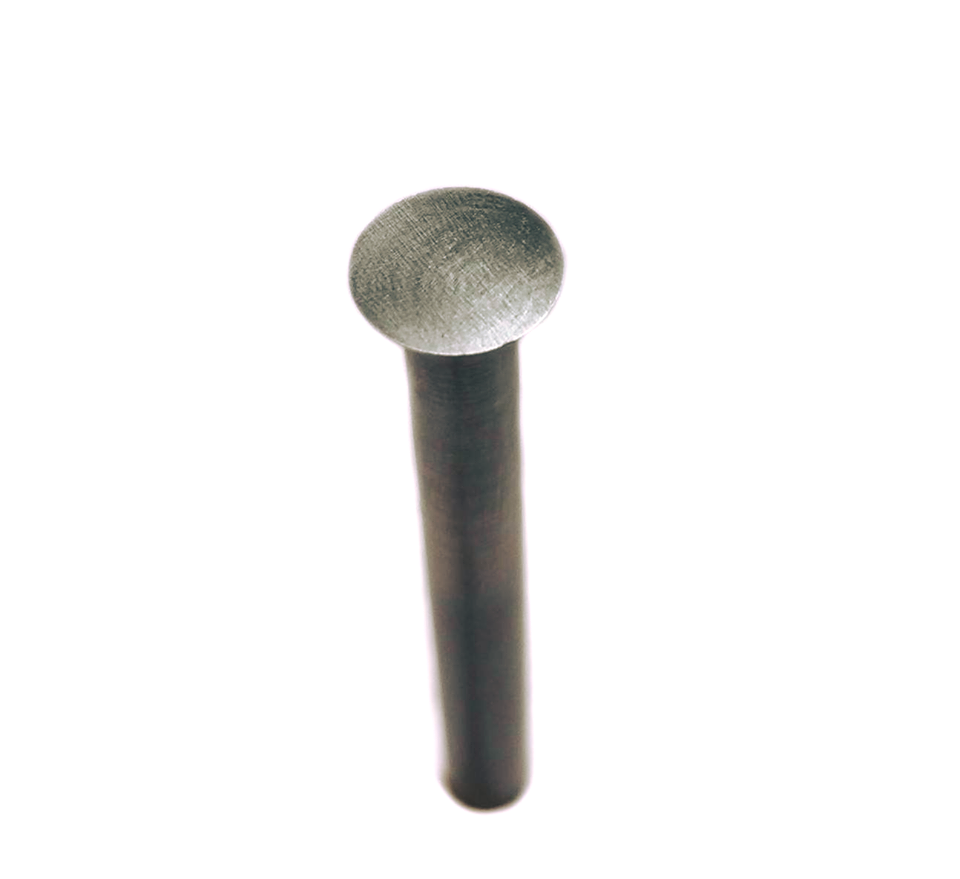

  • Conical Pins - 3

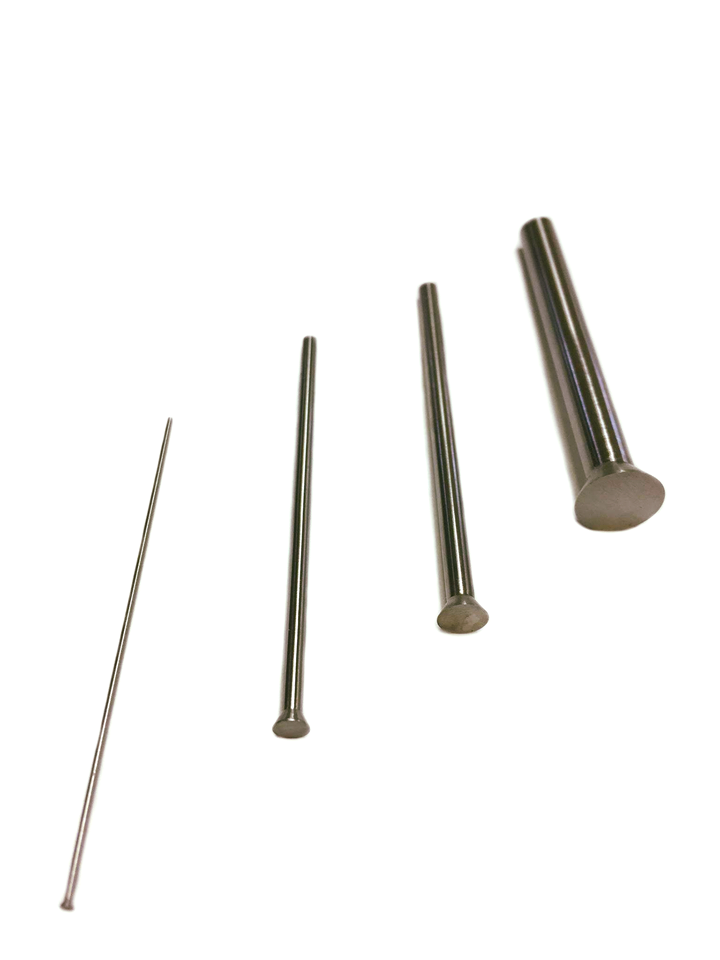

  • Conical Pins - 4

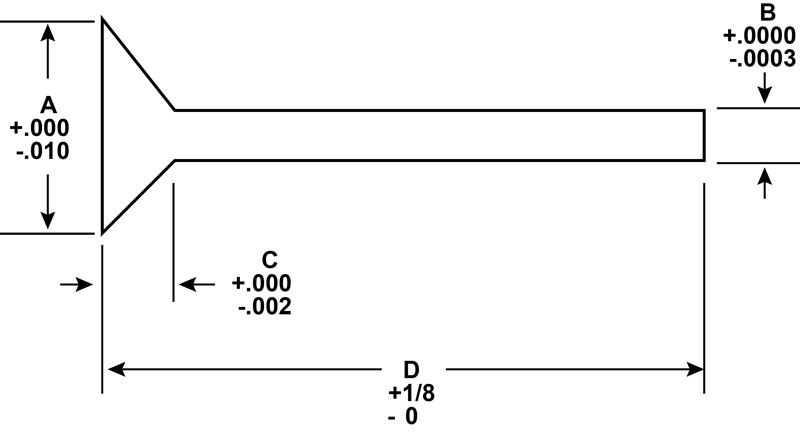

  • <!-Conical Pins Line Drawing->
JBF National conical ejector pins(countersunk head ejector pins) are manufactured using the highest quality certified H-13 die steel. These pins have a 45 R/C core hardness, 68/74 R/C surface hardness, carry a g6 tolerance, and are laser inspected throughout the entire manufacturing process. Due to their smaller head when compared to typical cylindrical head ejector pins, conical pins are great for applications with head dimension issues. Please see component diagram below.
1 - 100 of 125 | Results Per Page | View | Unit of Measure
1 2
Request Information Compare Items Search by Specification
Clear Filter

Dimension A (in)

Dimension B (in)

Dimension C (in)

Item #

Dimension A

Dimension B

Dimension C

Dimension D

Drawings

N/A 0.0378 in N/A 0.021 in N/A 0.02646 in N/A 2.5 in

N/A 0.0396 in N/A 0.022 in N/A 0.02772 in N/A 2.5 in

N/A 0.0414 in N/A 0.023 in N/A 0.02898 in N/A 2.5 in

N/A 0.0432 in N/A 0.024 in N/A 0.03024 in N/A 2.5 in

N/A 0.045 in N/A 0.025 in N/A 0.0315 in N/A 2.5 in

N/A 0.0486 in N/A 0.027 in N/A 0.03402 in N/A 2.5 in

N/A 0.0504 in N/A 0.028 in N/A 0.03528 in N/A 2.5 in

N/A 0.054 in N/A 0.03 in N/A 0.0378 in N/A 2.5 in

N/A 0.0558 in N/A 0.031 in N/A 0.03906 in N/A 2.5 in

N/A 0.0576 in N/A 0.032 in N/A 0.04032 in N/A 2.5 in

N/A 0.0594 in N/A 0.033 in N/A 0.04158 in N/A 2.5 in

N/A 0.0612 in N/A 0.034 in N/A 0.04284 in N/A 2.5 in

N/A 0.063 in N/A 0.035 in N/A 0.0441 in N/A 2.5 in

N/A 0.0648 in N/A 0.036 in N/A 0.04536 in N/A 2.5 in

N/A 0.0666 in N/A 0.037 in N/A 0.04662 in N/A 2.5 in

N/A 0.0684 in N/A 0.038 in N/A 0.04788 in N/A 2.5 in

N/A 0.0702 in N/A 0.039 in N/A 0.04914 in N/A 2.5 in

N/A 0.072 in N/A 0.04 in N/A 0.0504 in N/A 2.5 in

N/A 0.0738 in N/A 0.041 in N/A 0.05166 in N/A 2.5 in

N/A 0.0756 in N/A 0.042 in N/A 0.05292 in N/A 2.5 in

N/A 0.0774 in N/A 0.043 in N/A 0.05418 in N/A 2.5 in

N/A 0.0792 in N/A 0.044 in N/A 0.05544 in N/A 2.5 in

N/A 0.081 in N/A 0.045 in N/A 0.0567 in N/A 2.5 in

N/A 0.0828 in N/A 0.046 in N/A 0.05796 in N/A 2.5 in

N/A 0.0846 in N/A 0.047 in N/A 0.05922 in N/A 2.5 in

N/A 0.0864 in N/A 0.048 in N/A 0.06048 in N/A 2.5 in

N/A 0.0882 in N/A 0.049 in N/A 0.06174 in N/A 2.5 in

N/A 0.09 in N/A 0.05 in N/A 0.063 in N/A 2.5 in

N/A 0.0918 in N/A 0.051 in N/A 0.06426 in N/A 2.5 in

N/A 0.0936 in N/A 0.052 in N/A 0.06552 in N/A 2.5 in

N/A 0.0954 in N/A 0.053 in N/A 0.06678 in N/A 2.5 in

N/A 0.0972 in N/A 0.054 in N/A 0.06804 in N/A 2.5 in

N/A 0.099 in N/A 0.055 in N/A 0.0693 in N/A 2.5 in

N/A 0.1008 in N/A 0.056 in N/A 0.07056 in N/A 2.5 in

N/A 0.1044 in N/A 0.058 in N/A 0.07308 in N/A 2.5 in

N/A 0.1062 in N/A 0.059 in N/A 0.07434 in N/A 2.5 in

N/A 0.108 in N/A 0.06 in N/A 0.0756 in N/A 2.5 in

N/A 0.1098 in N/A 0.061 in N/A 0.07686 in N/A 2.5 in

N/A 0.1116 in N/A 0.062 in N/A 0.07812 in N/A 2.5 in

N/A 0.1134 in N/A 0.063 in N/A 0.07938 in N/A 2.5 in

N/A 0.1152 in N/A 0.064 in N/A 0.08064 in N/A 2.5 in

N/A 0.117 in N/A 0.065 in N/A 0.0819 in N/A 2.5 in

N/A 0.1188 in N/A 0.066 in N/A 0.08316 in N/A 2.5 in

N/A 0.1206 in N/A 0.067 in N/A 0.08442 in N/A 2.5 in

N/A 0.1224 in N/A 0.068 in N/A 0.08568 in N/A 2.5 in

N/A 0.1242 in N/A 0.069 in N/A 0.08694 in N/A 2.5 in

N/A 0.1278 in N/A 0.071 in N/A 0.08946 in N/A 2.5 in

N/A 0.1296 in N/A 0.072 in N/A 0.09072 in N/A 2.5 in

N/A 0.1314 in N/A 0.073 in N/A 0.09198 in N/A 2.5 in

N/A 0.1332 in N/A 0.074 in N/A 0.09324 in N/A 2.5 in

N/A 0.135 in N/A 0.075 in N/A 0.0945 in N/A 2.5 in

N/A 0.1368 in N/A 0.076 in N/A 0.09576 in N/A 2.5 in

N/A 0.1386 in N/A 0.077 in N/A 0.09702 in N/A 2.5 in

N/A 0.1404 in N/A 0.078 in N/A 0.09828 in N/A 2.5 in

N/A 0.144 in N/A 0.08 in N/A 0.1008 in N/A 2.5 in

N/A 0.1458 in N/A 0.081 in N/A 0.10206 in N/A 2.5 in

N/A 0.1476 in N/A 0.082 in N/A 0.10332 in N/A 2.5 in

N/A 0.1494 in N/A 0.083 in N/A 0.10458 in N/A 2.5 in

N/A 0.153 in N/A 0.085 in N/A 0.1071 in N/A 2.5 in

N/A 0.1548 in N/A 0.086 in N/A 0.10836 in N/A 2.5 in

N/A 0.1566 in N/A 0.087 in N/A 0.10962 in N/A 2.5 in

N/A 0.1584 in N/A 0.088 in N/A 0.11088 in N/A 2.5 in

N/A 0.1602 in N/A 0.089 in N/A 0.11214 in N/A 2.5 in

N/A 0.162 in N/A 0.09 in N/A 0.1134 in N/A 2.5 in

N/A 0.165 in N/A 0.092 in N/A 0.1155 in N/A 2.5 in

N/A 0.1674 in N/A 0.093 in N/A 0.11718 in N/A 2.5 in

N/A 0.171 in N/A 0.095 in N/A 0.1197 in N/A 2.5 in

N/A 0.1728 in N/A 0.096 in N/A 0.12096 in N/A 2.5 in

N/A 0.1746 in N/A 0.097 in N/A 0.12222 in N/A 2.5 in

N/A 0.1764 in N/A 0.098 in N/A 0.12348 in N/A 2.5 in

N/A 0.1782 in N/A 0.099 in N/A 0.12474 in N/A 2.5 in

N/A 0.1944 in N/A 0.108 in N/A 0.13608 in N/A 2.5 in

N/A 0.1962 in N/A 0.109 in N/A 0.13734 in N/A 2.5 in

N/A 0.198 in N/A 0.11 in N/A 0.1386 in N/A 2.5 in

N/A 0.1998 in N/A 0.111 in N/A 0.13986 in N/A 2.5 in

N/A 0.2142 in N/A 0.119 in N/A 0.14994 in N/A 2.5 in

N/A 0.2196 in N/A 0.122 in N/A 0.15372 in N/A 2.5 in

N/A 0.2232 in N/A 0.124 in N/A 0.15624 in N/A 2.5 in

N/A 0.225 in N/A 0.125 in N/A 0.1575 in N/A 2.5 in

N/A 0.2268 in N/A 0.126 in N/A 0.15876 in N/A 2.5 in

N/A 0.2286 in N/A 0.127 in N/A 0.16002 in N/A 2.5 in

N/A 0.2304 in N/A 0.128 in N/A 0.16128 in N/A 2.5 in

N/A 0.2322 in N/A 0.129 in N/A 0.16254 in N/A 2.5 in

N/A 0.234 in N/A 0.13 in N/A 0.1638 in N/A 2.5 in

N/A 0.2358 in N/A 0.131 in N/A 0.16506 in N/A 2.5 in

N/A 0.2376 in N/A 0.132 in N/A 0.16632 in N/A 2.5 in

N/A 0.2394 in N/A 0.133 in N/A 0.16758 in N/A 2.5 in

N/A 0.2412 in N/A 0.134 in N/A 0.16884 in N/A 2.5 in

N/A 0.243 in N/A 0.135 in N/A 0.1701 in N/A 2.5 in

N/A 0.2448 in N/A 0.136 in N/A 0.17136 in N/A 2.5 in

N/A 0.2466 in N/A 0.137 in N/A 0.17262 in N/A 2.5 in

N/A 0.2484 in N/A 0.138 in N/A 0.17388 in N/A 2.5 in

N/A 0.2502 in N/A 0.139 in N/A 0.17514 in N/A 2.5 in

N/A 0.252 in N/A 0.14 in N/A 0.1764 in N/A 2.5 in

N/A 0.261 in N/A 0.145 in N/A 0.1827 in N/A 2.5 in

N/A 0.2628 in N/A 0.146 in N/A 0.18396 in N/A 2.5 in

N/A 0.2646 in N/A 0.147 in N/A 0.18522 in N/A 2.5 in

N/A 0.27 in N/A 0.15 in N/A 0.189 in N/A 2.5 in

N/A 0.2718 in N/A 0.151 in N/A 0.19026 in N/A 2.5 in

N/A 0.2736 in N/A 0.152 in N/A 0.19152 in N/A 2.5 in
