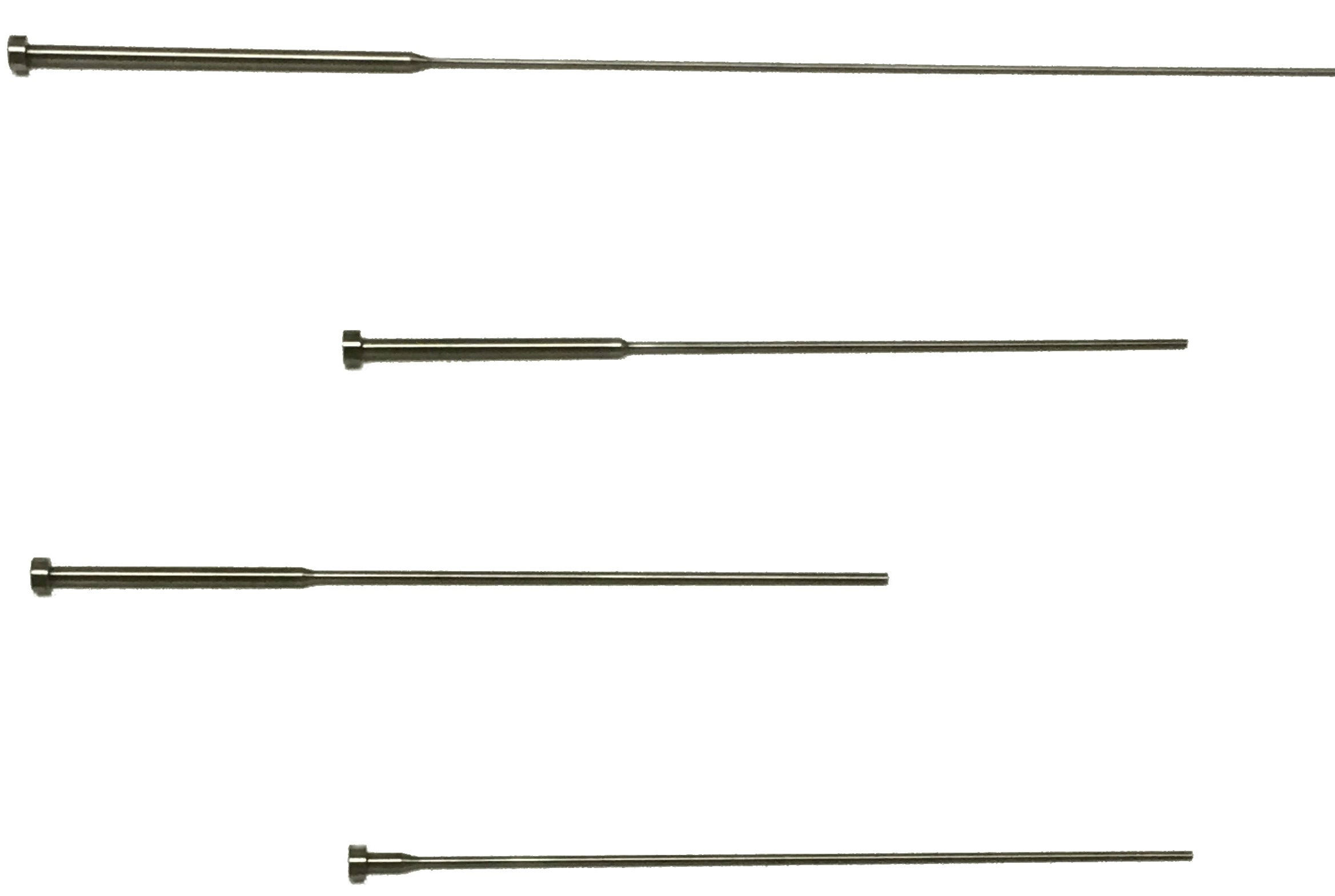

Shoulder Style Nitride Ejector Pins On JBF National

JBF National nitride shoulder style ejector pins are manufactured using certified H-13 die steel and come completely nitride processed. These ejector pins feature a head that is both hot forged and annealed, in addition to being ground finished under the head for maximum seating. Our ejector pins have a 45 R/C core hardness, 68/74 R/C surface hardness and are laser inspected throughout the entire manufacturing process.

1 - 54 of 54 | Results Per Page | View | Unit of Measure

Request Information Compare Items Search by Specification

Clear Filter

Length (in)

Dimension G (in)

Dimension S (in)

Item #	Length	Dimension G	Dimension S	Dimension H	Dimension K

HEP3500	N/A 6 in	N/A 1/32 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3501	N/A 6 in	N/A 1/32 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3502	N/A 6 in	N/A 1/32 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3503	N/A 6 in	N/A 1/32 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in
HEP3504	N/A 6 in	N/A 3/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3505	N/A 10 in	N/A 3/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3506	N/A 10 in	N/A 3/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3507	N/A 14 in	N/A 3/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3508	N/A 6 in	N/A 3/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3509	N/A 10 in	N/A 3/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3510	N/A 10 in	N/A 3/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3511	N/A 14 in	N/A 3/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3512	N/A 10 in	N/A 3/64 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3513	N/A 10 in	N/A 3/64 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in
HEP3514	N/A 6 in	N/A 1/16 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3515	N/A 10 in	N/A 1/16 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3516	N/A 10 in	N/A 1/16 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3517	N/A 14 in	N/A 1/16 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3518	N/A 6 in	N/A 1/16 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3519	N/A 10 in	N/A 1/16 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3520	N/A 10 in	N/A 1/16 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3521	N/A 14 in	N/A 1/16 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3522	N/A 10 in	N/A 1/16 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3523	N/A 10 in	N/A 1/16 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in
HEP3524	N/A 6 in	N/A 5/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3525	N/A 10 in	N/A 5/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3526	N/A 10 in	N/A 5/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3527	N/A 14 in	N/A 5/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3528	N/A 6 in	N/A 5/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3529	N/A 10 in	N/A 5/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3530	N/A 10 in	N/A 5/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3531	N/A 14 in	N/A 5/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3532	N/A 10 in	N/A 5/64 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3533	N/A 10 in	N/A 5/64 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in
HEP3534	N/A 6 in	N/A 3/32 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3535	N/A 10 in	N/A 3/32 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3536	N/A 10 in	N/A 3/32 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3537	N/A 14 in	N/A 3/32 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3538	N/A 6 in	N/A 3/32 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3539	N/A 10 in	N/A 3/32 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3540	N/A 10 in	N/A 3/32 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3541	N/A 14 in	N/A 3/32 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3542	N/A 10 in	N/A 3/32 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3543	N/A 10 in	N/A 3/32 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in
HEP3544	N/A 6 in	N/A 7/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3545	N/A 10 in	N/A 7/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3546	N/A 10 in	N/A 7/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3547	N/A 14 in	N/A 7/64 in	N/A 1/2 in	N/A 1/4 in	N/A 1/8 in
HEP3548	N/A 6 in	N/A 7/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3549	N/A 10 in	N/A 7/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3550	N/A 10 in	N/A 7/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3551	N/A 14 in	N/A 7/64 in	N/A 2 in	N/A 1/4 in	N/A 1/8 in
HEP3552	N/A 10 in	N/A 7/64 in	N/A 3 in	N/A 1/4 in	N/A 1/8 in
HEP3553	N/A 10 in	N/A 7/64 in	N/A 4 in	N/A 1/4 in	N/A 1/8 in

1 - 54 of 54 | Results Per Page | View | Unit of Measure

Catalog

Length (in)

Dimension G (in)

Dimension S (in)

Item #

Length

Dimension G

Dimension S

Dimension H

Dimension K

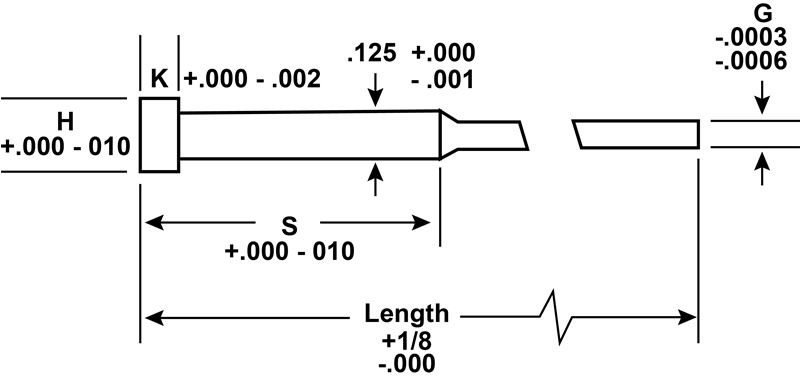

Drawings
