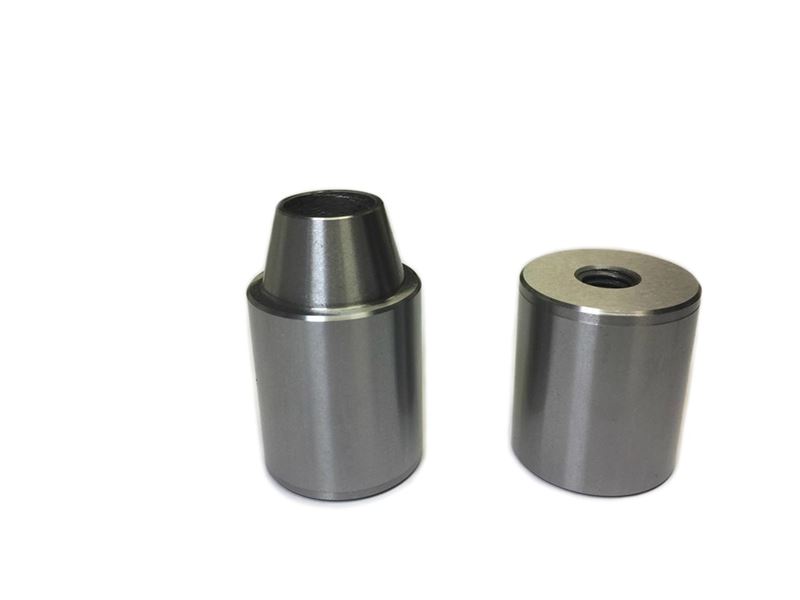

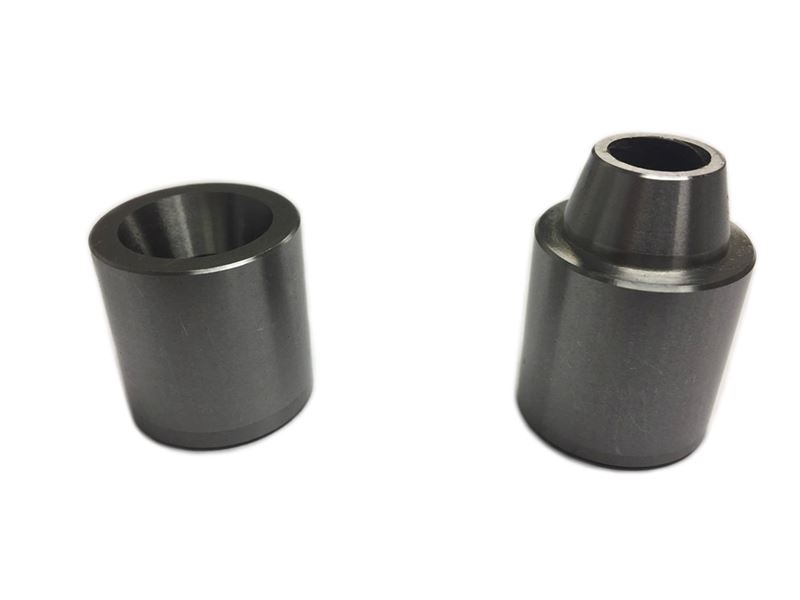

• Taper Locks
  • Taper Locks - 3
  • Taper Locks - 4

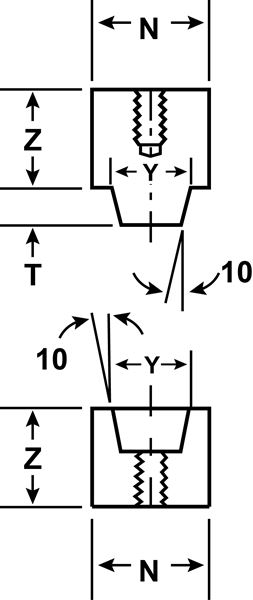

  • <!-Taper Locks Line Drawing->
1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Dimension N (in)

Dimension Y (in)

Dimension T (in)

Thread Size

Dimension Z (in)

Item #

Dimension N

Dimension Y

Dimension T

Thread Size

Dimension Z

Drawings

N/A 1/2 in N/A 0.312 in N/A 0.25 in N/A 10-24 N/A 11/16 in

N/A 1/2 in N/A 0.312 in N/A 0.25 in N/A 10-24 N/A 7/8 in

N/A 1/2 in N/A 0.312 in N/A 0.25 in N/A 10-24 N/A 1-3/16 in

N/A 1/2 in N/A 0.312 in N/A 0.25 in N/A 10-24 N/A 1-3/8 in

N/A 3/4 in N/A 0.5 in N/A 0.281 in N/A 1/4-20 N/A 11/16 in

N/A 3/4 in N/A 0.5 in N/A 0.281 in N/A 1/4-20 N/A 7/8 in

N/A 3/4 in N/A 0.5 in N/A 0.281 in N/A 1/4-20 N/A 1-3/16 in

N/A 3/4 in N/A 0.5 in N/A 0.281 in N/A 1/4-20 N/A 1-3/8 in

N/A 1 in N/A 0.625 in N/A 0.343 in N/A 1/4-20 N/A 11/16 in

N/A 1 in N/A 0.625 in N/A 0.343 in N/A 1/4-20 N/A 7/8 in

N/A 1 in N/A 0.625 in N/A 0.343 in N/A 1/4-20 N/A 1-3/16 in

N/A 1 in N/A 0.625 in N/A 0.343 in N/A 1/4-20 N/A 1-3/8 in

N/A 1-1/2 in N/A 1.000 in N/A 0.5 in N/A 5/16-18 N/A 1-1/8 in

N/A 1-1/2 in N/A 1.000 in N/A 0.5 in N/A 5/16-18 N/A 1-3/8 in

N/A 1-1/2 in N/A 1.000 in N/A 0.5 in N/A 5/16-18 N/A 1-5/8 in

N/A 2 in N/A 1.500 in N/A 0.5 in N/A 5/16-18 N/A 1-1/8 in

N/A 2 in N/A 1.500 in N/A 0.5 in N/A 5/16-18 N/A 1-3/8 in

N/A 2 in N/A 1.500 in N/A 0.5 in N/A 5/16-18 N/A 1-5/8 in

1 - 18 of 18 | Results Per Page | View | Unit of Measure
1
