• One Mounting Hole Rectangular-Rounded Sides Internal Thread Pull Handles

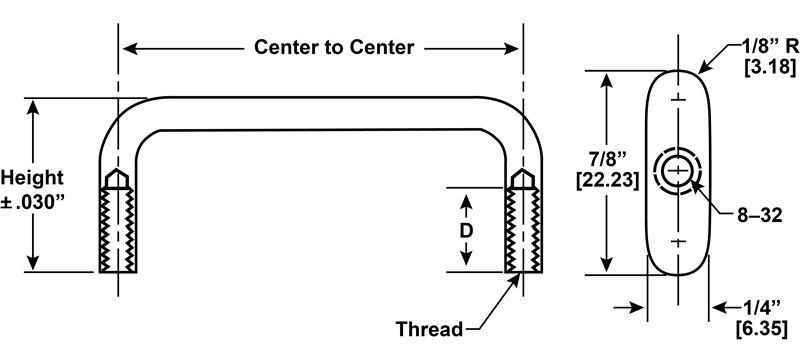

  • <!-One Mounting Holes Rectangular Round Line Drawing->
JBF National's rectangular pull handle is manufactured from the highest quality extruded aluminum and features internal thread mounting. The flat rectangular shape of this pull handle with its rounded sides ensures positive hand grip and comfort every time. Contact a JBF National sales engineer today for more information.
1 - 42 of 42 | Results Per Page | View | Unit of Measure
1
Request Information Compare Items Search by Specification
Clear Filter

Overall Height (H) (in)

Overall Height (H) (mm)

Center to Center (C to C) (in)

Center to Center (C to C) (mm)

Item #

Overall Height (H)

Center to Center (C to C)

Thread Size

Radius

Drawings

N/A 1.375 in34.93 mm N/A 2-1/2 in63.50 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 3 in76.20 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 4 in101.60 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 4-1/2 in114.30 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 5 in127.00 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 6 in152.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 7 in177.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 8 in203.2 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 9 in228.6 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 10 in254 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 11 in279.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.375 in34.93 mm N/A 12 in304.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 3 in76.20 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 4 in101.60 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 5 in127.00 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 6 in152.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 7 in177.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 8 in203.2 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 9 in228.6 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 10 in254 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 11 in279.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1-1/2 in38.10 mm N/A 12 in304.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 3 in76.20 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 4 in101.60 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 5 in127.00 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 6 in152.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 7 in177.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 8 in203.2 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 9 in228.6 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 10 in254 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 11 in279.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 1.75 in44.45 mm N/A 12 in304.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 3 in76.20 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 4 in101.60 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 5 in127.00 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 6 in152.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 7 in177.8 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 8 in203.2 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 9 in228.6 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 10 in254 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 11 in279.4 mm N/A 8-32 N/A 1/2 in12.7 mm

N/A 2 in50.80 mm N/A 12 in304.8 mm N/A 8-32 N/A 1/2 in12.7 mm
