Pull Knob Non Locking Nose Imperial Retractable Plungers without Nylon Patch On JBF National

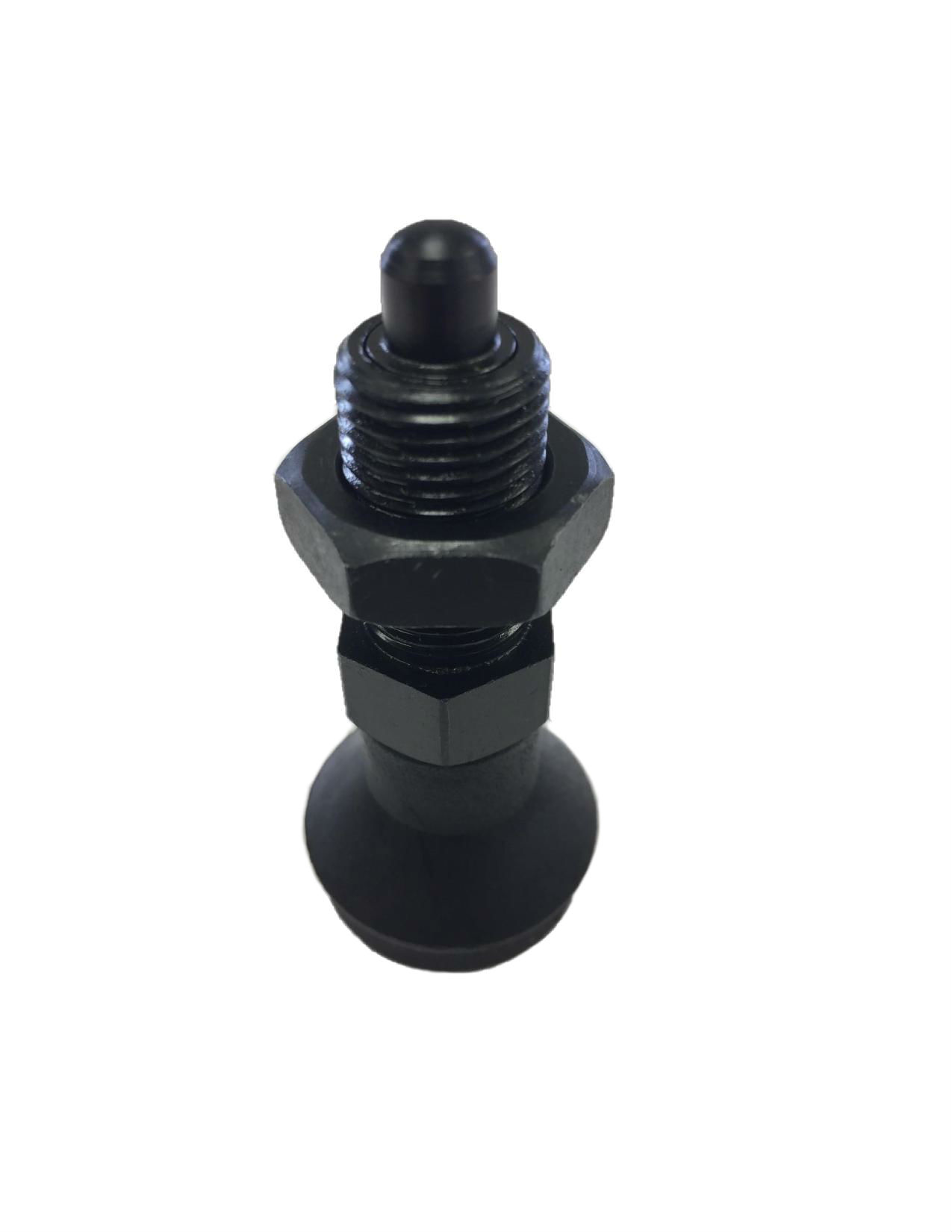

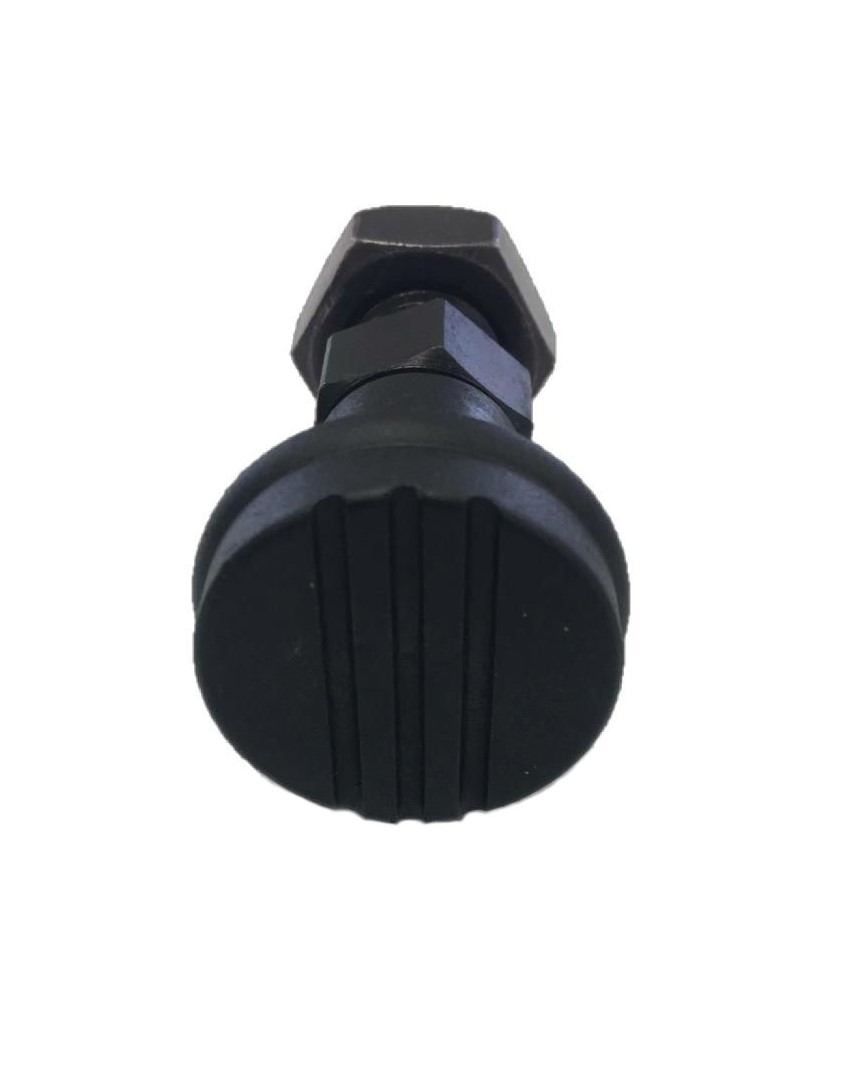

The body and threaded stud of this retractable plunger (also known as an indexing plunger) are manufactured from the highest quality steel with a pull knob comprised of an ultra-tough plastic. Inch and metric sizes available.

1 - 6 of 6 | Results Per Page | View | Unit of Measure

Request Information Compare Items

Item #	Thread (A)	Thread Length (C)	Body Length (B)	Overall Length (OAL)	Pin Diameter (E)	Pin Length (D)

IPG-118	N/A 5/8-11	N/A 0.9055 in	N/A 2.60 in	N/A 2.9134 in	N/A 0.3150 in	N/A 0.3150 in
IPG-119	N/A 5/8-11	N/A 0.9055 in	N/A 2.60 in	N/A 2.9134 in	N/A 0.3150 in	N/A 0.3150 in
IPG-120	N/A 3/8-24	N/A 0.5906 in	N/A 1.70 in	N/A 1.8504 in	N/A 0.1969 in	N/A 0.1969 in
IPG-121	N/A 3/8-24	N/A 0.5906 in	N/A 1.70 in	N/A 1.8504 in	N/A 0.1969 in	N/A 0.1969 in
IPG-122	N/A 1/2-13	N/A 0.6693 in	N/A 2.00 in	N/A 2.2047 in	N/A 0.2362 in	N/A 0.2362 in
IPG-123	N/A 1/2-13	N/A 0.6693 in	N/A 2.00 in	N/A 2.2047 in	N/A 0.2362 in	N/A 0.2362 in
